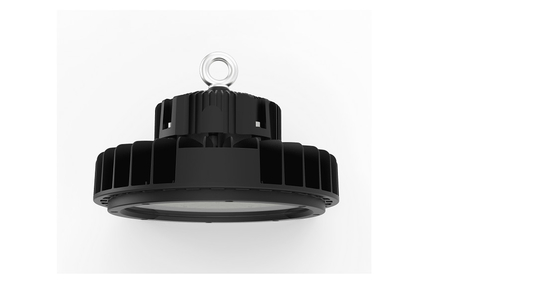

Name: SMD2835 LED High Bay Light IP65 Aluminium 140LPW 200W For Logistic Centre
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-HB200-XGXP
Availability: InStock

Home Products LED Highbay Light

SMD2835 LED High Bay Light IP65 Aluminium 140LPW 200W For Logistic Centre

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS(OEM available)
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB200-XGXP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Please inquiry for latest price
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Input Voltage:	AC100~277v 50/60Hz	Driver:	Meanwell/Sosen
LED Source:	SMD2835(1w)	Power Factor:	0.95
CCT:	WW:3000±200K NW: 4000±200K DW:5700±200K CW: 6500±200K	Warranty:	5 Years
Highlight:	SMD3030 LED High Bay Light , 240W LED High Bay Light , 140LPW High Bay Light Fittings

140LPW 200W UFO LED High Bay Light IP65 Aluminium Housing

DUALRAYS HB4.5 Eco Version UFO High Light Spe.pdf

SMD2835 LED High Bay Light IP65 Aluminium 140LPW 200W For Logistic Centre 1

Options:

> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen;

> Controls and Dimming: 1-10V, DALI, Motion sensor,Daylight sensor,Zigbee and Emergency;

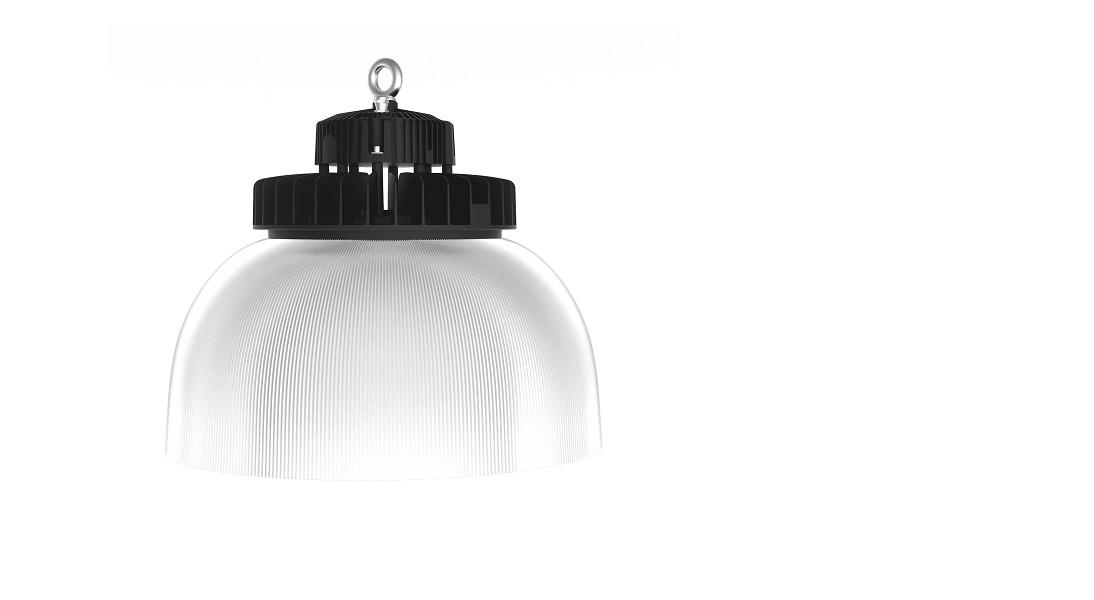

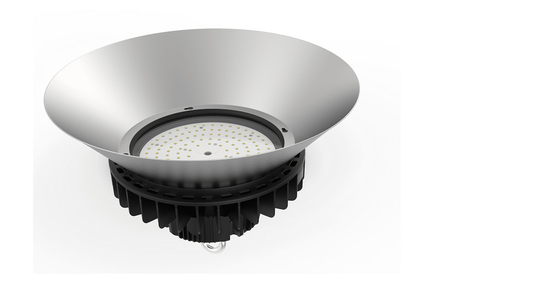

> Reflector : PC reflector / Al reflector;

> Lens : 60°/90° (with Pearl or Stripe Lens)/120° (without PC or Toughened Glass Cover) /140° (with Grille

Stripe PC Cover);

> Installation: Loop Hanging, Ceiling Mounting, Wall Mounting;

> Factories / Warehouses / Supermarket

> Exhibitions / Showrooms / Animal Farm

> Barns and Riding Halls / Logistic Center

> High Rooms and Halls / Stadium / Chemical Plant

> Traditional lamp replacement

Model No.	DR-HB100-EGXP	DR-HB150-EGXP	DR-HB200-EGXP	DR-HB240-EGXP	DR-HB300-EGXP
System Watts/W	100W	150W	200W	240W	300W
System Efficiency/LPW	140LPW
Lumen Output/lm	14.000±5%	21.000±5%	28.000±5%	33.600±5%	42.000±5%
Rated Input Voltage/V	AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source	SMD3030
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	60°/90°/120°/140°
UGR	<25
Surge Protection	3.75~4KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Meanwell HBG/ELG/HLG,Sosen
IP Rating	IP65
Dimming(Optional)	0/1-10V/DALI/Zigbee
Sensor(Optional)	Motion Sensor,Daylight Sensor
Emergency(Optional)	Available (30W @ 3Hrs for Standard)
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC (Toughened Glass Cover Optional)
Lifespan/hrs	70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)	Loop Hanging, Ceiling Mounting, Wall Mounting
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Character/Power	100W	150W	200W	240W	300W
A / mm	Ø280	Ø338	Ø400	Ø400	Ø440
B / mm	164	182	164	172	182

SMD2835 LED High Bay Light IP65 Aluminium 140LPW 200W For Logistic Centre 9

DALI Device
SMD2835 LED High Bay Light IP65 Aluminium 140LPW 200W For Logistic Centre 13

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

SMD2835 LED High Bay Light IP65 Aluminium 140LPW 200W For Logistic Centre 18

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-HB100-EGXP	4.2	355350165	4.9	1PCS/CTN
DR-HB150-EGXP	4.6	415410175	5.4	1PCS/CTN
DR-HB200-EGXP	4.8	475470195	5.6	1PCS/CTN
DR-HB240-EGXP	6.9	475470195	7.8	1PCS/CTN
DR-HB300-EGXP	7.5	500495195	8.8	1PCS/CTN

FAQ

Q1:Why is the housing of LED high bay light so big and heavy?
RE:Nowadays, a thinking in our lives is constantly expanding with the development of science and technology, but of course there is no exception in the production of high-power LED high bay lights. The production of high-power LED high bay lights is mainly based on high-power LED lamp beads and Mainly encapsulating integrated chips, combining the key points of energy-saving lamps, and the structure of high-power LED high bay lamps can also be made according to requirements.
Of course, in the use of high-power led industrial and mining lamps, our high-power led industrial and mining lamps have a compact shell size, which can make us feel safer in use. Of course, we are also taking good care of the heat dissipation requirements of high-power led industrial and mining lamps. Yes, it can make the use of high-power LED high bay lights not hot.

Q2: Why are UFO high bay so popular nowadays?

RE:The high-power led high bay light is made with professional optical design and has a good lighting effect. The number of light sources can be customized. The power requirement is 100 to 300 watts. It has a high-quality aluminum alloy light body and many colors. The light distribution is relatively wide, and it is more suitable for use in a large area. It can be the working environment of the disposal or the working place close to the disposal. For the use of the factory building, a separate lighting environment is required. Various types of reflectors can be used to achieve good beam effects.

SMD2835 LED High Bay Light IP65 Aluminium 140LPW 200W For Logistic Centre 25
