| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS(OEM available) |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-HB200-CGXP |
| Minimum Order Quantity: | 1pcs for Sample Order welcome |
|---|---|
| Price: | Please inquiry for updated price |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 Bussiness Day |
| Payment Terms: | L/C, T/T, Western Union, paypal |
| Supply Ability: | 50000PCS/Month |
| Input Voltage: | AC100~277v 50/60Hz | Driver: | Dualrays Built-in |
|---|---|---|---|
| LED Source: | SMD3030 | CRI: | >70Ra/>80Ra |
| Power Factor: | 0.95 | CCT: | WW:3000±200K NW: 4000±200K DW:5700±200K CW: 6500±200K |
| Life Span: | >50,000 H | Guarantee: | 5 Years |
| Material: | Die-Cast Aluminum + Tempered Glass/PC | Package: | Normal Export Carton Box |
| High Light: | 140LWP High Bay Led Bulb,200W High Bay Led Bulb,SMD3030 Led High Bay Lamp |
||

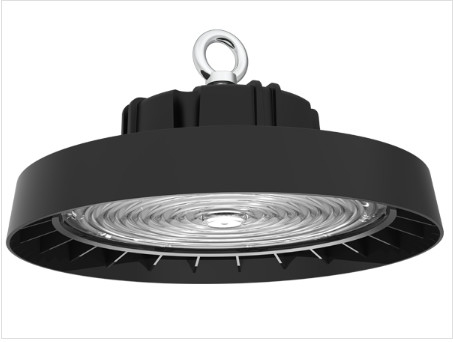

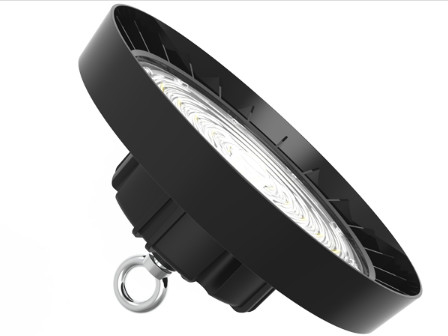

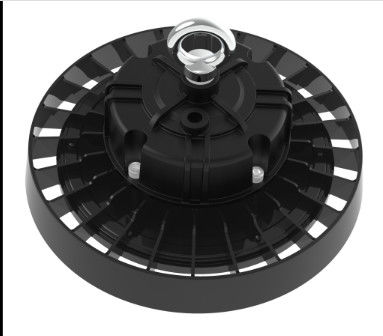

LED UFO high bay light 200W 140LWP IP65 excellent heat dissipation
|
Model No.
|
DR-HB100-CGXP | DR-HB150-CGXP | DR-HB200-CGXP | DR-HB240-CGXP |
|
System Watts/W
|
100W | 150W | 200W | 240W |
|
System Efficiency/LPW
|
140LPW | |||
|
Lumen Output/lm
|
14.000±5% | 21.000±5% | 28.000±5% | 33.600±5% |
|
Rated Input Voltage/V
|
AC100~277V, 50/60Hz | |||
|
LEDs Light Source
|
SMD3030 | |||
|
SDCM
|
<5 | |||
|
CCT/K
|
5000K for Standard (3000K/4000K/5700K/6500K Optional) | |||
|
CRI/Ra
|
>70Ra (>80Ra for Option) | |||
|
Power Factor
|
>0.95 | |||
|
THD
|
<10% | |||
|
Beam Angle(Optional)
|
60°/90°/120° | |||
|
UGR
|
<25 | |||
|
Surge Protection
|
3.75~4KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional | |||
|
LED Driver
|
DUALRAYS Own-developed High PF Non-isolated Driver | |||
|
IP Rating
|
IP65 | |||
|
Dimming(Optional)
|
0/1-10V/Zigbee | |||
|
Sensor(Optional)
|
Motion Sensor,Daylight Sensor | |||
|
Emergency(Optional)
|
Available (30W @ 3Hrs for Standard) | |||
|
Protection Class
|
ClassⅠ | |||
|
Finishing Color(Optional)
|
Black RAL9017(Standard) / White RAL9016 Optional | |||
|
Material
|
Aluminum+PC (Toughened Glass Cover Optional) | |||
|
Lifespan/hrs
|
60.000 Hrs (Ta=30℃@L70) | |||
|
Operation Temp/℃
|
40°C to + 50°C(-40°F to 122°F) | |||
|
Storage Temp/℃
|
- 40°C to + 65°C(-40°F to 149°F) | |||
|
Installation(Optional)
|
Loop Hanging, Ceiling Mounting, Wall Mounting | |||
|
Certificate
|
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available | |||
|
Character/Power
|
100W
|
150W
|
200W
|
240W
|
|
|
A / mm
|
Φ250
|
Φ300
|
Φ345
|
Φ345
|
|
|
B / mm
|
178
|
181
|
183
|
183
|
|
Model No.
|
Net Weight/Kg
|
Outer Carton Size/mm
|
Gross Weight/Kg
|
QTY”/CTN
|
|
DR-HB100-CGXP
|
2.2
|
320*320*165
|
2.9
|
1PCS/CTN
|
|
DR-HB150-CGXP
|
2.4
|
355*350*165
|
3.1
|
1PCS/CTN
|
|
DR-HB200-CGXP
|
2.5
|
410*410*175
|
3.3
|
1PCS/CTN
|
|
DR-HB240-CGXP
|
2.9
|
410*410*175
|
3.8
|
1PCS/CTN
|
FAQ
Q1:What is a UFO high bay?
RE:Led high bay lights use imported high-power LED chips, and the lumen value per watt is more than 110LM, long life, low power consumption, life can be as long as 9 years, and it saves 80% than ordinary incandescent lamps. % Of electricity. And it has multiple color temperatures to choose from, which can better meet the requirements of different occasions. It has a large heat dissipation area, even in the hot summer, it can also dissipate heat well to ensure that its service life is not affected. This Led high bay light can be applied to any factory or large area, such as stadium, market, stage, etc. The ordinary Led industrial and mining lamp has been doing these businesses that benefit mankind more. An ordinary lamp, but with an extraordinary heart.
Q2:What are the advantages of UFO high bay?
RE:The LED high bay light has good stability, and the service life can reach 20,000 to 50,000 hours, which saves more energy than traditional light sources. Also, it is a green and environmentally friendly lamp, and the radiation emitted by it is very high. The damage to the glasses and skin is very small; its structure is very user-friendly, it is very simple to install, and it is very convenient to maintain.
