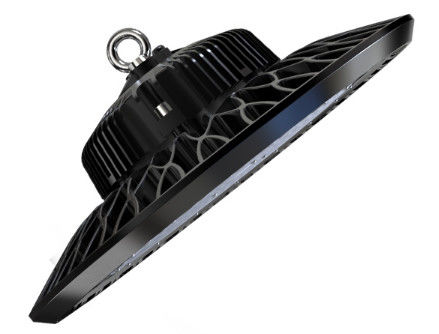

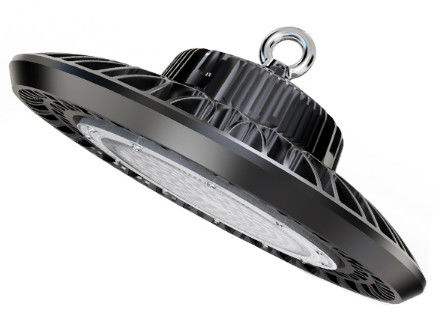

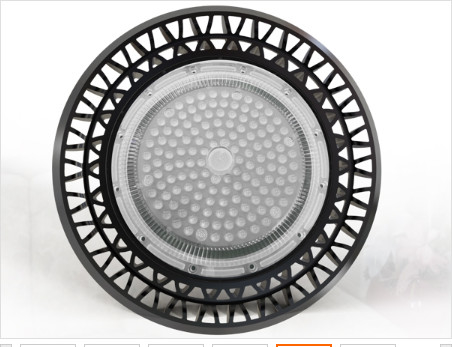

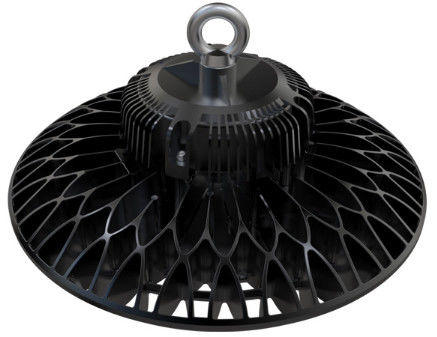

Led High Bay Lighting SMD3030 IP65 Aluminium 140LPW 300W

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS(OEM available)
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB300-EGXP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Please inquiry for latest price
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Input Voltage:	AC100~277v 50/60Hz	Driver:	Meanwell/Sosen
LED Source:	SMD3030	Power Factor:	0.95
CCT:	WW:3000±200K NW: 4000±200K DW:5700±200K CW: 6500±200K	Warranty:	5 Years
High Light:	300W Led High Bay Lighting , 140LPW Led High Bay Lighting , SMD3030 Aluminium High Bay Light

Led High Bay Lighting SMD3030 IP65 Aluminium 140LPW 300W 1

Options:

> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen;

> Controls and Dimming: 1-10V, DALI, Motion sensor,Daylight sensor,Zigbee and Emergency;

> Reflector : PC reflector / Al reflector;

> Lens : 60°/90° (with Pearl or Stripe Lens)/120° (without PC or Toughened Glass Cover) /140° (with Grille

Stripe PC Cover);

> Installation: Loop Hanging, Ceiling Mounting, Wall Mounting;

> Factories / Warehouses / Supermarket

> Exhibitions / Showrooms / Animal Farm

> Barns and Riding Halls / Logistic Center

> High Rooms and Halls / Stadium / Chemical Plant

> Traditional lamp replacement

Model No.	DR-HB100-EGXP	DR-HB150-EGXP	DR-HB200-EGXP	DR-HB240-EGXP	DR-HB300-EGXP
System Watts/W	100W	150W	200W	240W	300W
System Efficiency/LPW	140LPW
Lumen Output/lm	14.000±5%	21.000±5%	28.000±5%	33.600±5%	42.000±5%
Rated Input Voltage/V	AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source	SMD3030
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	60°/90°/120°/140°
UGR	<25
Surge Protection	3.75~4KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Meanwell HBG/ELG/HLG,Sosen
IP Rating	IP65
Dimming(Optional)	0/1-10V/DALI/Zigbee
Sensor(Optional)	Motion Sensor,Daylight Sensor
Emergency(Optional)	Available (30W @ 3Hrs for Standard)
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC (Toughened Glass Cover Optional)
Lifespan/hrs	70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)	Loop Hanging, Ceiling Mounting, Wall Mounting
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Character/Power	100W	150W	200W	240W	300W
A / mm	Ø280	Ø338	Ø400	Ø400	Ø440
B / mm	164	182	164	172	182

Led High Bay Lighting SMD3030 IP65 Aluminium 140LPW 300W 9

DALI Device
Led High Bay Lighting SMD3030 IP65 Aluminium 140LPW 300W 13

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

Led High Bay Lighting SMD3030 IP65 Aluminium 140LPW 300W 18

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-HB100-EGXP	4.2	355350165	4.9	1PCS/CTN
DR-HB150-EGXP	4.6	415410175	5.4	1PCS/CTN
DR-HB200-EGXP	4.8	475470195	5.6	1PCS/CTN
DR-HB240-EGXP	6.9	475470195	7.8	1PCS/CTN
DR-HB300-EGXP	7.5	500495195	8.8	1PCS/CTN
