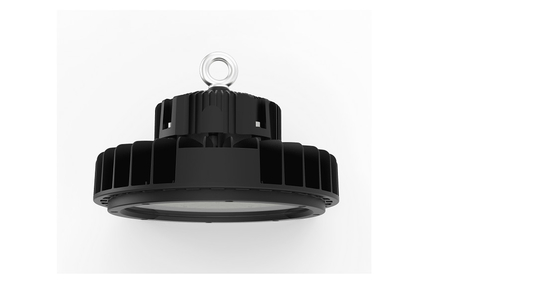

140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS(OEM available)
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB200-CGXP

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs for Sample Order welcome
Price:	Please inquiry for updated price
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union, paypal
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Input Voltage:	AC100~277v 50/60Hz	Driver:	Dualrays Built-in
LED Source:	SMD 2835	CRI:	>70Ra/>80Ra
Power Factor:	0.95	CCT:	WW:3000±200K NW: 4000±200K DW:5700±200K CW: 6500±200K
Life Span:	>50,000 H	Guarantee:	5 Years
Material:	Die-Cast Aluminum + Tempered Glass/PC	Package:	Normal Export Carton Box
High Light:	140LWP Led High Bay Lamp , 100W Led High Bay Lamp , 20KV Led High Bay Fixture

LED UFO high bay light Aluminum 100W 140LWP IP65 Sensor available

DUALRAYS HB4.5 Eco Version UFO High Light Spe.pdf

140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass 1

Options:

> Driver: DUALRAYS Non-isolated Driver;

> Controls and Dimming: 1-10V, Motion sensor,Daylight sensor,Zigbee and Emergency;

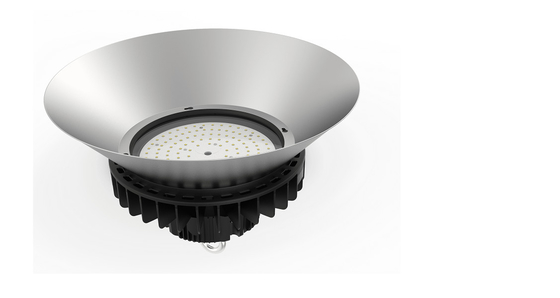

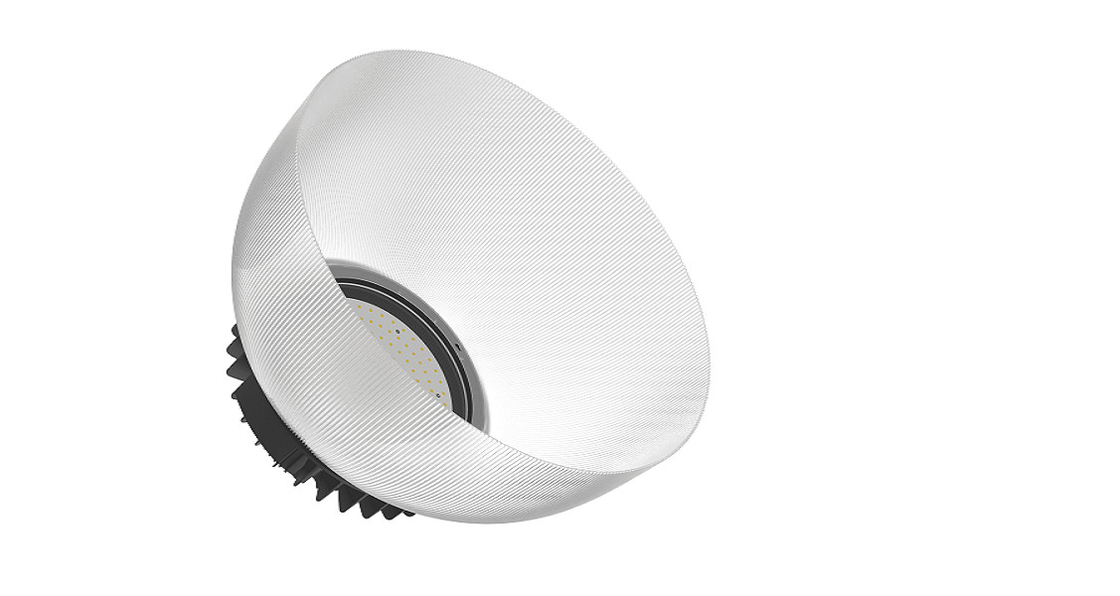

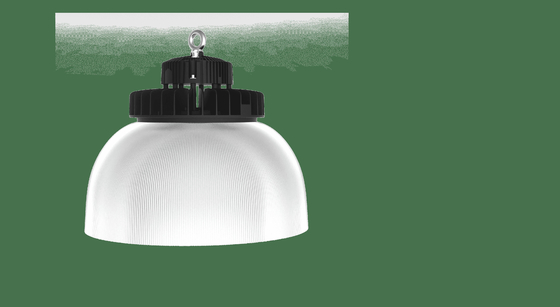

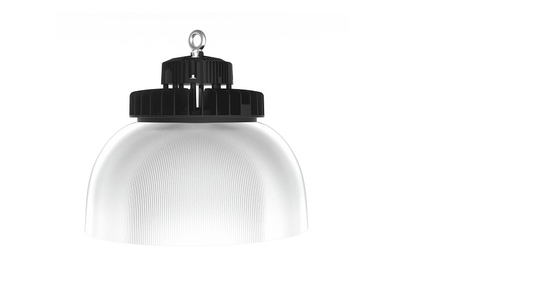

> Reflector : PC reflector / Al reflector;

> Lens : 60°/90° (with Pearl Lens)/120° (with Toughened Glass Cover) beam angle optional;

> Installation: Loop Hanging, Ceiling Mounting, Wall Mounting;

> Factories / Warehouses / Supermarket

> Exhibitions / Showrooms / Animal Farm

> Barns and Riding Halls / Logistic Center

> High Rooms and Halls / Stadium / Chemical Plant

> Traditional lamp replacement

Model No.	DR-HB100-CGXP	DR-HB150-CGXP	DR-HB200-CGXP	DR-HB240-CGXP
System Watts/W	100W	150W	200W	240W
System Efficiency/LPW	140LPW
Lumen Output/lm	14.000±5%	21.000±5%	28.000±5%	33.600±5%
Rated Input Voltage/V	AC100~277V, 50/60Hz
LEDs Light Source	SMD3030
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	60°/90°/120°
UGR	<25
Surge Protection	3.75~4KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	DUALRAYS Own-developed High PF Non-isolated Driver
IP Rating	IP65
Dimming(Optional)	0/1-10V/Zigbee
Sensor(Optional)	Motion Sensor,Daylight Sensor
Emergency(Optional)	Available (30W @ 3Hrs for Standard)
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC (Toughened Glass Cover Optional)
Lifespan/hrs	60.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)	Loop Hanging, Ceiling Mounting, Wall Mounting
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Character/Power	100W	150W	200W	240W
A / mm	Φ250	Φ300	Φ345	Φ345
B / mm	178	181	183	183

140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass 9

DALI Device
140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass 14

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass 19

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-HB100-CGXP	2.2	320320165	2.9	1PCS/CTN
DR-HB150-CGXP	2.4	355350165	3.1	1PCS/CTN
DR-HB200-CGXP	2.5	410410175	3.3	1PCS/CTN
DR-HB240-CGXP	2.9	410410175	3.8	1PCS/CTN
