| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-HB150-DG2 |
| Minimum Order Quantity: | 2PCS |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 Bussiness Day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000PCS/Month |
| Warranty: | 5 Years | Power: | 100W,150W,200W,240W,300W |
|---|---|---|---|
| CCT: | 3000K,4000K,5000K,5700K,6500K | LED Light Source: | SMD3030 |
| CIR: | >80Ra | Material: | Die-cast Aluminum |
| High Light: | RAL9017 UFO LED High Bay Light,30W UFO LED High Bay Light,140LPW Warehouse High Bay Light |
||

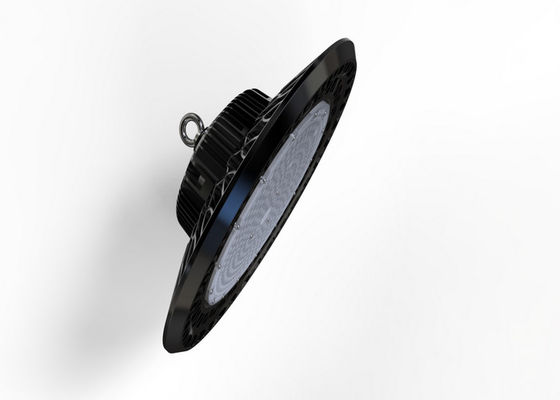

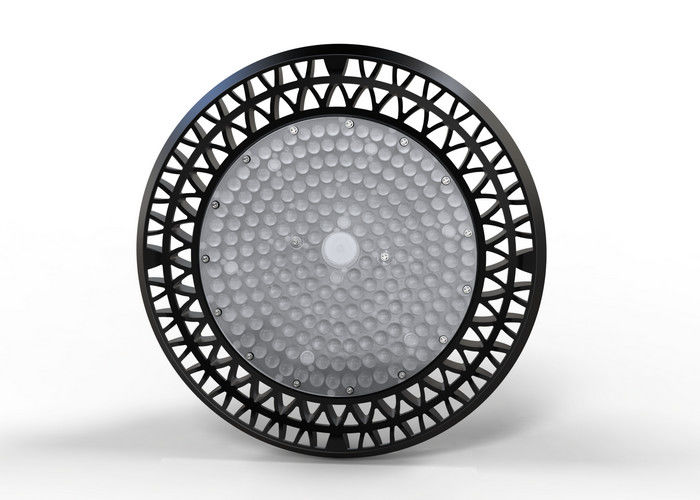

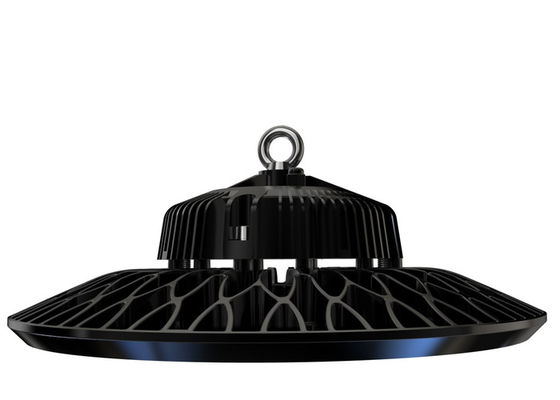

LED High Bay Lights With Motion Sensor 5 Years Warranty Ip65
UFO LED High Bay Features:
> 60°/90° (with Pearl or Stripe Lens)/120° (without PC or Toughened Glass Cover) /140° (with Grille Stripe PC Cover) beam angle optional;
> Corrosive Resistant Powder Coated Finish;
> Various intelligent control: 1-10V, DALI, Motion sensor,Daylight sensor,Zigbee and Emergency;
> Safety chain reserved for labor cost saving and double safety assurance;
> High Brightness LUMILEDS LUXEON SMD3030 2D LEDs, SOSEN/Meanwell HBG/ELG/HLG Round/Rectangle Driver.
| Item | Description |
| System Efficiency/LPW | 140LPW |
| Finishing Color(Optional) | Black RAL9017 / White RAL9016 |
| CRI/Ra | >80Ra (>70Ra for Option) |
| Emergency(Optional) | Available (30W @ 3Hrs for Standard) |
| LED Chips | SMD3030 PHILIP LUMILEDS LEDs |
| Lifespan/hrs | 70.000 Hrs (Ta=30℃@L70) |
| Certificate | CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available |
| Installaion |
Loop Hanging, Ceiling Mounting, Wall Mounting,pipe mounting; Customized supported for special projects; |
> Factories / Warehouses / Supermarket
> Exhibitions / Showrooms / Animal Farm
> Barns and Riding Halls / Logistic Center
> High Rooms and Halls / Stadium / Chemical Plant
> Traditional lamp replacement
|
Model No.
|
DR-HB100-EGXP | DR-HB150-EGXP | DR-HB200-EGXP | DR-HB240-EGXP | DR-HB300-EGXP |
|
System Watts/W
|
100W | 150W | 200W | 240W |
300W
|
|
System Efficiency/LPW
|
140LPW | ||||
|
Lumen Output/lm
|
14.000±5% | 21.000±5% | 28.000±5% | 33.600±5% | 42.000±5% |
|
Rated Input Voltage/V
|
AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional) | ||||
|
LEDs Light Source
|
SMD3030 | ||||
|
SDCM
|
<5 | ||||
|
CCT/K
|
5000K for Standard (3000K/4000K/5700K/6500K Optional) | ||||
|
CRI/Ra
|
>70Ra (>80Ra for Option) | ||||
|
Power Factor
|
>0.95 | ||||
|
THD
|
<10% | ||||
|
Beam Angle(Optional)
|
60°/90°/120°/140° | ||||
|
UGR
|
<25 | ||||
|
Surge Protection
|
3.75~4KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional | ||||
|
LED Driver
|
Meanwell HBG/ELG/HLG,Sosen | ||||
|
IP Rating
|
IP65 | ||||
|
Dimming(Optional)
|
0/1-10V/DALI/Zigbee | ||||
|
Sensor(Optional)
|
Motion Sensor,Daylight Sensor | ||||
|
Emergency(Optional)
|
Available (30W @ 3Hrs for Standard) | ||||
|
Protection Class
|
ClassⅠ | ||||
|
Finishing Color(Optional)
|
Black RAL9017(Standard) / White RAL9016 Optional | ||||
|
Material
|
Aluminum+PC (Toughened Glass Cover Optional) | ||||
|
Lifespan/hrs
|
70.000 Hrs (Ta=30℃@L70) | ||||
|
Operation Temp/℃
|
40°C to + 50°C(-40°F to 122°F) | ||||
|
Storage Temp/℃
|
- 40°C to + 65°C(-40°F to 149°F) | ||||
|
Installation(Optional)
|
Loop Hanging, Ceiling Mounting, Wall Mounting | ||||
|
Certificate
|
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available | ||||
|
Character/Power
|
100W
|
150W
|
200W
|
240W
|
|
|
A
|
Ø280mm
|
Ø338mm
|
Ø400mm
|
Ø400mm
|
|
|
B
|
164mm
|
182mm
|
164mm
|
172mm
|
Preparatory Work
1. Loosen the screw with a screwdriver,righten
the ring of the safety chain.
2.Tighten the screw and fix the cable with
screwdriver.
Loop Hanging
1. Take out the light fixture and match with the
hang or chain in the ceiling.
2.Connect the safety chain to a fixed support.
3. Connect the wires according to the wiring
diagram.
Adjustable surface mounting
1. Drill 2 holes in the ceiling or wall according
to the size of U-bracket.(Figure 1)
2.Tighten the light fixture with expand screws
or M10 bolts.
3. Connect the wires according to the wiring
diagram.
4. Loosen fixed bolts with screwdriver and
adjust the right position.
5. Fastern the fixed bolts.
RISK OF PERSONAL INJURY – READ and follow all WARNINGS and installation instructions.
Keep or give to the owner for future reference.
Risk of cuts: Wear gloves to prevent cuts or abrasions when removing from carton, handling, installing, and maintaining this product.
Risk of electric shock: This product must be installed in accordance with the applicable installation code by a person familiar with the
construction and operation of the product and the hazards involved.
Risk of Fire: Minimum 194°F supply conductors. Consult a qualifed electrician to ensure correct branch circuit conductor.
DUALRAYS® assumes no responsibility for claims arising out of improper or careless Installation or handling of this product.
