| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-HB150-DG2 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 Bussiness Day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000PCS/Month |
| Warranty: | 5 Years | Power: | 100W,150W,200W,240W,300W |
|---|---|---|---|
| CCT: | 5000K For Standard (3000K/4000K/5700K/6500K Optional) | LED Light Source: | SMD3030 |
| CIR: | >80Ra | Material: | Die-cast Aluminum |
| Highlight: | RCM UFO LED High Bay Light,SAA UFO LED High Bay Light,140LPW Led High Bay Fixture |
||

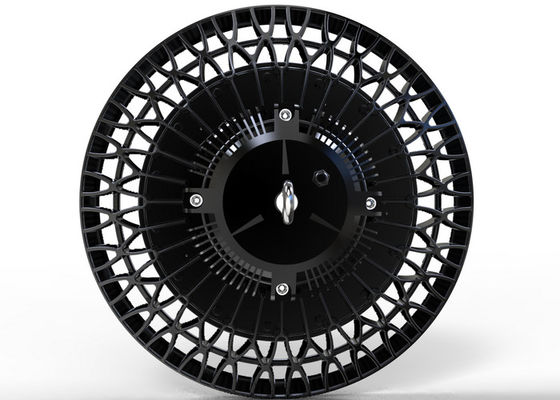

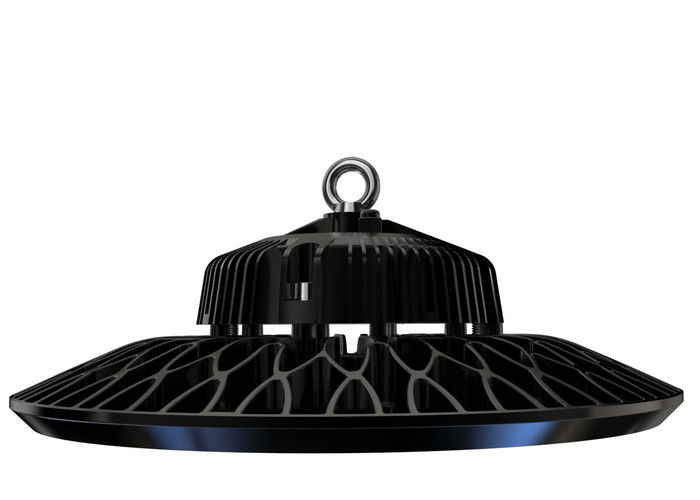

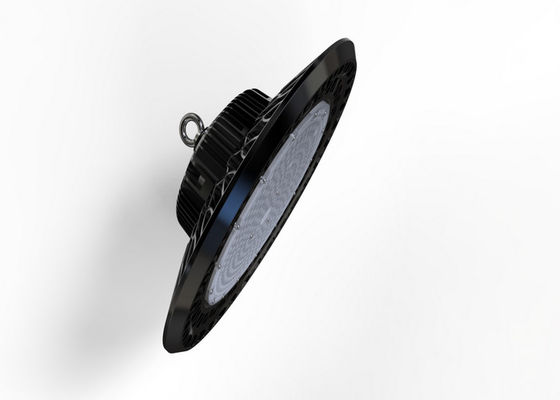

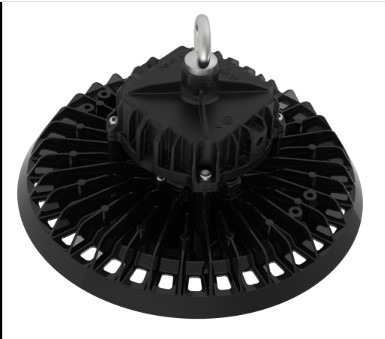

SAA Certificate 240W 300W RCM UFO LED High Bay Light 140LPW
UFO LED High Bay Features:
> Multiple Installations: Loop Hanging, Ceiling Mounting, Wall Mounting;
> Various intelligent control: 1-10V, DALI, Motion sensor,Daylight sensor,Zigbee and Emergency;
> Safety chain reserved for labor cost saving and double safety assurance;
> No UV or IR and completely mercury free;
> L70/B20 @ 70.000h;
> Customized supported for special projects;
| Item | Description |
| System Efficiency/LPW | 135-140LPW |
| Finishing Color(Optional) | Black RAL9017 / White RAL9016 |
| CRI/Ra | >80Ra (>70Ra for Option) |
| LED Driver | Meanwell HBG/ELG/HLG,Sosen |
| LED Chips | SMD3030 |
| Optic Lens | 60°/90°/120°/140° |
| Surge Protection | Exterior SPD 20KV Meanwell Optional |
| Installaion |
Loop Hanging, Ceiling Mounting, Wall Mounting |
> Factories / Warehouses / Supermarket
> Exhibitions / Showrooms / Animal Farm
> Barns and Riding Halls / Logistic Center
> High Rooms and Halls / Stadium / Chemical Plant
> Traditional lamp replacement
| Model No. | DR-HB100-DGXP | DR-HB150-DGXP | DR-HB200-DGXP | DR-HB240-DGXP |
| System Watts/W | 100W | 150W | 200W | 240W |
| System Efficiency/LPW | 140LPW / 160LPW Optional | |||
| Lumen Output/lm | 14.000 / 16.000±5% | 21.000 / 24.000±5% | 28.000 / 32.000±5% | 33.600 / 38.400±5% |
| Rated Input Voltage/V | AC100~277V, 50/60Hz | |||
| LEDs Light Source | SMD2835 | |||
| SDCM | <5 | |||
| CCT/K | 5000K for Standard (3000K/4000K/5700K/6500K Optional) | |||
| CRI/Ra | >70Ra (>80Ra for Option) | |||
| Power Factor | >0.95 | |||
| THD | <10% | |||
| Beam Angle(Optional) | 60°/90°/120° | |||
| UGR | <25 | |||
| Surge Protection | 3.75~4KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional | |||
| LED Driver | DUALRAYS Own-developed High Efficiency Non-isolated Driver | |||
| IP Rating | IP65 | |||
| Dimming(Optional) | 0/1-10V/DALI/Zigbee | |||
| Sensor(Optional) | Motion Sensor,Daylight Sensor | |||
| Emergency(Optional) | Available (30W @ 3Hrs for Standard) | |||
| Protection Class | ClassⅠ | |||
| Finishing Color(Optional) | Black RAL9017(Standard) / White RAL9016 Optional | |||
| Material | Aluminum+PC | |||
| Lifespan/hrs | 70.000 Hrs (Ta=30℃@L70) | |||
| Operation Temp/℃ | 40°C to + 50°C(-40°F to 122°F) | |||
| Storage Temp/℃ | - 40°C to + 65°C(-40°F to 149°F) | |||
| Installation(Optional) | Loop Hanging, Ceiling Mounting, Wall Mounting | |||
| Certificate | CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available | |||
|
Character/Power
|
100W
|
150W
|
200W
|
240W
|
|
|
A
|
Ø280mm
|
Ø338mm
|
Ø400mm
|
Ø400mm
|
|
|
B
|
164mm
|
182mm
|
164mm
|
172mm
|
Preparatory Work
1. Loosen the screw with a screwdriver,righten
the ring of the safety chain.
2.Tighten the screw and fix the cable with
screwdriver.
Loop Hanging
1. Take out the light fixture and match with the
hang or chain in the ceiling.
2.Connect the safety chain to a fixed support.
3. Connect the wires according to the wiring
diagram.
Adjustable surface mounting
1. Drill 2 holes in the ceiling or wall according
to the size of U-bracket.(Figure 1)
2.Tighten the light fixture with expand screws
or M10 bolts.
3. Connect the wires according to the wiring
diagram.
4. Loosen fixed bolts with screwdriver and
adjust the right position.
5. Fastern the fixed bolts.
RISK OF PERSONAL INJURY – READ and follow all WARNINGS and installation instructions.
Keep or give to the owner for future reference.
Risk of cuts: Wear gloves to prevent cuts or abrasions when removing from carton, handling, installing, and maintaining this product.
Risk of electric shock: This product must be installed in accordance with the applicable installation code by a person familiar with the
construction and operation of the product and the hazards involved.
Risk of Fire: Minimum 194°F supply conductors. Consult a qualifed electrician to ensure correct branch circuit conductor.
DUALRAYS® assumes no responsibility for claims arising out of improper or careless Installation or handling of this product.
1.Could Dualrays provide OEM service?
RE: yes,we can offer OEM services four our customers. We can print your own logo on products,packaging and customized packaging box.
2.Where is Dualrays located?
RE: Dualrays is located in 6th Floor,Building 10, Gangzai Industrial Park, Furong Industrial Park,Xinqiao Industrial District,Shajing,Bao‘an District,Shenzhen 518125, P.R.China,welcome to visit our company.
3.MOQ ?
Dualrays have no MOQ requirements.Samples orders for trial order is welcome.
4.How long for the delivery time?
RE: 3 to 5 working days for samples, massive orders is within 10-15 working days according to the quantity.30 days for customized products with opening new mold.Urgent delivery time requirement is available,we will try our best to help you.
5.What’s your shipping method ?
RE: UPS, DHL, Fedex, TNT or Shipping by Air,by train(for Europe) or by sea for option.
6.If i have a questions I want to know , how can i contact Dualrays ?
RE: You can like us on the main social medias,such as Facebook,Linkedin,Twitter,Xing,Youtube,Google+,Instagram,send email or call our salesman or directly through major inquiry and send emails to reach us.
Contact Person: Mr. David Lau
Tel: 86-18620309436
Fax: 86-755-61641072
