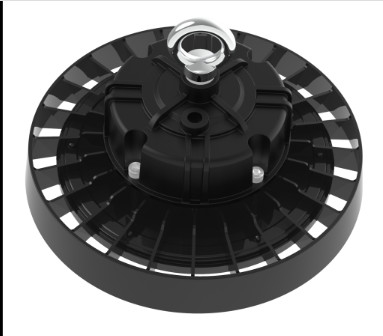

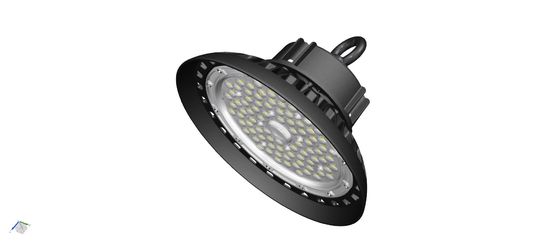

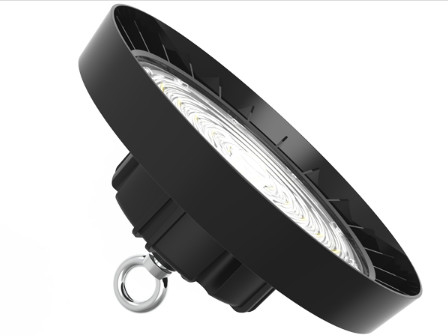

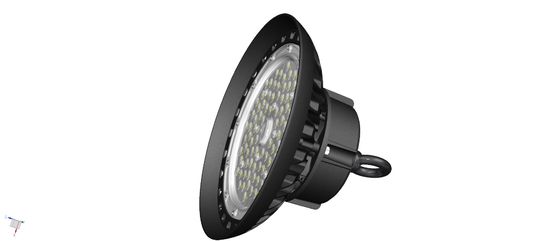

Name: Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-HBXXX-CG1
Availability: InStock

Home Products HB2.5 UFO LED High Bay

Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HBXXX-CG1

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiated
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union,Paypal
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Rated Power:	100/ 150/ 200/ 240W	Input Voltage:	AC90-305 50/60HZ
Beam Angle:	60°/90°(with Lens)/120°(without Lens)	LED Driver:	5 Years
Efficiency:	140Lm/W (± 5%)	LED Chips:	Lumiled SMD3030
Highlight:	140Lm/W UFO LED High Bay Light , UFO LED High Bay Light , Dualrays HB3 Ufo High Bay

Dualrays HB3 Industrial High Bay Light Light Replacement with Lower Price and Better Quality IP65

SAN'AN High Brightness SMD3030 LEDs;

DUALRAYS Own-developed Non-isolated Driver;

IP65/IK08 Protection;

60°/90°(with lens)/120°(without lens) beam angle optional;

D-Mark tested for the use in paper production,wood processing etc with toughened glass;

Multiple installations: loop hanging, ceiling mounting, wall mounting, pipe mounting;

Various intelligent control: 1-10V,Daylight sensor,Zigbee and Emergency;

Customized supported for special projects

Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs 2

Model No.	DR-HB100-CGXP	DR-HB150-CGXP	DR-HB200-CGXP
System Watts/W	100W	150W	200W
System Efficiency/LPW	140LPW / 160LPW Optional
Lumen Output/lm	14.000 / 16.000±5%	21.000 / 24.000±5%	28.000 / 32.000±5%
Rated Input Voltage/V	AC100~277V, 50/60Hz
LEDs Light Source	SMD2835 (1W)
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	60°/90°/120° Optional
UGR	<25
Surge Protection	3.75~4KV SPD built in Driver
LED Driver	DUALRAYS Own-developed High PF Non-isolated Driver
IP Rating	IP65
Dimming(Optional)	0/1-10V/Zigbee
Sensor(Optional)	Motion Sensor,Daylight Sensor
Emergency(Optional)	Available (30W @ 3Hrs for Standard)
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC (Toughened Glass Cover Optional)
Lifespan/hrs	60.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)	Loop Hanging, Ceiling Mounting, Wall Mounting
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs 3

Character/Power	100W	150W	200W	240W
A	Ø250mm	Ø300mm	Ø340mm	Ø340mm
B	178mm	181mm	183mm	183mm

Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs 5

Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs 7

DALI Device
Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs 14

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs 18

Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs 19

Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs 20

Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs 21

Dualrays HB3 High Bay Light IP65 IK08 140Lm/W 100W SMD3030 LEDs 22
