Place of Origin: | Shenzhen,China |
Brand Name: | DUALRAYS(OEM available) |
Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
Model Number: | DR-HB240-EGXP |
Minimum Order Quantity: | 1PCS |
---|---|
Price: | Please inquire for the latest price |
Packaging Details: | Netural Package/OEM and ODM Package Available |
Delivery Time: | 5-15 Bussiness Day |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50000PCS/Month |
Input Voltage: | AC100~277V 50/60Hz | Power Factor: | 0.95 |
---|---|---|---|
Drive: | Meanwell/SOSEN | CCT: | WW:3000±200K NW:4000±200K DW:5000±200K CW:5700±200K |
Guarantee: | 5 Years | IP Rating: | IP65 |
Europe Warehouse: | Netherlands | Plug: | European/Asian Standard Optional |
UGR: | <25 | Installation Height: | 6-20 Meters |
Package: | Nactrual Export Carton Box | Optinal Sensor: | Plugable Motion Sensor, Daylight Senor |
Dimming: | 0/1-10V/DALI/Zigbee | Emergency: | Available |
High Light: | 240W UFO LED High Bay Light,IK10 UFO LED High Bay Light,IP65 High Bay Light Fittings |

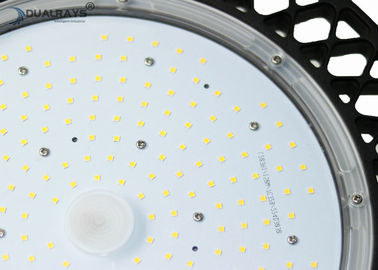

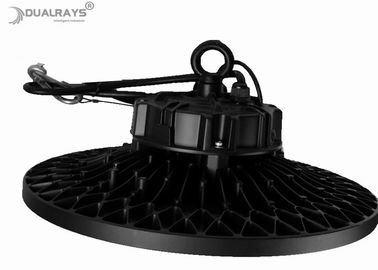

Led UFO High Bay Light Fittings 240W For Gas Station / Supermarkets/Factory
Why choosing DUALRAYS:
* Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;
* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;
* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.
Character/Power
|
100W
|
150W
|
200W
|
240W
|
|
A
|
Ø350mm
|
Ø350mm
|
Ø420mm
|
Ø420mm
|
|
B
|
210mm
|
210mm
|
220mm
|
220mm
|
Packaging Information
Shipment
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
RE:Whether it is used in factories and enterprises, industrial and mining enterprises, petroleum, chemical, smelting and other consumer workshops, warehouses, etc., or in large shopping malls, indoor stadiums and other places, they all need safe installations, which can guarantee life and wealth Safe, let me explain a few correct installation methods.
The user must first determine the installation height of the LED high bay light. According to the lighting environment, because the environment will change the reflection efficiency of the lamps, the height of ordinary lamps should be more than 5 meters, and the wires should not be close to the shell of the high bay. If the conditions are necessary, the height of the device is less than 3 meters, and protective measures must be taken to avoid vehicle touching ! Secondly, the LED high bay lights are wired. The main line and the lamps are connected by a flat hard copper wire, a 5-ring device, and the average link is on the three-phase line according to the load balancing request! For high-density lighting projects, the lamp housing is connected with a PE protective wire separately. The last step is the waterproof and low-temperature disposal of LED high bay lights. Generally choose high bay lights with waterproof function, choose a waterproof transformer, and wrap the lamp chip with high temperature resistant insulation materials. The technology is waterproof and can prevent damage to the lamp at low temperature. Even when using LED high bay lights under harsh conditions, it is very important !
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
