| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-HB150-EG2 |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 Bussiness Day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000PCS/Month |
| Rated Power: | 150W | Power Effciency: | 95% |
|---|---|---|---|
| Power Factor: | 0.95 | CRI: | >83Ra |
| LED's Brand: | PHILIP LUMILEDS | Warranty: | 5 Years |
| High Light: | led flat panel light fixture,high bay led shop lights |
||

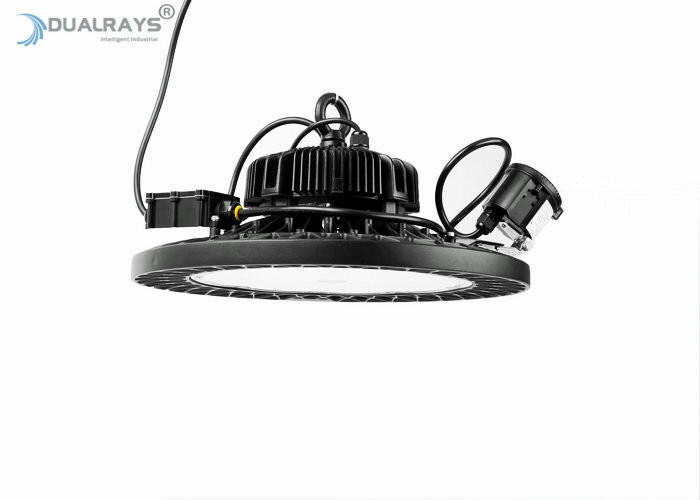

Dualrays 150W HB5 LED UFO High Bay Light IP65 IK10 Protection 50000hrs Life Span
Dualrays 150W HB5 LED High Bay Light-- Features:
* High Color Rendering Index (CRI>80);
* AC100V~277V,50/60Hz input voltage;
* Highly brightness LUXEON SMD3030 LEDs,energy efficient - up to 160LPW;
* Adjustable ripple-lens optic with 60°/90°/120° beam angle;
* Superior PC reflector-optic for low glare applications,PMMA,glass cover available;
* Installation: Loop Hanging, Ceiling Mounting, Wall Mounting,pipe mounting;
Dualrays 150W HB5 LED High Bay Light-- Data Sheet:
| Model No. | DR-HB150-EGXP |
| System Watts/W | 150W |
| System Efficiency/LPW | 21.000±5% |
| Lumen Output/lm | 14.000±5% |
| Rated Input Voltage/V | AC100~277V 50/60Hz |
| LEDs Light Source | SMD3030 |
> Shipyards;
> Mines;
> Workshops;
> Warehouse;
> Highway toll stations;
> Gas stations;
> Supermarkets;
> Exhibition center;
| Model No. | DR-HB100-EGXP | DR-HB150-EGXP | DR-HB300-EGXP |
| System Watts/W | 100W | 150W | 300W |
| System Efficiency/LPW | 140LPW | 21.000±5% | 42.000±5% |
| Lumen Output/lm | 14.000±5% | ||
| Rated Input Voltage/V | AC100~277V 50/60Hz | ||
| LEDs Light Source | SMD3030 | ||
| SDCM | <6 | ||
| CCT/K | 3000K/4000K/5000K/5700K/6500K | ||
| CRI/Ra | >80Ra (>70Ra for Option) | ||
| Power Factor | >0.95 | ||
| THD | <10% | ||
| Beam Angle(Optional) | 60°/90°/110° | ||
| UGR | <25 | ||
| Surge Protection | 6~10KV SPD built in Driver,Exterior SPD 10KV() or 20KV Meanwell Optional | ||
| LED Driver | Meanwell HBG/ELG/HLG,Sosen | ||
| IP Rating | Ip65 | ||
| Dimming(Optional) | 0/1-10V/DALI/Zigbee | ||
| Sensor(Optional) | Pluggable Motion Sensor,Daylight sensor | ||
| Emergency(Optional) | Available | ||
| Protection Class | ClassⅠ | ||
| Finishing Color(Optional) | Black RAL9017 / White RAL9016 | ||
| Material | Aluminum+PC | ||
| Lifespan/hrs | >50.000 Hrs (Ta=30℃@L70) | ||
| Operation Temp/℃ | -40°C to + 50°C(-40°F to 122°F) | ||
| Storage Temp/℃ | -40°C to + 65°C(-40°F to 149°F) | ||
| Dimension/mm | Φ350*210mm | ||
| Installation(Optional) | Loop Hanging, Ceiling Mounting, Wall Mounting,Pipe Mounting | ||
| Certificate | CE(EMC+LVD),RoHS,TUV/GS ,D-Mark,SAA,RCM Available; | ||
|
Character/Power
|
100W
|
150W
|
200W
|
240W
|
|
|
A
|
Ø350mm
|
Ø350mm
|
Ø420mm
|
Ø420mm
|
|
|
B
|
210mm
|
210mm
|
220mm
|
220mm
|
Q1.What’s the fire rating categories ?
RE: VO-Burning stops within 10 seconds on vertical specimen; drips of particles allowed as long as they are not inflamed.
HB-Slow burning on a horizonal specimen’s burning rate <76mm /min thickness <3mm or burning stops before 100mm.
TP(b)-Slow burning rate <50mm / min for thickness <3mm.
TP(a)-Self extinguishes and flaming and afterglow should not exceed 5 seconds once source the source of flame is removed.
Q2.What’s efficacy about the light ?
RE: The light output of a light source divided by the total electrical power input to that source, expressed in lumens per watt(lm/w).
Q3.What’s LED Chips ?
RE: The light producing semiconductor device that may or may not be incorporated into an LED.
Q4.What’s LGP(PMMA)?
RE: A key component to maximize the uniformity of light, to make the backlight slim and to reorient the line or dot light source such as LED to the plate light source.
Q5.What’s Smart Lighting ?
RE: Automated lighting control using sensors and /or scheduling switches.
