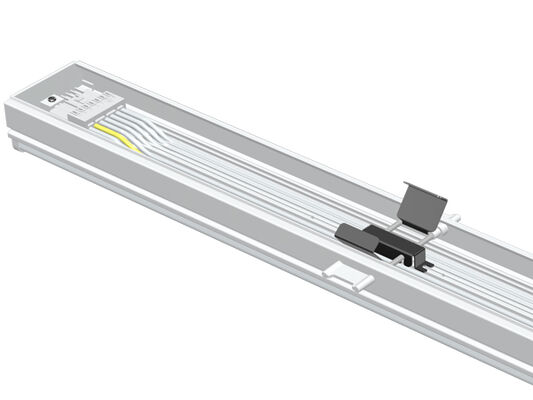

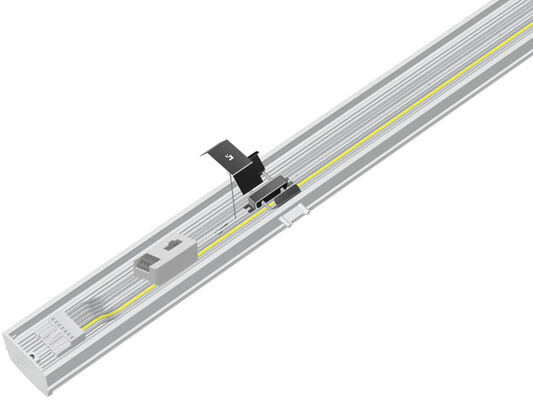

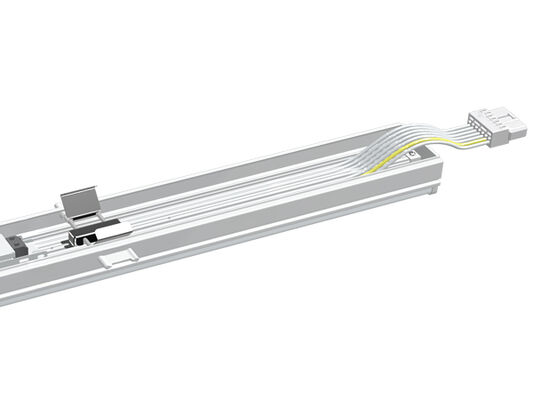

Universal Linear Module 5 Years Warranty Power Adjustable for Supermarkets

Universal Linear Module 5 Years Warranty Power Adjustable for Supermarkets

  • Universal Linear Module 5 Years Warranty Power Adjustable for Supermarkets
  • Universal Linear Module 5 Years Warranty Power Adjustable for Supermarkets
  • Universal Linear Module 5 Years Warranty Power Adjustable for Supermarkets
Universal Linear Module 5 Years Warranty Power Adjustable for Supermarkets
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS
Certification: CE,ROHS,TUV/GS,LM79,LM80
Model Number: DR-ULM055-DE5C
Payment & Shipping Terms:
Minimum Order Quantity: 20pcs
Price: Negotiated
Packaging Details: Netural Package,color box package
Delivery Time: 5-15 business days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Length: 1430mm LEDs Source: SMD2835
Color: White RAL 9003 Switching Cycle Before Failure: 100,000 Times
Power Factor: PF>0.95 Protections: Short Circuit/Over Current/Over Voltage/Over Temperature
High Light:

led linear high bay


linear lighting systems

Universal Linear Module 5 Years Warranty Power Adjustable



Linear LED Module--Datas Sheet


Item Symbol Description
Model No / DR-ULM055-DE5C
Driver / BOKE
Efficiency LPW 150
Colo Temperature CCT/K WW:3000±200K NW: 4000±200K DW:5000±200K CW: 6000±200K
Dimming Function / DALI
Protections / Short circuit/Over current/Over voltage/Over temperature
Anti-salty spray / Grade A
Color Index Ra >80Ra

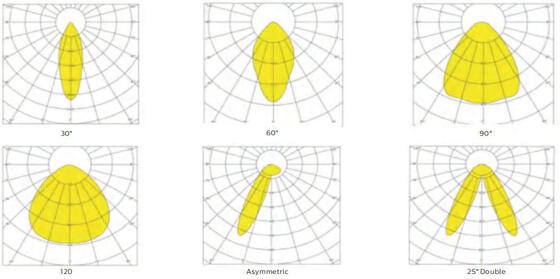

Beam Angle Degree 30°/60°/90°/120°/Double Asy 25°/Single Asy 25°
AC Input Vol V AC220-240V/DC180-264V
Output Vol V DC32V
Power Factor PF PF>0.95
Lumen Maintenance @ 6000 hrs Hours >80%
Switching Cycle before Failure Times 100,000
Life Span Hours 50,000
Warranty Years 5 years
Operation Temperature -40 ~ +55℃
Storage Temperature -40 ~ +85℃

Linear LED Module-- Feature

a. Private Mold for PMMA Extrusion lens,much more durable and elegant normal PC Injection lens in the market;

b. Multiple Beam Angle Option: 30°/60°/90°/120°/Double Asy 25°/Single Asy 25°;

c. Osram adjustable power with switch for more power choice during actual occasions,AC/DC input;

d. Dimming Fuction: DALI

e. The complete fixtures includes linear module, trunking rail, optional functions and installation accessories, the quotation above only means linear module, extra function or installationkits ,please contact us for quotation;

f.  Customized dimming type or emergency function,please contact us for confirmation;





Linear LED Module--Advantage

* Powerful production capacity and QC management system;

* Excellent experience for distributors, wholesales and contractor from Western Europe and Oceania;

* All our LED liminaires comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products;

* Supply different version with different configurations for our customers.

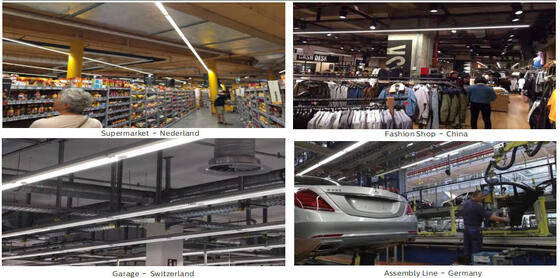

Linear LED Module--Application

* Office

* Workshops and warehouse

* Supermarkets

* Underground parking

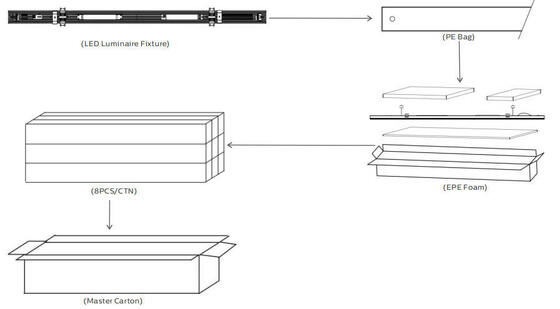

Linear LED Module-Shipment



(1) For small order,express will be best.

(2) For bulk order,ship by sea or train(Europe destination) is the best,but take much time.

(3) For urgent orders,we suggest via air to airport plus our ship partner send to your door.



Q1: Does Dualrays have the ability to do independence and development ?

RE: Our engineer department have 12 people. We have the research and development capability. We also collect regularly each customer feedback. We have product improvement and new product development.


Q2: LEDs are more expensive than other lighting options,why ?

RE: LEDs can operate as stand alone devices,but when grouped or clustered they require additional steps to operate properly. LEDs need proper components such as a circuits can be designed rapidly, but to ensure that they operate correctly and for long periods of time they require testing.


Q3.How to explain “Flux/luminous Flux “?

RE: Luminous flux is the measure of the perceived power of light produced by the LED, adjusting to reflect the varying sensitivity of the human eye to different wavelengths of light.


Q4.Why we use the high power LED ?

RE: A high power LED, sometimes referred to as a power LED, is one that is driven at current of 350mA or higher.


Q5.How important is IP ?

RE: Classifies and rates the degree of protection provided against intrusion (body parts such as hands and fingers), dust, accident contact, and water by mechanical casing and electrical enclosures.


Q6.What’s LED Chips ?

RE: The light producing semiconductor device that may or may not be incorporated into an LED.
