| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-HB200-CGXP |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 Bussiness Day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000PCS/Month |
| LED Driver: | DUALRAYS Own-developed Built-in Driver | Warranty: | 5 Years |
|---|---|---|---|
| Life Span: | 50,000 Hours | Controls And Dimming: | Zigbee Wireless Control / 1-10V Dimming / Daylight Sensor |
| Reflector: | PC Reflector With / Without Cover.pipe Mounting | Power Factor: | >0.95 |
| High Light: | high bay led shop lights,wireless led outdoor flood lights |
||

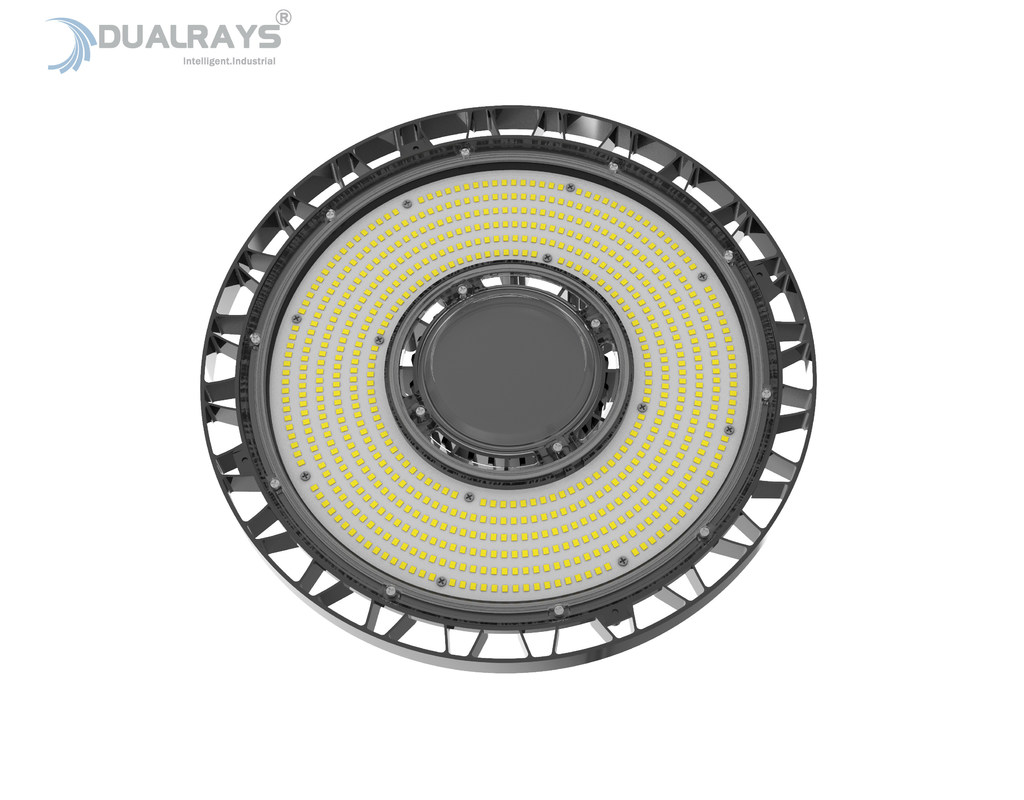

Dualrays 200W HB3 Eco Built-in Driver UFO High Bay with Optional Controls and Dimming
Dualrays HB3 Series UFO LED High Bay Light-- Data Sheet
| Model No | DR-HB200-CGXP | |||
| Rated Power | 200W | |||
| LEDs Typ/Qty | 322 | |||
| Luminous Flux | 28,000±5% | |||
| Efficiency | 140 | |||
| Color Temperature | WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K | |||
| Dimming Function | 1-10VDC /DALI / PIR Sensor | |||
| Protections | Short circuit/Over current/Over voltage/Over temperature | |||
| Color Index | >80Ra | |||
| Beam Angle | 60°/90°/120° for option | |||
| IP/Rating | IP65 | |||
| AC Input Vol | AC100~240V 50/60Hz | |||
| Power Factor | PF>0.95 | |||
| Starting Time | <0.1 | |||
| Lumen Maintenance @ 6000 hrs | >95% | |||
| Switching Cycle before Failure | 100,000 | |||
| Life Span | 50,000hrs | |||
| Warranty | 5 years | |||
|
Character/Power
|
100W
|
150W
|
200W
|
|
|
A
|
Ø322mm
|
Ø322mm
|
Ø322mm
|
|
|
B
|
128mm
|
128mm
|
128mm
|
