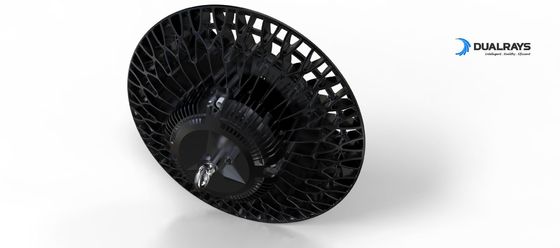

Dualrays professional manufacture IK 10 Waterproof 100W 200W 240W 300W UFO LED High Bay Light For Large Warehouse

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB150-EGXP

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	Negotiable
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000PCS/Month

Contact Now

Detailed Product Description

Material:	Aluminium Alloy	Input Voltage:	AC85～277V 50/60Hz
Power:	150W	CCT:	3000/4000/5700/6500K±200K
Efficiency:	140LPW	Warranty:	5 Years
High Light:	high bay led shop lights , wireless led outdoor flood lights

Dualrays professional manufacture IK 10 Waterproof 100W 200W 240W 300W UFO LED High Bay Light For Large Warehouse

UFO LED High Bay Features:

Features:

* LUMILEDS LUXEON High Brightness SMD3030 LEDs,SOSEN/Meanwell Driver;

* IP65 Protection;

* 60°/90°(with lens)/120°(without lens) beam angle optional;

* IP65 Protection;

* D-Mark tested for the use in paper production,wood processing etc with toughened glass;
* Multiple installations: loop hanging, ceiling mounting, wall mounting,pipe mounting;
* Various intelligent control: 1-10V, DALI, Motion sensor, Daylight sensor,Zigbee and Emergency;
* Customized supported for special projects;

LED Driver	Meanwell ELG
CCT/K	3000K/4000K/5000K/5700K/6500K
SCDM	<5
CRI(Ra)	>80Ra(>70Ra for option)
Input Wattage	AC 100~277V 50/60Hz
IP Rating	IP65
System Efficiency/LPW	140LPW
IK Rating	IK08
Lifespan Time	>50000hours
Operation Temp℃	-40℃~60℃
Sensor (Optional)	Daylights Sensor,Pluggable Motion Sensor
Systems Wattage	150W

Options:

> Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.

> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen

> Reflector : PC reflector with / without cover.pipe mounting.

> Installation: loop hanging, ceiling mounting, wall mounting,

> Customized supported for special projects.

> Controls and Dimming

140LPW High Efficiency 100W HB5 UFO LED High Bay Light IP65 5 Years Warranty

> Shipyards;

> Mines;

> Workshops;

> Warehouse;

> Highway toll stations;

> Gas stations;

> Supermarkets;

> Exhibition center;

Character/Power	100W	150W	200W	240W
A	Ø350mm	Ø350mm	Ø420mm	Ø420mm
B	210mm	210mm	220mm	220mm

100W UFO LED High Bay Light Die Cast Aluminum Material 5 Years Guarantee

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

1.How do we explain “CRI” ?

RE: A measure of the degree of colour shift objects undergo when illuminated by the light source as compared with those same objects when illuminated by a reference source of comparable colour temperature. The reference source has a CRI of 100.

2.What’s CCT(colour temperature) ?

RE: The description used to describe the effect of heating an object until it grows incandescently. The emitted radiation, and apparent colour, changes proportional to the temperature; easily envisioned radiation, and apparent colour, changes proportional to the temperature; easily envisioned ,when considering hot meal in a forge that glows red, then orange, and then white as the temperature increases.

3.Do you know “dali “?

RE: Digital addressable lighting interface (DALI) is a trademark for network-based systems that control lighting in building automation.

4.What’s the fire rating categories ?

RE: VO-Burning stops within 10 seconds on vertical specimen; drips of particles allowed as long as they are not inflamed.

HB-Slow burning on a horizonal specimen’s burning rate <76mm /min thickness <3mm or burning stops before 100mm.

TP(b)-Slow burning rate <50mm / min for thickness <3mm.

TP(a)-Self extinguishes and flaming and afterglow should not exceed 5 seconds once source the source of flame is removed.
