Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed

Product Details:

Place of Origin:	Shenzhen,China
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB200-DG2

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	Negotiated After Inquiry
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Brand Name:	DUALRAYS/OEM	Certificate:	CE(EMC+LVD),RoHS,TUV/GS ,D-Mark,SAA,RCM Available
Installation(Optional):	Loop Hanging, Ceiling Mounting, Wall Mounting,Pipe Mounting	Storage Temp/℃:	-40°C To + 65°C(-40°F To 149°F)
Operation Temp/℃:	-40°C To + 50°C(-40°F To 122°F)	CRI:	>83Ra
Warranty:	5 Years	IP Rating:	IP65
Vibrition:	IK08	Light Source:	LUXEON SMD3030 LEDs
High Light:	led flat panel light fixture , high bay led shop lights

Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed

Gymnasium Lighting UFO LED High Bay Lamp HB4 Pluggable Motion Sensor 100W 150W 200W 240W D-Mark Listed 0

> Highly brightness LUXEON SMD3030 LEDs,energy efficient - up to 160 lm/w;

> Die-casting Al for excellent heat dissipation;

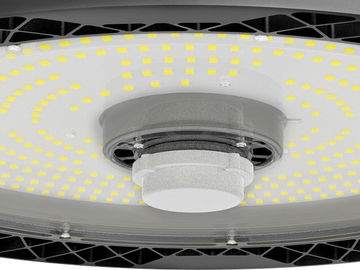

> Pluggable built-in radar motion sensor,plug and play;

> Superior PC reflector-optic for low glare applications,PMMA,glass cover available;

> IP65 and IK10 for all industrial areas of application;

> Driver and housing separated by spacers;

> Adjustable ripple-lens optic with 60°/90°/120° beam angle;

> D-Mark tested for the use in paper production, wood processing etc;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty;

Options:

> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen

> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.

> Reflector : PC reflector with / without cover.pipe mounting.

> Installation: loop hanging, ceiling mounting, wall mounting,

> Customized supported for special projects.

Character/Power	100W	150W	200W	240W
A	Ø320mm	Ø320mm	Ø390mm	Ø390mm
B	200mm	200mm	205mm	205mm

Model No.	DR-HB100-DGXP	DR-HB150-DGXP	DR-HB200-DGXP	DR-HB240-DGXP
System Watts/W	100W	150W	200W	240W
System Efficiency/LPW	140LPW
Lumen Output/lm	14.000±5%	21.000±5%	28.000±5%	33.600±5%
Rated Input Voltage/V	AC100~277V 50/60Hz
LEDs Light Source	SMD3030
SDCM	<6
CCT/K	3000K/4000K/5000K/5700K/6500K
