Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-HB100-CG2
Payment & Shipping Terms:
Minimum Order Quantity: 2PCS
Price: Negotiated After Inquiry
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 Bussiness Day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000PCS/Month
Contact Now
Detailed Product Description
PROLine Version: 140LPW Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen
Controls And Dimming: Zigbee Wireless Control / 1-10V Dimming / DALI Control Emergency: Avaialable
Sensor: Motion Sensor / Daylight Sensor Reflector: PC Reflector With / Without Cover
Installation: Loop Hanging, Ceiling Mounting, Wall Mounting,pipe Mounting Service: Customized Supported For Special Projects
Application: Barns And Riding Halls Health: No UV Or IR And Completely Mercury Free
High Light:

high bay led shop lights

,

wireless led outdoor flood lights

DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern





DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern 0
DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern 1

DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern 2

DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern 3

DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern 4

DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern 5

DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern 6

DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern 7

DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern 8

DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern 9

DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern 10

Model No. DR-HB100-DGXP DR-HB150-DGXP DR-HB200-DGXP DR-HB240-DGXP
System Watts/W 100W 150W 200W 240W
System Efficiency/LPW 140LPW
Lumen Output/lm 14.000±5% 21.000±5% 28.000±5% 33.600±5%
Finishing Color(Optional) Black RAL9017 / White RAL9016
Protection Class ClassⅠ
LED Driver Meanwell HBG/ELG/HLG,Sosen
Surge Protection 6~10KV SPD Driver,Exterior SPD 10KV() or 20KV Meanwell Optional
Rated Input Voltage/V AC100~277V 50/60Hz
LEDs Light Source SMD3030
SDCM <6
CCT/K 3000K/4000K/5000K/5700K/6500K



DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern 11

> Highly brightness LUXEON SMD3030 LEDs,energy efficient - up to 160 lm/w;
> Die-casting Al for excellent heat dissipation;

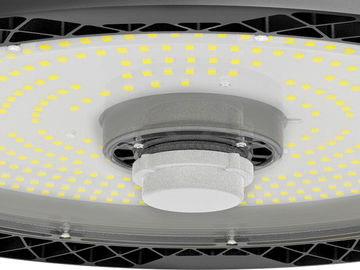

> Pluggable built-in radar motion sensor,plug and play;
> Superior PC reflector-optic for low glare applications,PMMA,glass cover available;
> IP65 and IK10 for all industrial areas of application;
> Driver and housing separated by spacers;
> Adjustable ripple-lens optic with 60°/90°/120° beam angle;
> D-Mark tested for the use in paper production, wood processing etc;
> No UV or IR and completely mercury free;
> L80/B10 @ 50.000h;
> 5 years warranty;

Options:
> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen
> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.
> Reflector : PC reflector with / without cover.pipe mounting.
> Installation: loop hanging, ceiling mounting, wall mounting,
> Customized supported for special projects.
DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern 12
DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern 13
> Factories / Warehouses /Workshops
> Exhibitions & showrooms
> Barns and riding halls
> High rooms and halls
> Traditional lamp replacement



DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern 14

Character/Power
100W
150W
200W
240W
DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern 15
A
Ø320mm
Ø320mm
Ø390mm
Ø390mm
B
200mm
200mm
205mm
205mm


DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern 16

DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern 17

DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern 18
DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern 19
DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern 20
DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern 21
DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern 22

DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern 23

DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern 24

DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern 25

DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern 26

DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern 27

DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern 28



DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern 29

DUALRAYS HB4 UFO High Bay Lamp Innovative Design with Pluggable Motion Sensor D-Mark Listed Europe Pattern 30
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
