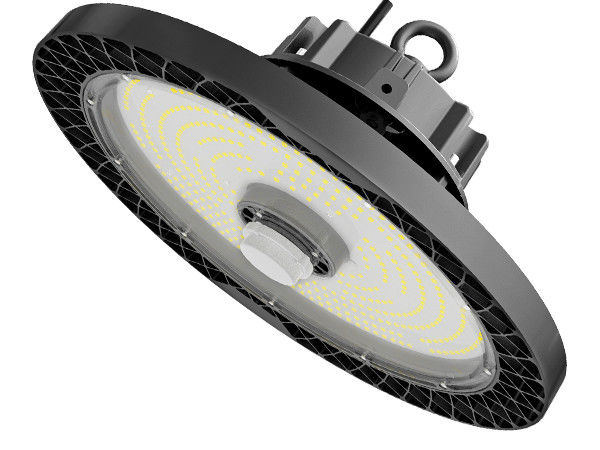

HB4 Built-in Pluggable Motion Sensor LED UFO High Bay Waterproof IP65 High Bay Lamp

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB200-DG2

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	Negotiated After Inquiry
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	7-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Certificate:	CE(EMC+LVD),RoHS,TUV/GS ,D-Mark,SAA,RCM Available	Installation(Optional):	Loop Hanging, Ceiling Mounting, Wall Mounting,Pipe Mounting
Storage Temp/℃:	-40°C To + 65°C(-40°F To 149°F)	Operation Temp/℃:	-40°C To + 50°C(-40°F To 122°F)
CRI:	>83Ra	Warranty:	5 Years
Material:	Aluminum+PC	Sensor(Optional):	Pluggable Motion Sensor,Daylight Sensor
LED Driver:	Meanwell HBG/ELG/HLG,Sosen	Surge Protection:	6~10KV SPD Driver,Exterior SPD 10KV() Or 20KV Meanwell Optional
High Light:	led flat panel light fixture , wireless led outdoor flood lights

HB4 Built-in Pluggable Motion Sensor LED UFO High Bay Waterproof IP65 High Bay Lamp

HB4 Built-in Pluggable Motion Sensor LED UFO High Bay Waterproof IP65 High Bay Lamp 0

Model No.	DR-HB100-DGXP	DR-HB150-DGXP	DR-HB200-DGXP	DR-HB240-DGXP
System Watts/W	100W	150W	200W	240W
System Efficiency/LPW	140LPW
Lumen Output/lm	14.000±5%	21.000±5%	28.000±5%	33.600±5%
Operation Temp/℃	-40°C to + 50°C(-40°F to 122°F)
Installation(Optional)	Loop Hanging, Ceiling Mounting, Wall Mounting,Pipe Mounting
LED Driver	Meanwell HBG/ELG/HLG,Sosen
Surge Protection	6~10KV SPD Driver,Exterior SPD 10KV() or 20KV Meanwell Optional
Rated Input Voltage/V	AC100~277V 50/60Hz
Certificate	CE(EMC+LVD),RoHS,TUV/GS ,D-Mark,SAA,RCM Available
SDCM	<6
CCT/K	3000K/4000K/5000K/5700K/6500K

HB4 Built-in Pluggable Motion Sensor LED UFO High Bay Waterproof IP65 High Bay Lamp 1

> Highly brightness LUXEON SMD3030 LEDs,energy efficient - up to 160 lm/w;

> Die-casting Al for excellent heat dissipation;

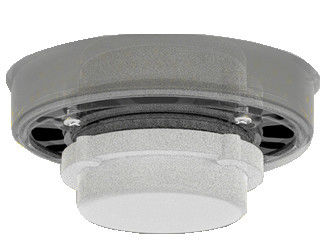

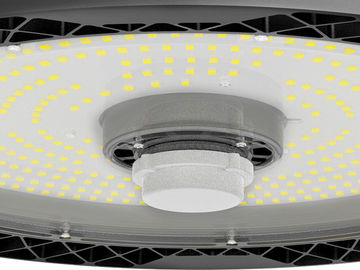

> Pluggable built-in radar motion sensor,plug and play;

> Superior PC reflector-optic for low glare applications,PMMA,glass cover available;

> IP65 and IK10 for all industrial areas of application;

> Driver and housing separated by spacers;

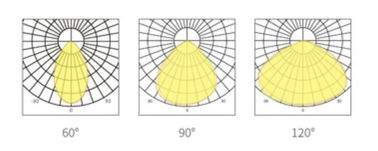

> Adjustable ripple-lens optic with 60°/90°/120° beam angle;

> D-Mark tested for the use in paper production, wood processing etc;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty;

Options:

> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen

> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.

> Reflector : PC reflector with / without cover.pipe mounting.

> Installation: loop hanging, ceiling mounting, wall mounting,

> Customized supported for special projects.

> Factories / Warehouses /Workshops

> Exhibitions & showrooms

> Barns and riding halls

> High rooms and halls

> Traditional lamp replacement

HB4 Built-in Pluggable Motion Sensor LED UFO High Bay Waterproof IP65 High Bay Lamp 9

Character/Power	100W	150W	200W	240W
A	Ø320mm	Ø320mm	Ø390mm	Ø390mm
B	200mm	200mm	205mm	205mm

HB4 Built-in Pluggable Motion Sensor LED UFO High Bay Waterproof IP65 High Bay Lamp 11

HB4 Built-in Pluggable Motion Sensor LED UFO High Bay Waterproof IP65 High Bay Lamp 13

HB4 Built-in Pluggable Motion Sensor LED UFO High Bay Waterproof IP65 High Bay Lamp 23

HB4 Built-in Pluggable Motion Sensor LED UFO High Bay Waterproof IP65 High Bay Lamp 24

HB4 Built-in Pluggable Motion Sensor LED UFO High Bay Waterproof IP65 High Bay Lamp 25

HB4 Built-in Pluggable Motion Sensor LED UFO High Bay Waterproof IP65 High Bay Lamp 26

HB4 Built-in Pluggable Motion Sensor LED UFO High Bay Waterproof IP65 High Bay Lamp 27

HB4 Built-in Pluggable Motion Sensor LED UFO High Bay Waterproof IP65 High Bay Lamp 28

HB4 Built-in Pluggable Motion Sensor LED UFO High Bay Waterproof IP65 High Bay Lamp 29

HB4 Built-in Pluggable Motion Sensor LED UFO High Bay Waterproof IP65 High Bay Lamp 30
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
