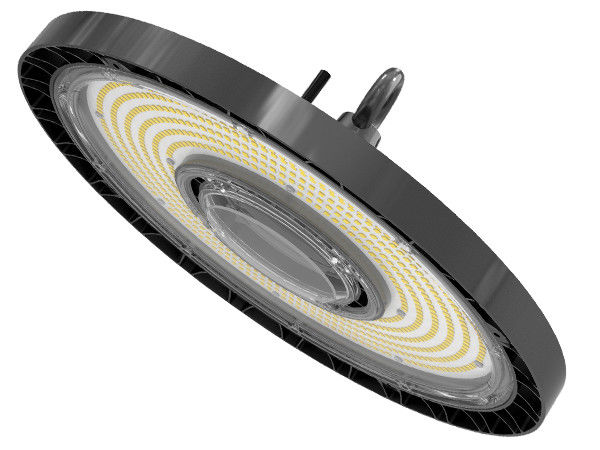

Name: Industrial lighting 200W UFO High Bay CE(EMC+LVD),RoHS,TUV/GS ,D-Mark,SAA,RCM Certificated
Brand: DUALRAYS
SKU: DR-HB200-CG2
Price: 35.68 USD
Availability: InStock
Rating: 4.7 (199 reviews)

Home Products UFO LED High Bay Light

Industrial lighting 200W UFO High Bay CE(EMC+LVD),RoHS,TUV/GS ,D-Mark,SAA,RCM Certificated

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB200-CG2

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	35.68USD/PCS
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	7-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Material:	Aluminium Alloy	Rated Power:	100-240W
Rated Lumen:	16,000-38,400lm	CCT:	3000/4000/5700/6500K±200K
CRI:	>83	Warranty:	5 Years
Application:	Industrial Lighting	Ip Rating:	IP65
High Light:	led flat panel light fixture , high bay led shop lights

Industrial lighting 200W UFO High Bay CE(EMC+LVD),RoHS,TUV/GS ,D-Mark,SAA,RCM Certificated

Efficiency:
STANDARDLine:

PROLine: 140LPW

PRIMELine:

Features:

* LUMILEDS LUXEON High Brightness SMD3030 LEDs,DUALRAYS Built-in Driver;

* IP65 Protection;

* 60°/90°(with lens)/120°(without lens) beam angle optional;

* D-Mark tested for the use in paper production,wood processing etc with toughened glass;
* Multiple installations: loop hanging, ceiling mounting, wall mounting,pipe mounting,E40 Socket Available;
* Various intelligent control: 1-10V, DALI, Motion sensor, Daylight sensor,Zigbee and Emergency;
* Customized supported for special projects;

Model No.	DR-HB100-CGXP	DR-HB150-CGXP	DR-HB200-CGXP
System Watts/W	100W	150W	200W
System Efficiency/LPW	140LPW
Lumen Output/lm	14.000±5%	21.000±5%	28.000±5%
Rated Input Voltage/V	AC100~277V 50/60Hz
LEDs Light Source	SMD3030
SDCM	<6
CCT/K	3000K/4000K/5000K/5700K/6500K

Industrial lighting 200W UFO High Bay CE(EMC+LVD),RoHS,TUV/GS ,D-Mark,SAA,RCM Certificated 1

Character/Power	100W	150W	200W
A	Ø322mm	Ø322mm	Ø322mm
B	128mm	128mm	128mm

Industrial lighting 200W UFO High Bay CE(EMC+LVD),RoHS,TUV/GS ,D-Mark,SAA,RCM Certificated 5

Industrial lighting 200W UFO High Bay CE(EMC+LVD),RoHS,TUV/GS ,D-Mark,SAA,RCM Certificated 11

Industrial lighting 200W UFO High Bay CE(EMC+LVD),RoHS,TUV/GS ,D-Mark,SAA,RCM Certificated 12

Industrial lighting 200W UFO High Bay CE(EMC+LVD),RoHS,TUV/GS ,D-Mark,SAA,RCM Certificated 13

Industrial lighting 200W UFO High Bay CE(EMC+LVD),RoHS,TUV/GS ,D-Mark,SAA,RCM Certificated 14

Industrial lighting 200W UFO High Bay CE(EMC+LVD),RoHS,TUV/GS ,D-Mark,SAA,RCM Certificated 15

Industrial lighting 200W UFO High Bay CE(EMC+LVD),RoHS,TUV/GS ,D-Mark,SAA,RCM Certificated 16

Industrial lighting 200W UFO High Bay CE(EMC+LVD),RoHS,TUV/GS ,D-Mark,SAA,RCM Certificated 17

Industrial lighting 200W UFO High Bay CE(EMC+LVD),RoHS,TUV/GS ,D-Mark,SAA,RCM Certificated 18
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
