High Lumen LED Lamp 100W Modular LED Sports Stadium Light with 1-10V PWM DALI Zigbee Dimming Control

High Lumen LED Lamp 100W Modular LED Sports Stadium Light with 1-10V PWM DALI Zigbee Dimming Control

  • High Lumen LED Lamp 100W Modular LED Sports Stadium Light with 1-10V PWM DALI Zigbee Dimming Control
  • High Lumen LED Lamp 100W Modular LED Sports Stadium Light with 1-10V PWM DALI Zigbee Dimming Control
  • High Lumen LED Lamp 100W Modular LED Sports Stadium Light with 1-10V PWM DALI Zigbee Dimming Control
  • High Lumen LED Lamp 100W Modular LED Sports Stadium Light with 1-10V PWM DALI Zigbee Dimming Control
  • High Lumen LED Lamp 100W Modular LED Sports Stadium Light with 1-10V PWM DALI Zigbee Dimming Control
  • High Lumen LED Lamp 100W Modular LED Sports Stadium Light with 1-10V PWM DALI Zigbee Dimming Control
High Lumen LED Lamp 100W Modular LED Sports Stadium Light with 1-10V PWM DALI Zigbee Dimming Control
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS/OEM
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-FL100-EG1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiated After Inquiry
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 Bussiness Day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000PCS/Month
Contact Now
Detailed Product Description
Input Voltage: AC85~277V 50/60Hz Working Life Time: L80/B10 @ 50.000h
Operation Temp/℃: -40°C To + 50°C(-40°F To 122°F) Storage Temp/℃: -40°C To + 65°C(-40°F To 149°F)
Warranty: 5 Years Application: Football Court,tennis Court Ect Sport Lighting Area
IP Rating: IP66 Power: 100W
High Light:

led stadium floodlights

,

football stadium floodlights

High Lumen LED Lamp 100W Modular LED Sports Stadium Light with 1-10V PWM DALI Zigbee Dimming Control 0
High Lumen LED Lamp 100W Modular LED Sports Stadium Light with 1-10V PWM DALI Zigbee Dimming Control 1

Options:
> Driver: Sosen,Meanwell ELG/HLG driver;
> Controls and Dimming: 1-10V, DALI,PWM,Zigbee;
> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;
> Lens : Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV;
> Microwave Motion Sensor;

High Lumen LED Lamp 100W Modular LED Sports Stadium Light with 1-10V PWM DALI Zigbee Dimming Control 2
> Airports & Harbors
> Billboard illumination
> Large recreational sports facilities
> Industrial areas & Landscape buildings
> Roundabouts and motorway junctions

High Lumen LED Lamp 100W Modular LED Sports Stadium Light with 1-10V PWM DALI Zigbee Dimming Control 3
Model No.
DR-FL050-CGXX DR-FL100-CGXX DR-FL150-CGXX DR-FL200-CGXX DR-FL300-CGXX
System Watts/W
50W 100W 150W 200W
300W
System Efficiency/LPW
120~125LPW
Lumen Output/lm
6.500±5% 12.500±5% 18.750±5% 25.000±5% 37.500±5%
Rated Input Voltage/V
AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source
SMD3030
SDCM
<5
CCT/K
5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
>70Ra (>80Ra for Option)
Power Factor
>0.95
THD
<10%

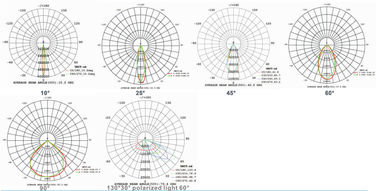

Beam Angle(Optional)
Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional
UGR
<25
Surge Protection
6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver
Sosen,Meanwell ELG / HLG Optional
IP Rating
IP65
Dimming(Optional)
1-10V, DALI,PWM,Zigbee for Option
Safety Protection Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Sensor (Optional) Motion Sensor
Protection Class
ClassⅠ
Finishing Color(Optional)
Black RAL9017(Standard) / White RAL9016 Optional
Material
Aluminum+Toughened Glass
Lifespan/hrs
62.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles 100,000 Times
Certificate
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

High Lumen LED Lamp 100W Modular LED Sports Stadium Light with 1-10V PWM DALI Zigbee Dimming Control 4
Character/Power
100W
150W
200W
240W
300W
High Lumen LED Lamp 100W Modular LED Sports Stadium Light with 1-10V PWM DALI Zigbee Dimming Control 5
A / mm
389
389
437
493
582
B / mm
297
297
346
379
444
C / mm
57
57
57
57
60

High Lumen LED Lamp 100W Modular LED Sports Stadium Light with 1-10V PWM DALI Zigbee Dimming Control 6
High Lumen LED Lamp 100W Modular LED Sports Stadium Light with 1-10V PWM DALI Zigbee Dimming Control 7
High Lumen LED Lamp 100W Modular LED Sports Stadium Light with 1-10V PWM DALI Zigbee Dimming Control 8
High Lumen LED Lamp 100W Modular LED Sports Stadium Light with 1-10V PWM DALI Zigbee Dimming Control 9High Lumen LED Lamp 100W Modular LED Sports Stadium Light with 1-10V PWM DALI Zigbee Dimming Control 10
High Lumen LED Lamp 100W Modular LED Sports Stadium Light with 1-10V PWM DALI Zigbee Dimming Control 11

High Lumen LED Lamp 100W Modular LED Sports Stadium Light with 1-10V PWM DALI Zigbee Dimming Control 12

High Lumen LED Lamp 100W Modular LED Sports Stadium Light with 1-10V PWM DALI Zigbee Dimming Control 13

High Lumen LED Lamp 100W Modular LED Sports Stadium Light with 1-10V PWM DALI Zigbee Dimming Control 14

High Lumen LED Lamp 100W Modular LED Sports Stadium Light with 1-10V PWM DALI Zigbee Dimming Control 15

High Lumen LED Lamp 100W Modular LED Sports Stadium Light with 1-10V PWM DALI Zigbee Dimming Control 16
Model No.
Net Weight/Kg
Outer Carton Size/mm
Gross Weight/Kg
QTY”/CTN
DR-FL050-CGXX
3.6
355*350*165
4.5
1PCS/CTN
DR-FL100-CGXX
3.8
355*350*165
4.7
1PCS/CTN
DR-FL150-CGXX
4.5
415*410*175
5.8
1PCS/CTN
DR-FL200-CGXX
5.7
475*470*195
7.3
1PCS/CTN
DR-FL300-CGXX
9.3
475*470*195
11.5
1PCS/CTN

High Lumen LED Lamp 100W Modular LED Sports Stadium Light with 1-10V PWM DALI Zigbee Dimming Control 17
High Lumen LED Lamp 100W Modular LED Sports Stadium Light with 1-10V PWM DALI Zigbee Dimming Control 18

High Lumen LED Lamp 100W Modular LED Sports Stadium Light with 1-10V PWM DALI Zigbee Dimming Control 19

High Lumen LED Lamp 100W Modular LED Sports Stadium Light with 1-10V PWM DALI Zigbee Dimming Control 20
