Name: Outdoor Waterproof 100W 150W 200W UFO High Bay Light with CE CB ASS TUV GS D-Mark For Warehouse And Workshop
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-HB100-CGXP
Price: 35.68 USD
Availability: InStock

Home Products LED Highbay Light

Outdoor Waterproof 100W 150W 200W UFO High Bay Light with CE CB ASS TUV GS D-Mark For Warehouse And Workshop

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB100-CGXP

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	35.68USD
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	100000PCS/Month

Contact Now

Detailed Product Description

Input Voltage:	AC100~277V 50/60Hz	Power Effciency:	140LPW
Power Factor:	0>.95	CRI:	>80Ra(>70Ra For Option)
Warranty:	5 Years	Material:	Aluminium+ PC
IP Rating:	IP65	Life Span:	50,000 Hours
Highlight:	high bay led shop lights , wireless led outdoor flood lights

Outdoor Waterproof 100W 150W 200W UFO High Bay Light with CE CB ASS TUV GS D-Mark For Warehouse And Workshop

UFO LED High Bay Light Production Advantage:

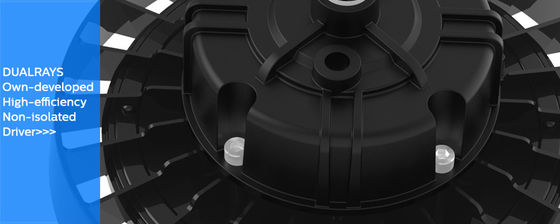

> DUALRAYS own-developed built-in driver,slim design,compact and durable;

> Adjustable ripple-lens optic with 60°/90°/120° beam angle;

> IP65 and IK08 for all industrial areas of application;

> Die-casting Al for excellent heat dissipation;

> Customized supported for special projects.

> 5 years warranty;

Finishing Color (Optional)	Black RAL 9017 ; White RAL9016
Emergency(Optional)	Available
CCT/K	3000~6500K
CRI(Ra)	>80Ra(>70Ra for option)
Input Wattage	AC 100~277V 50/60Hz
IP Rating	IP65
Lumen Output/lm	14000±5%
IK Rating	IK08
Lifespan Time	>50000hours
Operation Temp℃	-40℃~60℃
Sensor (Optional)	Daylights Sensor
Systems Wattage	100W

> Factories / Warehouses /Workshops

> Exhibitions & showrooms

> Barns and riding halls

> High rooms and halls

> Traditional lamp replacement
Outdoor Waterproof 100W 150W 200W UFO High Bay Light with CE CB ASS TUV GS D-Mark For Warehouse And Workshop 1

Outdoor Waterproof 100W 150W 200W UFO High Bay Light with CE CB ASS TUV GS D-Mark For Warehouse And Workshop 2

Character/Power	100W	150W	200W
A	φ241mm	φ298mm	φ350mm
B	149mm	164mm	170mm

Outdoor Waterproof 100W 150W 200W UFO High Bay Light with CE CB ASS TUV GS D-Mark For Warehouse And Workshop 4

Outdoor Waterproof 100W 150W 200W UFO High Bay Light with CE CB ASS TUV GS D-Mark For Warehouse And Workshop 5

Outdoor Waterproof 100W 150W 200W UFO High Bay Light with CE CB ASS TUV GS D-Mark For Warehouse And Workshop 7

Outdoor Waterproof 100W 150W 200W UFO High Bay Light with CE CB ASS TUV GS D-Mark For Warehouse And Workshop 9

Outdoor Waterproof 100W 150W 200W UFO High Bay Light with CE CB ASS TUV GS D-Mark For Warehouse And Workshop 10

Outdoor Waterproof 100W 150W 200W UFO High Bay Light with CE CB ASS TUV GS D-Mark For Warehouse And Workshop 19

Outdoor Waterproof 100W 150W 200W UFO High Bay Light with CE CB ASS TUV GS D-Mark For Warehouse And Workshop 20

Outdoor Waterproof 100W 150W 200W UFO High Bay Light with CE CB ASS TUV GS D-Mark For Warehouse And Workshop 21

Outdoor Waterproof 100W 150W 200W UFO High Bay Light with CE CB ASS TUV GS D-Mark For Warehouse And Workshop 22

Outdoor Waterproof 100W 150W 200W UFO High Bay Light with CE CB ASS TUV GS D-Mark For Warehouse And Workshop 23

1.What’s the meaning of “Beam Angle “?

RE: The spread of light from a luminaire. For example: a fitting such as a low bay ,which is closer to the floor,will have a wider beam angle to illuminate a given floor area while a high bay fitting will have a narrower beam.

2.How do we explain “CRI” ?

RE: A measure of the degree of colour shift objects undergo when illuminated by the light source as compared with those same objects when illuminated by a reference source of comparable colour temperature. The reference source has a CRI of 100.

3.How to explain “Flux/luminous Flux “?

RE: Luminous flux is the measure of the perceived power of light produced by the LED, adjusting to reflect the varying sensitivity of the human eye to different wavelengths of light.

4.What’s Lumen?

RE: The international (SI) unit of luminous flux or quantity of light and equals the amount of light that is spread over a square foot of surface by one candle power when all parts of the surface are exactly one foot from the light source.

5.How to explain “luminous Efficacy“ ?

RE: A measure of how well a light source products visible light expressed as lumens /Watt.
