| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS/OEM |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-FL100-CGXP |
| Minimum Order Quantity: | 2PCS |
|---|---|
| Price: | Negotiated After Inquiry |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 Bussiness Day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000PCS/Month |
| Material: | Aluminium Alloy +PC | Input Voltage: | AC100～277V 50/60Hz |
|---|---|---|---|
| Optics: | 10°/25°/45°/60°/90°/30*70°/80*140°/60*130°beam Angle Optional | Anti-fire: | D-Mark Tested For The Use In Paper Production, Wood Processing Etc |
| Health: | No UV Or IR And Completely Mercury Free | CCT: | 3000/4000/5700/6500K±200K |
| Efficiency: | 150LPW | Power Factor: | >0.95 |
| Power Efficiency: | >92% | Guarantee: | 5 Years |
| Highlight: | outdoor led flood lights,waterproof led flood lights |
||

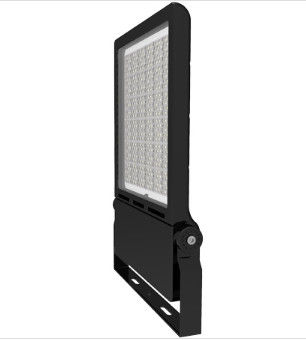

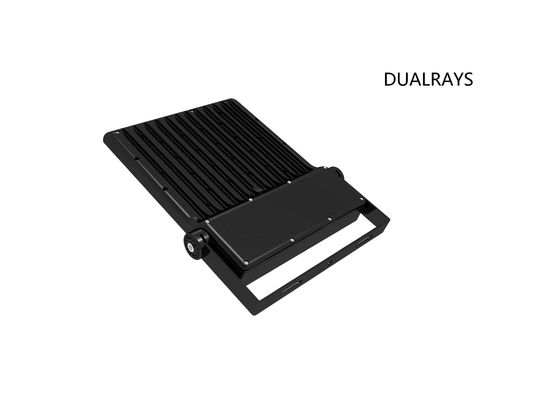

180 Degree Adjustable Outdoor Fixture Football Court Lighting 500 Watts Modular LED Flood Light
| Model No. | DR-FL100-CGXP | ||||||
| System Watts/W | 100W | ||||||
| System Efficiency/LPW | 150LPW | ||||||
| Lumen Output/lm | 15.000±5% | ||||||
| Dimming(Optional) | 0/1-10V/PWM/DALI/Zigbee | ||||||
| Installation(Optional) | Ground Mounting, Wall Mounting, Ceiling Mounting,Pipe Mounting | ||||||
| Certificate | CE(EMC+LVD),RoHS,D-Mark,SAA,RCM Available | ||||||
| Finishing Color(Optional) | Black RAL9017 / White RAL9016 | ||||||
| Protection Class | ClassⅠ | ||||||
| LED Driver | Meanwell XLG/ELG/HLG,Sosen | ||||||
| Surge Protection | 6~10KV SPD Driver,Exterior SPD 10KV() or 20KV Meanwell Optional | ||||||
| Rated Input Voltage/V | AC100~277V 50/60Hz | ||||||
| LEDs Light Source | SMD3030 | ||||||
| SDCM | <6 | ||||||
| CCT/K | 3000K/4000K/5000K/5700K/6500K | ||||||
|
Model No.
|
DR-FL050-CGXX | DR-FL100-CGXX | DR-FL150-CGXX | DR-FL200-CGXX | DR-FL300-CGXX |
|
System Watts/W
|
50W | 100W | 150W | 200W |
300W
|
|
System Efficiency/LPW
|
120~125LPW | ||||
|
Lumen Output/lm
|
6.500±5% | 12.500±5% | 18.750±5% | 25.000±5% | 37.500±5% |
|
Rated Input Voltage/V
|
AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional) | ||||
|
LEDs Light Source
|
SMD3030 | ||||
|
SDCM
|
<5 | ||||
|
CCT/K
|
5000K for Standard (3000K/4000K/5700K/6500K Optional) | ||||
|
CRI/Ra
|
>70Ra (>80Ra for Option) | ||||
|
Power Factor
|
>0.95 | ||||
|
THD
|
<10% | ||||
|
Beam Angle(Optional)
|
Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional | ||||
|
UGR
|
<25 | ||||
|
Surge Protection
|
6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional | ||||
|
LED Driver
|
Sosen,Meanwell ELG / HLG Optional | ||||
|
IP Rating
|
IP65 | ||||
|
Dimming(Optional)
|
1-10V, DALI,PWM,Zigbee for Option | ||||
| Safety Protection | Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection | ||||
| Sensor (Optional) | Motion Sensor | ||||
|
Protection Class
|
ClassⅠ | ||||
|
Finishing Color(Optional)
|
Black RAL9017(Standard) / White RAL9016 Optional | ||||
|
Material
|
Aluminum+Toughened Glass | ||||
|
Lifespan/hrs
|
62.000 Hrs (Ta=30℃@L70) | ||||
|
Operation Temp/℃
|
40°C to + 50°C(-40°F to 122°F) | ||||
|
Storage Temp/℃
|
- 40°C to + 65°C(-40°F to 149°F) | ||||
| Switching Cycles | 100,000 Times | ||||
|
Certificate
|
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available | ||||
|
Character/Power
|
100W
|
150W
|
200W
|
240W
|
300W
|
|
|
A / mm
|
389
|
389
|
437
|
493
|
582
|
|
|
B / mm
|
297
|
297
|
346
|
379
|
444
|
|
|
C / mm
|
57
|
57
|
57
|
57
|
60
|
|
Model No.
|
Net Weight/Kg
|
Outer Carton Size/mm
|
Gross Weight/Kg
|
QTY”/CTN
|
|
DR-FL050-CGXX
|
3.6
|
355*350*165
|
4.5
|
1PCS/CTN
|
|
DR-FL100-CGXX
|
3.8
|
355*350*165
|
4.7
|
1PCS/CTN
|
|
DR-FL150-CGXX
|
4.5
|
415*410*175
|
5.8
|
1PCS/CTN
|
|
DR-FL200-CGXX
|
5.7
|
475*470*195
|
7.3
|
1PCS/CTN
|
|
DR-FL300-CGXX
|
9.3
|
475*470*195
|
11.5
|
1PCS/CTN
|
FAQ
Q1:What is a flood light?
RE:LED floodlights are lamps that specify that the illuminance on the illuminated surface is higher than the surrounding environment. Also called the spotlight. Normally, it can aim in any direction and has a structure that is not affected by weather conditions. It is mainly used for large-scale operation sites, general constructions, stadiums, overpasses, memorial monuments, parks and flower beds.
Floodlight (Floodlight), a floodlight is a point light source that can illuminate equally in all directions. Its illumination range can be adjusted arbitrarily, and it appears as a regular octahedron icon in the scene. Floodlights are the most common light source used in the production of function pictures. Standard floodlights are used to illuminate the entire scene.
Q2: What are the advantages of flood light?
RE:Advantages of LED flood light;
①High-purity aluminum reflector, the most accurate beam and the best reflection effect.
②Symmetrical narrow-angle, wide-angle and asymmetric light distribution systems.
③It is troublesome to change the light bulb with the open type behind.
④The lamps are equipped with a scale board to adjust the projection angle.
⑤It is suitable for lighting in large places and buildings.
