Name: HB4 UFO LED High Bay Light with Zigbee Wireless Control 1-10V DALI Dimming Motion or Daylight Sensor Emergency Function
Brand: HB4 UFO LED High Bay Light with Zigbee Wireless Control 1-10V DALI Dimming Motion or Daylight Sensor Emergency Function
SKU: DR-HB240-DG2
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (114 reviews)

Home Products UFO LED High Bay Light

HB4 UFO LED High Bay Light with Zigbee Wireless Control 1-10V DALI Dimming Motion or Daylight Sensor Emergency Function

Product Details:

Place of Origin:	Shenzhen,China
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB240-DG2

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiated After Inquiry
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Brand Name:	DUALRAYS/OEM	Certificate:	CE(EMC+LVD),RoHS,TUV/GS ,D-Mark,SAA,RCM Available
Power Optional:	100W/150W/200W/240W	Installation(Optional):	Loop Hanging, Ceiling Mounting, Wall Mounting,Pipe Mounting
CCT:	3000/4000/5700/6500K±200K	CRI:	>83Ra
Warranty:	5 Years	Driver:	Meanwell HBG(Round),ELG/HLG(Retangle),Sosen
Beam Angle:	60°/90°/120° Optional	Reflector Material:	PC/PMMA/Glass Optional
High Light:	high bay led shop lights , wireless led outdoor flood lights

HB4 UFO LED High Bay Light with Zigbee Wireless Control 1-10V DALI Dimming Motion or Daylight Sensor Emergency Function

HB4 UFO LED High Bay Light with Zigbee Wireless Control 1-10V DALI Dimming Motion or Daylight Sensor Emergency Function 0

HB4 UFO LED High Bay Light with Zigbee Wireless Control 1-10V DALI Dimming Motion or Daylight Sensor Emergency Function 6

Model No.	DR-HB100-DGXP	DR-HB150-DGXP	DR-HB200-DGXP	DR-HB240-DGXP
System Watts/W	100W	150W	200W	240W
System Efficiency/LPW	140LPW
Lumen Output/lm	14.000±5%	21.000±5%	28.000±5%	33.600±5%
Finishing Color(Optional)	Black RAL9017 / White RAL9016
Protection Class	ClassⅠ
LED Driver	Meanwell HBG/ELG/HLG,Sosen
Surge Protection	6~10KV SPD Driver,Exterior SPD 10KV() or 20KV Meanwell Optional
Rated Input Voltage/V	AC100~277V 50/60Hz
LEDs Light Source	SMD3030
SDCM	<6
CCT/K	3000K/4000K/5000K/5700K/6500K

> Highly brightness LUXEON SMD3030 LEDs,energy efficient - up to 160 lm/w;

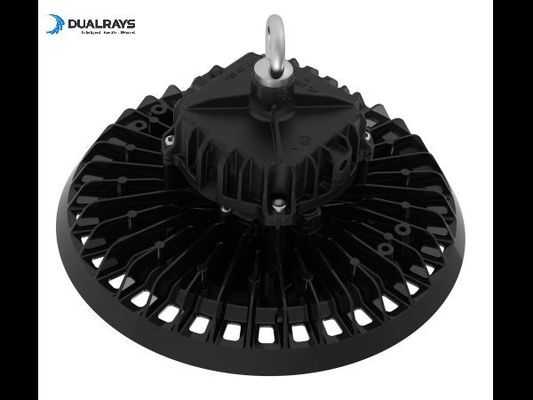

> Die-casting Al for excellent heat dissipation;

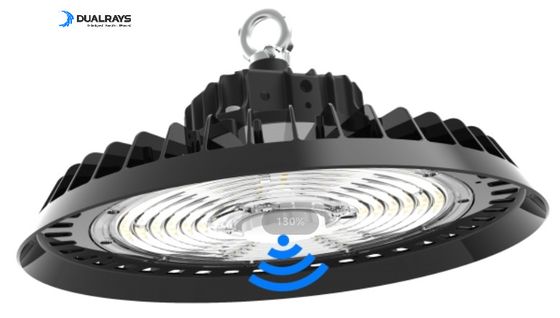

> Pluggable built-in radar motion sensor,plug and play;

> Superior PC reflector-optic for low glare applications,PMMA,glass cover available;

> IP65 and IK10 for all industrial areas of application;

> Driver and housing separated by spacers;

> Adjustable ripple-lens optic with 60°/90°/120° beam angle;

> D-Mark tested for the use in paper production, wood processing etc;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty;

Options:

> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen

> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.

> Reflector : PC reflector with / without cover.pipe mounting.

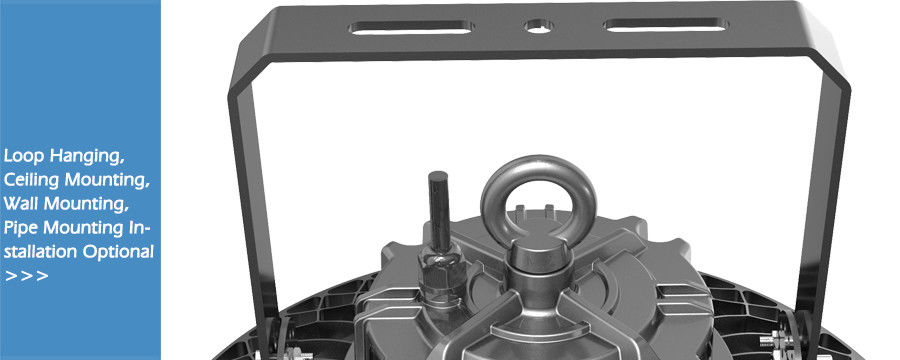

> Installation: loop hanging, ceiling mounting, wall mounting,

> Customized supported for special projects.

> Factories / Warehouses /Workshops

> Exhibitions & showrooms

> Barns and riding halls

> High rooms and halls

> Traditional lamp replacement

HB4 UFO LED High Bay Light with Zigbee Wireless Control 1-10V DALI Dimming Motion or Daylight Sensor Emergency Function 9

Character/Power	100W	150W	200W	240W
A	Ø320mm	Ø320mm	Ø390mm	Ø390mm
B	200mm	200mm	205mm	205mm

HB4 UFO LED High Bay Light with Zigbee Wireless Control 1-10V DALI Dimming Motion or Daylight Sensor Emergency Function 11

HB4 UFO LED High Bay Light with Zigbee Wireless Control 1-10V DALI Dimming Motion or Daylight Sensor Emergency Function 13

HB4 UFO LED High Bay Light with Zigbee Wireless Control 1-10V DALI Dimming Motion or Daylight Sensor Emergency Function 14

HB4 UFO LED High Bay Light with Zigbee Wireless Control 1-10V DALI Dimming Motion or Daylight Sensor Emergency Function 15

HB4 UFO LED High Bay Light with Zigbee Wireless Control 1-10V DALI Dimming Motion or Daylight Sensor Emergency Function 16

HB4 UFO LED High Bay Light with Zigbee Wireless Control 1-10V DALI Dimming Motion or Daylight Sensor Emergency Function 17

HB4 UFO LED High Bay Light with Zigbee Wireless Control 1-10V DALI Dimming Motion or Daylight Sensor Emergency Function 18

HB4 UFO LED High Bay Light with Zigbee Wireless Control 1-10V DALI Dimming Motion or Daylight Sensor Emergency Function 19

HB4 UFO LED High Bay Light with Zigbee Wireless Control 1-10V DALI Dimming Motion or Daylight Sensor Emergency Function 20
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!

Tag words: Driverless LED flood light , UFO LED high bay , LED troffer , LED area light , LED street light, Dualrays,LED Lichtband System,Linear LED High Bay,Linear LED Low Bay Light,Sport LED Flood Light,LED High Mast Light
