Industrial Warehouse Lighting DUALRAYS HB4 Pluugable Motion Sensor UFO LED High Bay Light

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB200-DG2

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiated After Inquiry
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Material:	Aluminium Alloy + PC	System Power:	100W / 150W /200W /240W Optional
Dimming:	1-10V, DALI,Zigbee	CCT:	3000/4000/5700/6500K±200K
Sensor:	Pluggable Motion Sensor, Daylight Sensor	Emergency:	Avaialable
Installation:	Loop Hanging, Ceiling Mounting, Wall Mounting, Pipe Mounting	Support:	Customized Supported For Special Projects
High Light:	high bay led shop lights , wireless led outdoor flood lights

Industrial Warehouse Lighting DUALRAYS HB4 Pluugable Motion Sensor UFO LED High Bay Light

> Highly brightness LUXEON SMD3030 LEDs,energy efficient - up to 160 lm/w;

> Die-casting Al for excellent heat dissipation;

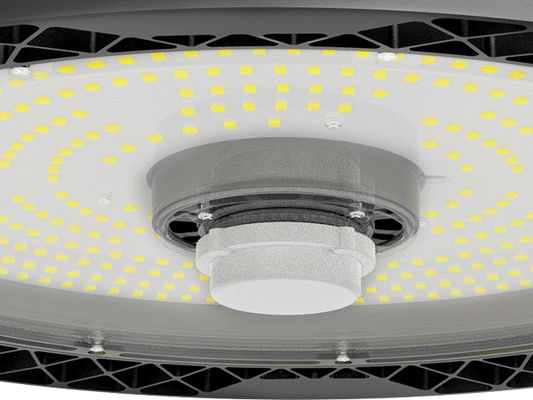

> Pluggable built-in radar motion sensor,plug and play;

> Superior PC reflector-optic for low glare applications,PMMA,glass cover available;

> IP65 and IK10 for all industrial areas of application;

> Driver and housing separated by spacers;

> Adjustable ripple-lens optic with 60°/90°/120° beam angle;

> D-Mark tested for the use in paper production, wood processing etc;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty;

Options:

> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen

> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.

> Reflector : PC reflector with / without cover.pipe mounting.

> Installation: loop hanging, ceiling mounting, wall mounting,

> Customized supported for special projects.

Character/Power	100W	150W	200W	240W
A	Ø320mm	Ø320mm	Ø390mm	Ø390mm
B	200mm	200mm	205mm	205mm

Model No.	DR-HB100-DGXP	DR-HB150-DGXP	DR-HB200-DGXP	DR-HB240-DGXP
System Watts/W	100W	150W	200W	240W
System Efficiency/LPW	140LPW
Lumen Output/lm	14.000±5%	21.000±5%	28.000±5%	33.600±5%
Rated Input Voltage/V	AC100~277V 50/60Hz
LEDs Light Source	SMD3030
SDCM	<6
CCT/K	3000K/4000K/5000K/5700K/6500K

Industrial Warehouse Lighting DUALRAYS HB4 Pluugable Motion Sensor UFO LED High Bay Light 5

Industrial Warehouse Lighting DUALRAYS HB4 Pluugable Motion Sensor UFO LED High Bay Light 7

Industrial Warehouse Lighting DUALRAYS HB4 Pluugable Motion Sensor UFO LED High Bay Light 8

Industrial Warehouse Lighting DUALRAYS HB4 Pluugable Motion Sensor UFO LED High Bay Light 9

Industrial Warehouse Lighting DUALRAYS HB4 Pluugable Motion Sensor UFO LED High Bay Light 10

Industrial Warehouse Lighting DUALRAYS HB4 Pluugable Motion Sensor UFO LED High Bay Light 11

Industrial Warehouse Lighting DUALRAYS HB4 Pluugable Motion Sensor UFO LED High Bay Light 12

Industrial Warehouse Lighting DUALRAYS HB4 Pluugable Motion Sensor UFO LED High Bay Light 13

Industrial Warehouse Lighting DUALRAYS HB4 Pluugable Motion Sensor UFO LED High Bay Light 14
