Name: HB4 LED High Bay Light with Innovative Pluggable Motion Sensor Zigbee Wireless Control 1-10V Dimming DALI Dimming
Brand: DUALRAYS
SKU: DR-HB150-DG2
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (116 reviews)

Home Products UFO LED High Bay Light

HB4 LED High Bay Light with Innovative Pluggable Motion Sensor Zigbee Wireless Control 1-10V Dimming DALI Dimming

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB150-DG2

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	Negotiated After Inquiry
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Brand:	DUALRAYS/OEM Brand	CCT:	3000/4000/5700/6500K±200K
CRI:	>83Ra	Power Factor:	>0.95
Power Efficiency:	>92%	Warranty:	5 Years
Power Optional:	100W/150W/200W/240W	Service:	Customized Supported For Special Projects
High Light:	led flat panel light fixture , wireless led outdoor flood lights

HB4 LED High Bay Light with Innovative Pluggable Motion Sensor Zigbee Wireless Control 1-10V Dimming DALI Dimming

HB4 LED High Bay Light with Innovative Pluggable Motion Sensor Zigbee Wireless Control 1-10V Dimming DALI Dimming 0

Model No.	DR-HB100-DGXP	DR-HB150-DGXP	DR-HB200-DGXP	DR-HB240-DGXP
System Watts/W	100W	150W	200W	240W
System Efficiency/LPW	140LPW
Lumen Output/lm	14.000±5%	21.000±5%	28.000±5%	33.600±5%
Finishing Color(Optional)	Black RAL9017 / White RAL9016
Protection Class	ClassⅠ
LED Driver	Meanwell HBG/ELG/HLG,Sosen
Finishing Color(Optional)	Black RAL9017 / White RAL9016
Operation Temp/℃	-40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	-40°C to + 65°C(-40°F to 149°F)
Installation(Optional)	Loop Hanging, Ceiling Mounting, Wall Mounting,Pipe Mounting
Certificate	CE(EMC+LVD),RoHS,TUV/GS ,D-Mark,SAA,RCM Available

> Highly brightness LUXEON SMD3030 LEDs,energy efficient - up to 160 lm/w;

> Die-casting Al for excellent heat dissipation;

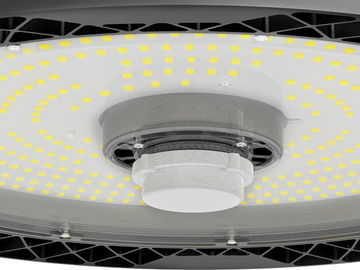

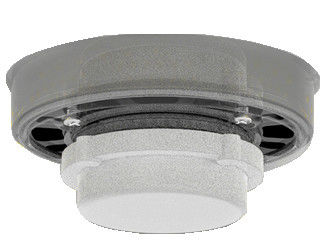

> Pluggable built-in radar motion sensor,plug and play;

> Superior PC reflector-optic for low glare applications,PMMA,glass cover available;

> IP65 and IK10 for all industrial areas of application;

> Driver and housing separated by spacers;

> Adjustable ripple-lens optic with 60°/90°/120° beam angle;

> D-Mark tested for the use in paper production, wood processing etc;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty;

Options:

> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen

> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.

> Reflector : PC reflector with / without cover.pipe mounting.

> Installation: loop hanging, ceiling mounting, wall mounting,

> Customized supported for special projects.

> Factories / Warehouses /Workshops

> Exhibitions & showrooms

> Barns and riding halls

> High rooms and halls

> Traditional lamp replacement

HB4 LED High Bay Light with Innovative Pluggable Motion Sensor Zigbee Wireless Control 1-10V Dimming DALI Dimming 4

Character/Power	100W	150W	200W	240W
A	Ø320mm	Ø320mm	Ø390mm	Ø390mm
B	200mm	200mm	205mm	205mm

HB4 LED High Bay Light with Innovative Pluggable Motion Sensor Zigbee Wireless Control 1-10V Dimming DALI Dimming 6

HB4 LED High Bay Light with Innovative Pluggable Motion Sensor Zigbee Wireless Control 1-10V Dimming DALI Dimming 8

HB4 LED High Bay Light with Innovative Pluggable Motion Sensor Zigbee Wireless Control 1-10V Dimming DALI Dimming 18

HB4 LED High Bay Light with Innovative Pluggable Motion Sensor Zigbee Wireless Control 1-10V Dimming DALI Dimming 19

HB4 LED High Bay Light with Innovative Pluggable Motion Sensor Zigbee Wireless Control 1-10V Dimming DALI Dimming 20

HB4 LED High Bay Light with Innovative Pluggable Motion Sensor Zigbee Wireless Control 1-10V Dimming DALI Dimming 21

HB4 LED High Bay Light with Innovative Pluggable Motion Sensor Zigbee Wireless Control 1-10V Dimming DALI Dimming 22

HB4 LED High Bay Light with Innovative Pluggable Motion Sensor Zigbee Wireless Control 1-10V Dimming DALI Dimming 23

HB4 LED High Bay Light with Innovative Pluggable Motion Sensor Zigbee Wireless Control 1-10V Dimming DALI Dimming 24

HB4 LED High Bay Light with Innovative Pluggable Motion Sensor Zigbee Wireless Control 1-10V Dimming DALI Dimming 25
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
