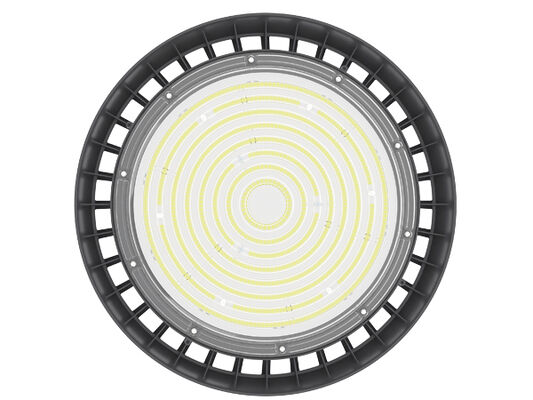

Heat Dissipation Led High Bay Light Fittings Die Cast Aluminum Material With 5 Years Warranty

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS/OEM/ODM/OBM Optional
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB200DNN-8XX-BCP-CGBX03
Document:	DUALRAYS HB3 LED High Bay L...pe.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Please send inquriy to info@DUALRAYS.com

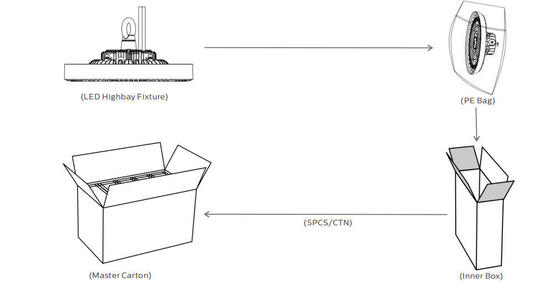

Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	100,000PCS/Month

Contact Now

Detailed Product Description

Power:	100W DIP(60/80W/100W) 150W DIP(100W/120W/150W) 200W DIP(120W/150W/200W) 240W DIP(150W/200W/240W)	LED Light Source:	LUMILEDS
CIR:	>80Ra For Standard (>90Ra For Higher CRI Available)	Material:	Die-cast Aluminum
CCT:	>80Ra For Standard (>90Ra For Higher CRI Available)	PF:	>0.97
Warranty:	5 Years	Beam Angle:	60° \| 90° \| 120° Optional
Highlight:	led flat panel light fixture , wireless led outdoor flood lights

Heat Dissipation Led High Bay Light Fittings Die Cast Aluminum Material With 5 Years Warranty

UFO LED High Bay Features:

> Highly brightness LUXEON SMD3030 LEDs,energy efficient - up to 160 lm/w;

> Die-casting Al for excellent heat dissipation;

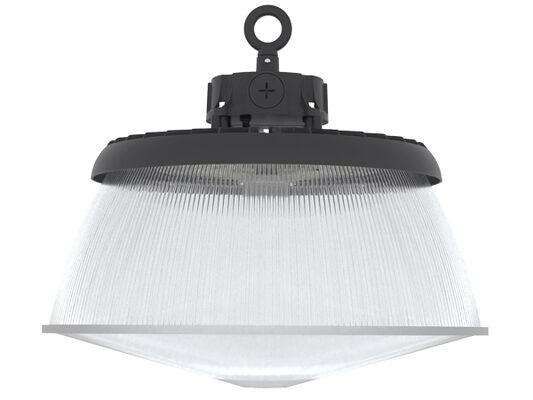

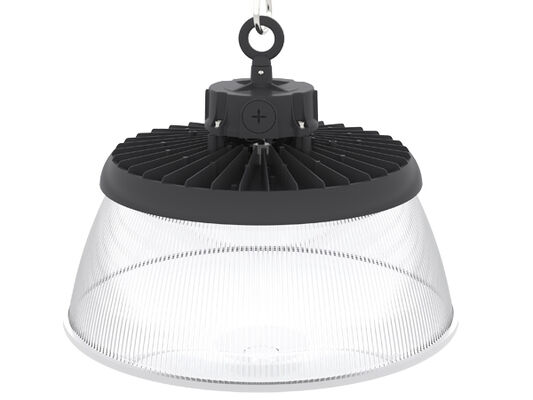

> Superior PC reflector-optic for low glare applications,PMMA,glass cover available;

> IP65 and IK10 for all industrial areas of application;

> Driver and housing separated by spacers;

> Adjustable ripple-lens optic with 60°/90°/120° beam angle;

> D-Mark tested for the use in paper production, wood processing etc;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty;

Dimming Function	1-10VDC /DALI / PIR Sensor
Protections	Short circuit/Over current/Over voltage/Over temperature
Anti-salty spray	Grade A
Color Index	>80Ra
Beam Angle Options	60°/120° for option
IP/Rating	IP65
AC Input Volage/V	AC100~277V 50/60Hz
Power Factor	PF>0.95
Starting Time	<0.1
SDCM	<5
Lumen Maintenance @ 6000 hrs	>95%
Switching Cycle before Failure	100,000
Installation Option	Bracket/Suspending
Surge Protection	10KA 20KV/20KA 20KV
Material	AL+PC
Life Span/hrs	>50000
Warranty	5 years
Operation Temperature	-40 ~ +55℃
Storage Temperature	-40 ~ +85℃

Heat Dissipation Led High Bay Light Fittings Die Cast Aluminum Material With 5 Years Warranty

140LPW High Efficiency 100W HB5 UFO LED High Bay Light IP65 5 Years Warranty

> Shipyards;

> Mines;

> Workshops;

> Warehouse;

> Highway toll stations;

> Gas stations;

> Supermarkets;

> Exhibition center;

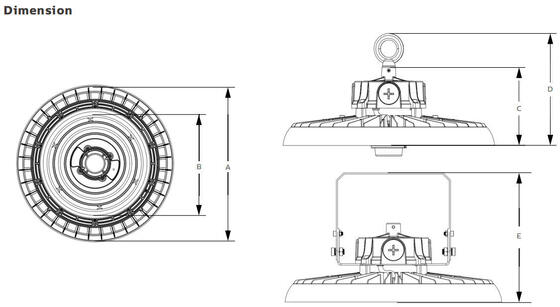

Character/Power	100W	150W	200W	240W
A	Ø350mm	Ø350mm	Ø420mm	Ø420mm
B	210mm	210mm	220mm	220mm

100W UFO LED High Bay Light Die Cast Aluminum Material 5 Years Guarantee

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

1.What’s Power factor ?

RE: The active power divided by the apparent power (i.e product of the rms input voltage and rms input current of a driver.)

2.What’s Smart Lighting ?

RE: Automated lighting control using sensors and /or scheduling switches.

3.What’s Watt ?

RE: The unit of electrical power as used by an electrical device during its operation. Many lamps come with rating in watts to indicate their power consumption.

4.How to explain “ZigBee“ ?

RE: A low -power ,low date rate, local area wireless network; ideal for lighting control.

5.How to explain “lumen output “ ?

RE: The total lumens emitted of a light source, system, or solution.

6.How to explain “luminous Efficacy“ ?

RE: A measure of how well a light source products visible light expressed as lumens /Watt.

100W UFO LED High Bay Light Die Cast Aluminum Material 5 Years Guarantee
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
