| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-HB200-EG2 |
| Minimum Order Quantity: | 2PCS |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 Bussiness Day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000PCS/Month |
| Power: | 100W,150W,200W,240W,300W | LED Light Source: | LUMILEDS |
|---|---|---|---|
| CIR: | >80Ra | Material: | Die-cast Aluminum |
| CCT: | 3000K,4000K,5000K,5700K | PF: | >0.95 |
| Warranty: | 5 Years | Beam Angle: | 60°/90°/110° For Option |
| High Light: | led flat panel light fixture,wireless led outdoor flood lights |
||

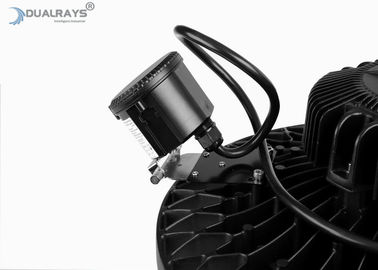

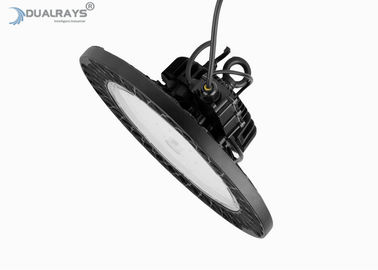

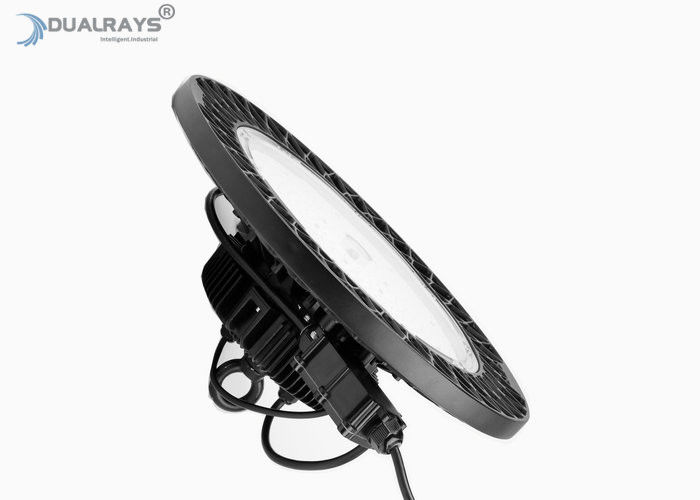

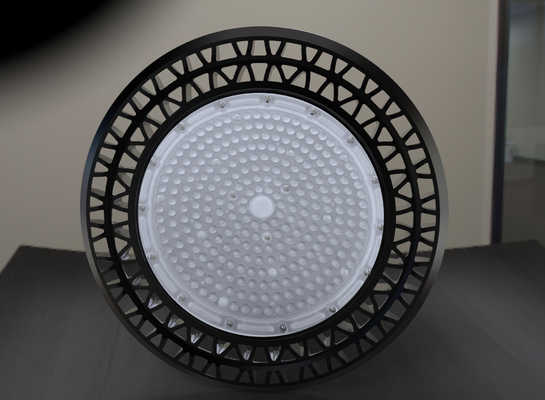

Warm White UFO LED High Bay Light 200W Robust Die Cast Aluminum Luminaire
UFO LED High Bay Features:
* High anti-corrosion grade WF2, can be used indoor and outdoor prevent corrosion environment;
* 90% efficiency reduces light significantly;
* With high-strength tempered glass and die-casting Aluminum shell, high shock-proof level IK08;
* Adjustable ripple-lens optic with 60°/90°/120° beam angle;
* L80/B10 @ 50.000
* Installation: Loop Hanging, Ceiling Mounting, Wall Mounting,pipe mounting;
| Item | Description |
| System Efficiency/LPW | 140LPW |
| Finishing Color(Optional) | Black RAL9017 / White RAL9016 |
| CRI/Ra | >80Ra (>70Ra for Option) |
| LED Driver | Meanwell HBG/ELG/HLG,Sosen |
| LED Chips | SMD3030 PHILIP LUMILEDS LEDs |
| Optic Lens | 60°/90°/110° |
| Rated Input Voltage/V | AC100~277V 50/60Hz |
| Installaion |
Loop Hanging, Ceiling Mounting, Wall Mounting,pipe mounting; Customized supported for special projects; |
> Shipyards;
> Mines;
> Workshops;
> Warehouse;
> Highway toll stations;
> Gas stations;
> Supermarkets;
> Exhibition center;
|
Character/Power
|
100W
|
150W
|
200W
|
240W
|
|
|
A
|
Ø350mm
|
Ø350mm
|
Ø420mm
|
Ø420mm
|
|
|
B
|
210mm
|
210mm
|
220mm
|
220mm
|
Q1: LEDs are more expensive than other lighting options,why ?
RE: LEDs can operate as stand alone devices,but when grouped or clustered they require additional steps to operate properly. LEDs need proper components such as a circuits can be designed rapidly, but to ensure that they operate correctly and for long periods of time they require testing.
Q2.What’s the meaning of “Beam Angle “?
RE: The spread of light from a luminaire. For example: a fitting such as a low bay ,which is closer to the floor,will have a wider beam angle to illuminate a given floor area while a high bay fitting will have a narrower beam.
Q3.Could i tell you what’s LED driver ?
RE: An electronic circuit that converts input power into a current source -a source in which current ramains constant despite fluctuations in voltage fluctuations ,overvoltages, and voltage spikes.
Q4.What’s LGP(PMMA)?
RE: A key component to maximize the uniformity of light, to make the backlight slim and to reorient the line or dot light source such as LED to the plate light source.
Q5. How many engineers of your R&D team?
RE: 10-15 R&D staffs with more than 10 years experience in LED luminaires industry
Q6. How is the export percentage?
RE: Above 85%-90%
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
