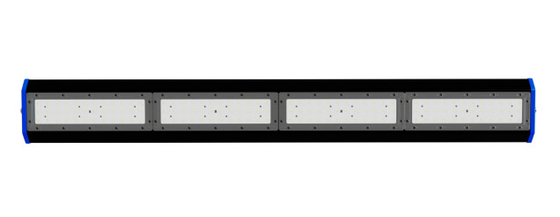

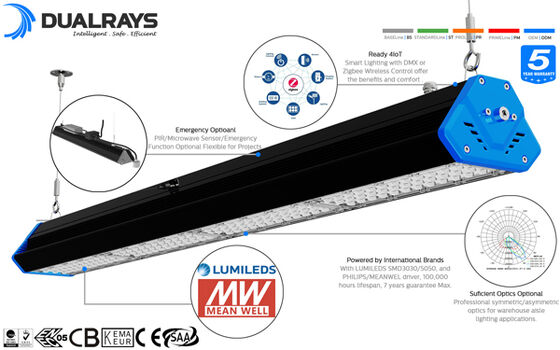

* 6063 Al Housing, Excellent Thermal Conductivity;
* Symmetric 30°/60°/90°, Asymmeric 30* 70°/80* 155°/60* 90°Optics Optional;
* SAN'AN High Brightness SMD3030 LEDs, DUALRAYS Owndeveloped Driver or SOSEN/MEANWELL Driver Optional;

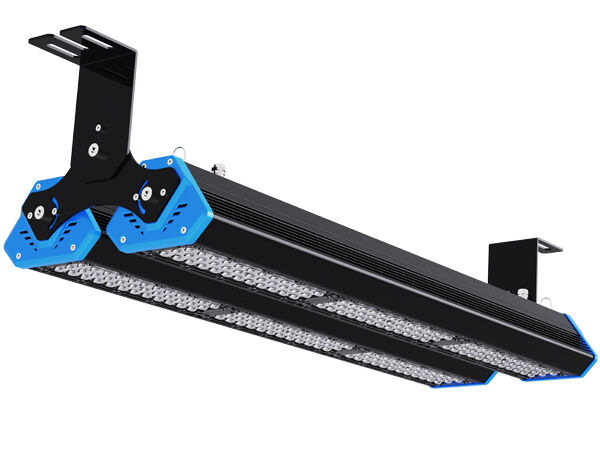

* Flexible 2 Rows or 3 Rows Combination with Bracket
* IP65 / IK10 Protection;
* 120° beam angle;
* Rectangular Light Distribution Pattern Perfectly Comply with Aisle;
* Corrosive Resistant Powder Coated Finish;
* Multiple Installations: Suspension, Wall Mounting;
* Various Intelligent Control: 1-10V, Motion sensor, Daylight sensor, Zigbee and Emergency
* No UV or IR and completely mercury free;
* L80/B10 @ 70.000h;
* Customized supported for special projects;
Options:
> Symmetric 30°/60°/90°, Asymmeric 30* 70°/80* 155°/60* 90°Optics Optional;
> Controls and Dimming: 1-10V, Motion sensor, Daylight sensor, Zigbee and Emergency;
> Installation: Suspension, Wall Mounting;
> Replacement for traditional HID or MH light source;

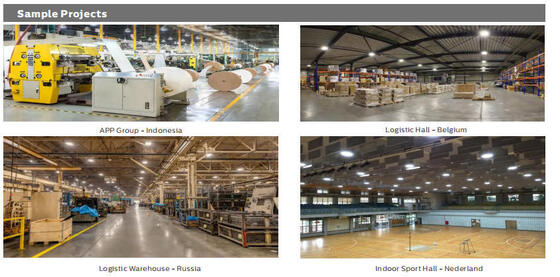

> Factory halls and production areas;
> Warehouses and logistics halls;
> Hardware stores and megastores;
> Stadiums and other sports facilities;
> Outdoor & Indoor Locations;
| Power/W Size A / mm Size B / mm Size C / mm |
| 50 284.8 134 110.5 |
| 100 542.9 134 110.5 |
| 150 801 134 110.5 |
| 200 1058.6 134 110.5 |
| 300 801 268 110.5 |
| General System |
Housing Material: High pressure die-cast ADC12 aluminium EN AC-43000, EN AC-43100, EN AC-43400, EN
AC-44100,EN AC-47100 according to the UNE EN 1706 standard powder coated. |
| Diffuser Material: Injected PC according to the UNE-EN ISO 294-2:2019 standard, UV filter conditional(IK08) |
| Housing Color: Metallic Black (RAL9017), Other colors optional |
| Sealing Gaskets: Silicone foam |
LEDs Thermal Dissipation: Through finless 6063 AL luminaire body, without conductive fluids. Passive convection dissipation
ensuring thermal contact with the LED modules through a high-conductivity Lead-free solder paste |
| Optical system: Lens optic |
Finish: Polyester powder paint coating, electrostatically sprayed and sublimated in the oven, Resistant to
corrosion. |
| Recommended Mounted Height: 5 - 20 meters |
| Maintenance: LED not exchangeable, driver exchangeable |
| Driver: Constant current, embedded in luminaire, pre-wired. |
| Dimming Control: ON-OFF | 1-10V dimming | DALI-2 | Zigbee |
| IP (Ingress Protection Rating): IP65 |
| IK (Impact Resistance): IK08 |
| Protective Class: Class Ⅰ |
| Glow Wire: 850°C (Under 30s) |
| Cable Gland: Plastic M20x1.5 – IP68 | Plastic M25x1.5 – IP68 (optional) |

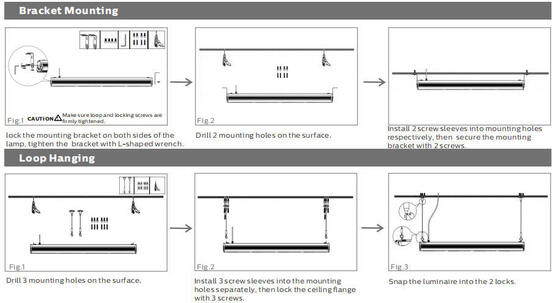

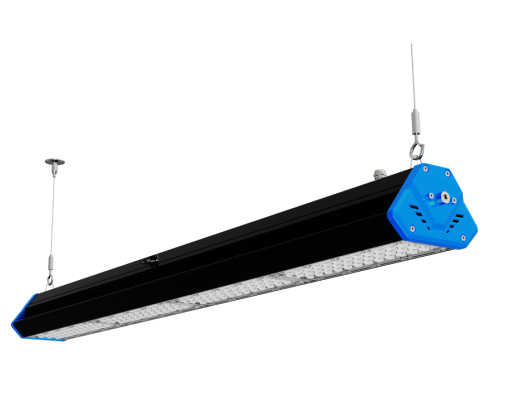

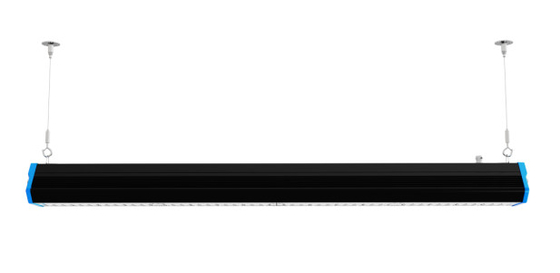

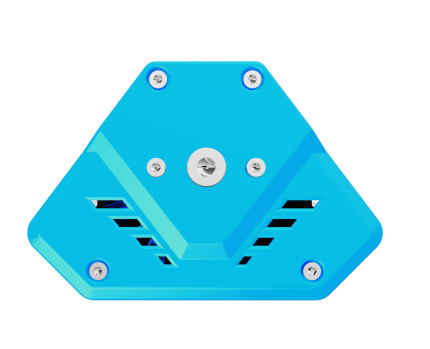

| Installation: Loop Hanging | Bracket Mounting |

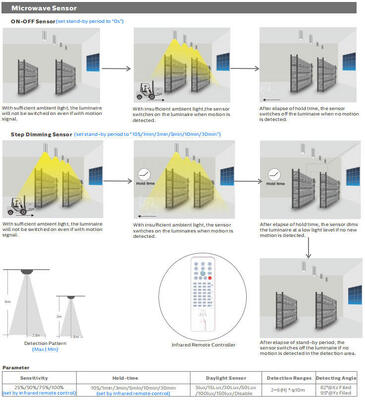

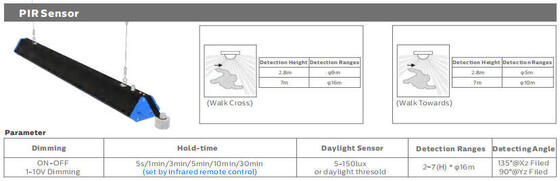

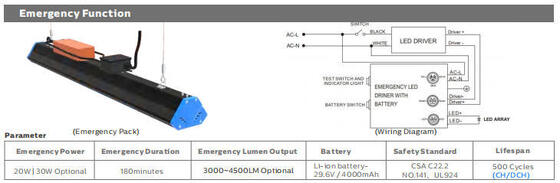

Smart Function: PIR Sensor with daylight threshold| Microwave Sensor with daylight threshold or daylight
harvesting| Emergency |
| Electrical System |
|
Through-wiring: 0.3m 3*1.0mm2 as stand, max 3x2.5mm2 + 2x1.5 mm2 dimming wire, free wire ends, tailored length
wire with EU/AU/US plug for option
|
| Main Voltage: 100~277VAC/ 50/60Hz, 140-280VDC |
| Power Factor (PF): ≥0.97 |
| Total Harmonic Distortion (THD): ＜20% |
| Output Type: Non-SELV(non-isolated) |
| Flicker Factor: ＜1% |
| Stroboscopic Visibility Measure (SVM): ＜0.4 |
| Perceptibility of Stroboscopic Effects (Pst): ＜1 |
TSPD (Optional): Type 2, 10kV and 20kA transient surge protector. Series connection with thermofuse
disconnector for a more effective protection at the end of its service life. |
| Luminaires Power B10A B16A C10A C16A |
| 50W 12 20 22 34 |
| 100W 6 10 11 17 |
| Module via LSS Circuit Breakers 150W 4 6 6 10 |
| 200W 3 5 6 8 |
| 300W 2 3 4 6 |
| Photometry System |
| LEDs: SMD3030(1W) |
| CCT(Correlated Color Temperature): Single CCT (3000K | 4000K | 5000K | 5700K |6500K) |
| CRI (Color Rendering Index): >80Ra for standard (>90Ra for higher CRI available) |
| Photobiological Safety: RG0 (exempt of risk) |
| EEC (Energy Effciency Class): A++ |
| SDCM (Standard Deviation of Color Matching): ＜5 (SDCM<3 Optional) |
|
UGR (4H, 8H) : 24.9 (Cross)
23.4 (Longitudinal)
|

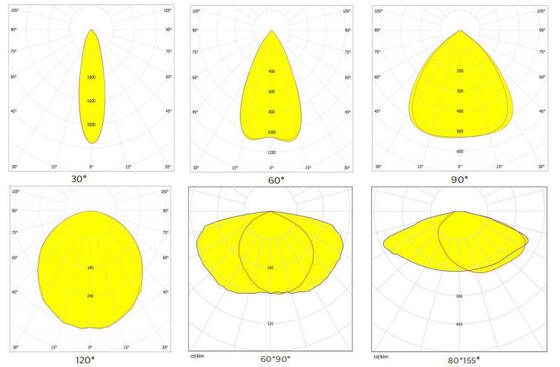

| Beam Angle: 30° |60° | 90° | 120° | 30*70° | 80*155 | 60*90° Optional |
| Average Luminaire Useful Lifetime: 70.000 hours (L80B10) |
| Lumen Maintenance at e.o.l. >70% |
| Luminous Efficacy: 150LPW (PROLine) |
| Rated Power: 50W 100W 150W 200W 300W |
Lumens Delivered
@ 5000K, CRl>80 (PRIME) 7.500lm 15.000lm 22.500lm 30.000lm 45.000lm |
| Operation Condition |
| Operation Temperature / Humidity: -20~ +60℃ (-4°F ~ 140°F) / 5~85% RH, not condensed |
| Storage Temperature / Humidity: -40~ +80℃ (-40°F ~ 176°F) / 5~85% RH, not condensed |
| Average LED Useful Time L90B10: ≥0.96 |
| Rated Nominal Lifetime (Tp <70℃): Up to 100,000H |
| Driver MTBF: 500.000H,MIL-HDBK-217F(25℃) |
| Vibration Resistant: 10~500Hz,5G 12min / 1cycle,period for 72min. Each along X,Y,Z axes |
| Acoustic Noise: ＜25dB (30cm disstance, Normal operation) |
| Guarantee: 5 Year (Extensible up to 7 years) |
| Certifications |
| Global Certificate: ENEC | CE | RoHS | D-mark | KEMA-KEUR Listed, SAA | C-Tick | RCM | CB | ETL/CETL | DLC Premium |
| Security Directives: EN 60598-1 | EN 60598-2-3 | EN 62493 | IEC 62471 |
| EMC Directives: EN 55015 | EN 61547 | EN 61000-3-2 | EN 61000-3-3 | EN 61347-2-13 | EN 61347-1 | EN 62384 |
| Other Directives: IEC 62262 | EN 13032-4 | EN 62717 | EN 6272-1 | EN6272-2-1 | EN 61643-11 |
* Luminous flux tolerance, Power tolerance and color temperature tolerance ±5%, 5000K and CRl>80.
* Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
* Up-to-date product info and general warranty terms available on our website www.DUALRAYS.com
* Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
* Values may be subject to change due to LED binning.
* The parameters in the data sheet are given for Ta=25°C, based on 4000K/80Ra, 10% efficiency higher with 70Ra

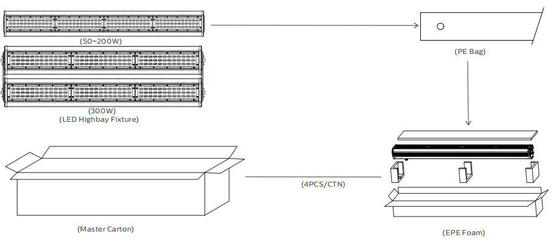

| Power/W Inner Box Outer Carton QTY”/CTN Unit N.W G.W/Carton |
| 50 Nil 325*490*380mm 4PCS 1.9Kg 9.2Kg |
| 100 Nil 577*490*380mm 4PCS 3.4Kg 15.2Kg |
| 150 Nil 828*490*380mm 4PCS 4.8Kg 21.2Kg |
| 200 Nil 1180*490*380mm 4PCS 7.5Kg 32.4Kg |
| 300 Nil 828*980*380mm 4PCS 9.7Kg 42.4Kg |
Please read all the instructions below before installation:
* To avoid electric shock, please ensure that the power supply is turned off before installation.
* The lamp should be installed and operated by a qualified electrician or technician in accordance with the National Electrical Code and corresponding local codes.
* Unpack and examine the lamp carefully, report any damage and save all packing materials if any portion of the product was damaged during transportation.
* If the lamp is damaged, do not use it!
Statement:
According to the International Standard of LED luminaire, here DUALRAYS formally claims that DUALRAYS LED Highbay Light (UFO Highbay) series products is only allowed to be applied to indoor or semi-outdoor neutral environment. Meanwhile DUALRAYS promises full warranty for the products.
Any severe environment application including high/low temperature, high humidity, high salinity, high-ammonia etc. is not permitted without the official confirmation from the manufacturer. If any misapplication happens, the warranty policy is no longer guaranteed.
