Name: UFO LED High Bay Light IP65 5 Years Warranty Support Loop hanging Ceiling mounting Wall mounting Installtion
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-HB200DNN-8XX-BCP-CGBX03
Price: negotiable USD
Availability: InStock

Home Products LED Highbay Light

UFO LED High Bay Light IP65 5 Years Warranty Support Loop hanging Ceiling mounting Wall mounting Installtion

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS/OEM/ODM/OBM Optional
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB200DNN-8XX-BCP-CGBX03
Document:	DUALRAYS HB3 LED High Bay L...pe.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Please send inquriy to info@DUALRAYS.com
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	100,000PCS/Month

Contact Now

Detailed Product Description

Warranty:	5 Years	Power Watts:	100W DIP(60/80W/100W) 150W DIP(100W/120W/150W) 200W DIP(120W/150W/200W)
CCT/K:	3CCT Optional (3000-4000-5000K \| 3000-4500-6000K \| 4000-5000-6000K For Choice)	Material:	Die-Casting Aluminum
Life Span:	56.000 Hours (L80B10)	Dimming Function:	ON-OFF \| 1-10V Dimming \| DALI-2 \| Zigbee
Highlight:	high bay led shop lights , wireless led outdoor flood lights

UFO LED High Bay Light IP65 5 Years Warranty Support Loop hanging Ceiling mounting Wall mounting Installtion

UFO LED High Bay Features:

> Highly brightness LUXEON SMD3030 LEDs,energy efficient - up to 160 lm/w;

> Die-casting Al for excellent heat dissipation;

> Superior PC reflector-optic for low glare applications,PMMA,glass cover available;

> IP65 and IK10 for all industrial areas of application;

> Driver and housing separated by spacers;

> Adjustable ripple-lens optic with 60°/90°/120° beam angle;

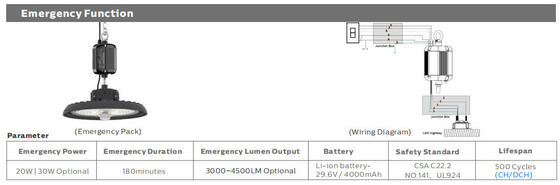

·Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.

> Reflector : PC reflector with / without cover.pipe mounting.

> Installation: loop hanging, ceiling mounting, wall mounting,

> Customized supported for special projects.

Item	Description
System Efficiency/LPW	140LPW
CRI/Ra	>80Ra (>70Ra for Option)
LED Driver	Meanwell HBG/ELG/HLG,Sosen
LED Chips	SMD3030 LUMILEDS LEDs
Optic Lens	60°/90°/110°
System Wattage	150W
Installaion	Loop Hanging, Ceiling Mounting, Wall Mounting,pipe mounting;

140LPW High Efficiency 100W HB5 UFO LED High Bay Light IP65 5 Years Warranty

> Shipyards;

> Mines;

> Workshops;

> Warehouse;

> Highway toll stations;

> Gas stations;

> Supermarkets;

> Exhibition center;

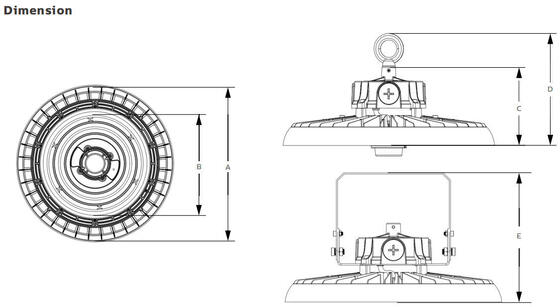

Character/Power	100W	150W	200W	240W
A	Ø350mm	Ø350mm	Ø420mm	Ø420mm
B	210mm	210mm	220mm	220mm

100W UFO LED High Bay Light Die Cast Aluminum Material 5 Years Guarantee

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

1.What’s Smart Lighting ?

RE: Automated lighting control using sensors and /or scheduling switches.

2.What’s Watt ?

RE: The unit of electrical power as used by an electrical device during its operation. Many lamps come with rating in watts to indicate their power consumption.

3.How to explain “ZigBee“ ?

RE: A low -power ,low date rate, local area wireless network; ideal for lighting control.

4.How to explain “lumen output “ ?

RE: The total lumens emitted of a light source, system, or solution.

5.How to explain “luminous Efficacy“ ?

RE: A measure of how well a light source products visible light expressed as lumens /Watt.

100W UFO LED High Bay Light Die Cast Aluminum Material 5 Years Guarantee
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
