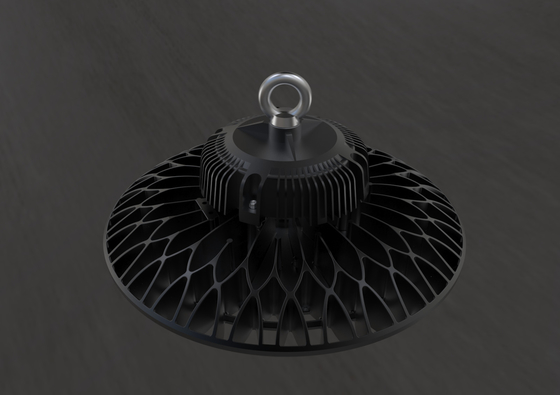

Name: Factory Anti Vapor 100W 140LPW UFO LED High Bay Bell Light IP65 IK08 Good Heat Dissipation
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-HB100-EGXP
Availability: InStock

Home Products HB2.5 UFO LED High Bay

Factory Anti Vapor 100W 140LPW UFO LED High Bay Bell Light IP65 IK08 Good Heat Dissipation

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB100-EGXP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Please inquiry for updated price
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Input Voltage:	AC100~277v 50/60Hz	Driver:	Meanwell/Sosen
LED Source:	SMD3030	PF:	0.95
CCT:	WW:3000±200K NW: 4000±200K DW:5700±200K CW: 6500±200K	Warranty:	5 Years
Beam Angle:	60°/90°/120°	Efficiency:	140LPW
Operation Temperature:	-40℃--50℃	Protection:	IP66; IK08
Highlight:	led flat panel light fixture , high bay led shop lights

Factory Anti Vapor 100W 140LPW UFO LED High Bay Bell Light IP65 IK08 Good Heat Dissipation

Factory Anti Vapor 100W 140LPW UFO LED High Bay Bell Light IP65 IK08 Good Heat Dissipation 0

> Adopting LUMILEDS SMD3030 LEDs light source, high Color Rendering Index (CRI>83Ra), excellent heat dissipation, low light decay;,energy efficient - up to 160 lm/w;

> Die casting Aluminum shell, good mechanical strength and heat dissipation, surface anti-corrosion coating processing, high anti-corrosion grade WF2;

> With high-strength tempered glass and die-casting Aluminum shell, high shock-proof level IK08;

> IP65 and IK10 for all industrial areas of application;

> Driver and housing separated by spacers;

> Optic lens with 60°/120° optional,with >90% efficiency reduces light significantly;

> D-Mark tested for the use in paper production, wood processing etc;

> No UV or IR and completely mercury free;

Options:

> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen

> Controls and Dimming

> Rod mounting, hook with chain mounting and heavy duty steel yoke mounting are available;

·Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.

> Reflector : PC reflector with / without cover.pipe mounting.

> Installation: loop hanging, ceiling mounting, wall mounting,

> Customized supported for special projects.

Why choosing DUALRAYS:

* Professional team: >10 years experience, own factory, >10 engineers team, powerful production capacity and QC management system, provide both good quality product and service;

* Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;

* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;

* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.

> Factories / Warehouses /Workshops

> Exhibitions & showrooms

> Barns and riding halls

> High rooms and halls

> Traditional lamp replacement

Factory Anti Vapor 100W 140LPW UFO LED High Bay Bell Light IP65 IK08 Good Heat Dissipation 3

Character/Power	100W	150W	200W	240W
A	Ø350mm	Ø350mm	Ø420mm	Ø420mm
B	210mm	210mm	220mm	220mm

Factory Anti Vapor 100W 140LPW UFO LED High Bay Bell Light IP65 IK08 Good Heat Dissipation 5

Factory Anti Vapor 100W 140LPW UFO LED High Bay Bell Light IP65 IK08 Good Heat Dissipation 7

DALI Device
Factory Anti Vapor 100W 140LPW UFO LED High Bay Bell Light IP65 IK08 Good Heat Dissipation 13

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

Factory Anti Vapor 100W 140LPW UFO LED High Bay Bell Light IP65 IK08 Good Heat Dissipation 17

Packaging Information

Shipment
Factory Anti Vapor 100W 140LPW UFO LED High Bay Bell Light IP65 IK08 Good Heat Dissipation 26
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Factory Anti Vapor 100W 140LPW UFO LED High Bay Bell Light IP65 IK08 Good Heat Dissipation 27

Q1: What is the warranty?

RE: For the HB5 Series LED high bay,Dualrays provide 5 years warranty.

Q2: Can I start with 1pcs?

RE: Yes. Sample order for testing welcome.

Q3: What is your production time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q4: Can I buy accessories from you?

RE: Yes, please contact us for details.

Q5: How's the labeling ?

RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).

Q6: Finish color?

RE: Standard colors: Black / White,other colors can be customized, based on MOQ 50PCS.

Q7:Can we get support if we have our own market position?

RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.

Welcome to contact us freely to get more information.

Factory Anti Vapor 100W 140LPW UFO LED High Bay Bell Light IP65 IK08 Good Heat Dissipation 28

Factory Anti Vapor 100W 140LPW UFO LED High Bay Bell Light IP65 IK08 Good Heat Dissipation 29

Factory Anti Vapor 100W 140LPW UFO LED High Bay Bell Light IP65 IK08 Good Heat Dissipation 30
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
