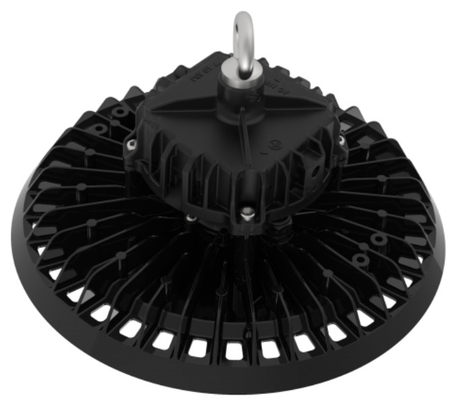

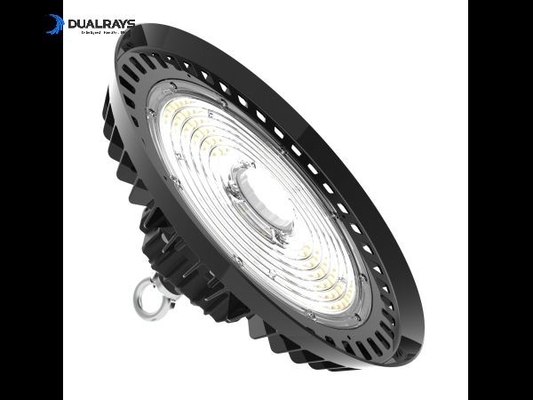

CE CB ASS IP65 UFO LED High Bay Light Superior IK10 PC Reflector-Optic For Low Glare Applications PMMA

CE CB ASS IP65 UFO LED High Bay Light Superior IK10 PC Reflector-Optic For Low Glare Applications PMMA

  • CE CB ASS IP65 UFO LED High Bay Light Superior IK10 PC Reflector-Optic For Low Glare Applications PMMA
  • CE CB ASS IP65 UFO LED High Bay Light Superior IK10 PC Reflector-Optic For Low Glare Applications PMMA
  • CE CB ASS IP65 UFO LED High Bay Light Superior IK10 PC Reflector-Optic For Low Glare Applications PMMA
  • CE CB ASS IP65 UFO LED High Bay Light Superior IK10 PC Reflector-Optic For Low Glare Applications PMMA
CE CB ASS IP65 UFO LED High Bay Light Superior IK10 PC Reflector-Optic For Low Glare Applications PMMA
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-HB100-DGXP
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 Bussiness Day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000PCS/Month
Contact Now
Detailed Product Description
Warranty: 5 Years Power: 100W,150W,200W,240W
CCT: WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K LED Light Source: OSRAM/CREE
CIR: >80Ra Material: Die-cast Aluminum
Life Span: 50000H Dimming Function: 1-10VDC /DALI / PIR Sensor
High Light:

led flat panel light fixture

,

wireless led outdoor flood lights

CE CB ASS IP65 UFO LED High Bay Light Superior IK10 PC Reflector-Optic For Low Glare Applications PMMA

UFO LED High Bay Light Production Advantage:



> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.

> Highly brightness LUXEON SMD3030 LEDs,energy efficient - up to 160 lm/w;
> Die-casting Al for excellent heat dissipation;

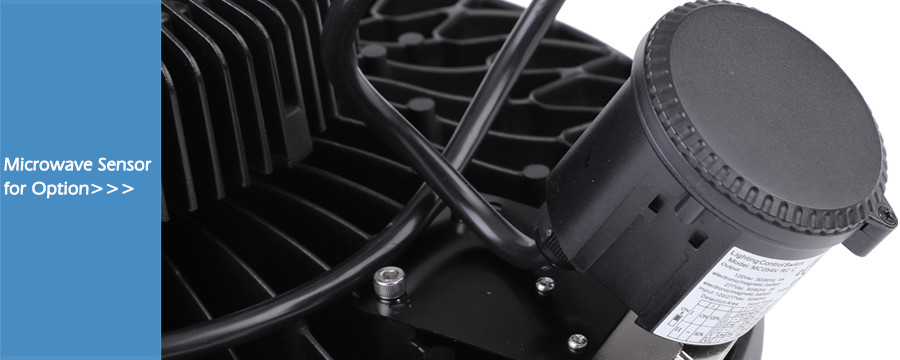

> Pluggable built-in radar motion sensor,plug and play;
> Superior PC reflector-optic for low glare applications,PMMA,glass cover available;
> IP65 and IK10 for all industrial areas of application;
> Driver and housing separated by spacers;

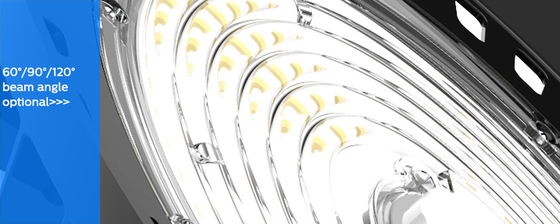

> Adjustable ripple-lens optic with 60°/90°/120° beam angle;
> D-Mark tested for the use in paper production, wood processing etc;
> No UV or IR and completely mercury free;
> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen
> Reflector : PC reflector with / without cover.pipe mounting.
> Installation: loop hanging, ceiling mounting, wall mounting,
> Customized supported for special projects.
> L80/B10 @ 50.000h;
> 5 years warranty;

After-Sales Service

a. 3 to 5 years quality warranty with lifelong maintenance.

b. Free guarantee repair (including labor and material): free repair service during the quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period. We will never exempt our responsibilities on product owned defects.

c. Responding time: upon receiving user’s notification, we ensure 24-hour after-sales technical support.

d. Spare parts: necessary spare parts are provided together with products to customers.

e. Free technical training: integrative and normative technology training is available for free to customers by our technical personnel to ensure they are skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.

HB4 LED High Bay Light with Innovative Pluggable Motion Sensor Zigbee Wireless Control 1-10V Dimming DALI Dimming

Model No. DR-HB100-DGXP DR-HB150-DGXP DR-HB200-DGXP DR-HB240-DGXP
System Watts/W 100W 150W 200W 240W
System Efficiency/LPW 140LPW
Lumen Output/lm 14.000±5% 21.000±5% 28.000±5% 33.600±5%
Finishing Color(Optional) Black RAL9017 / White RAL9016
UGR <25
LED Driver Meanwell HBG/ELG/HLG,Sosen
THD <10%
SDCM <6
Storage Temp/℃ -40°C to + 65°C(-40°F to 149°F)
Installation(Optional) Loop Hanging, Ceiling Mounting, Wall Mounting,Pipe Mounting
IK Rating IK10

200W HB4 Pluggable Motion Sensor UFO High Bay 160LPW Efficiency Meanwell HBG ELG HLG Driver Optional 5 Years Warranty





CE CB ASS IP65 UFO LED High Bay Light Superior IK10 PC Reflector-Optic For Low Glare Applications PMMA 2

Character/Power
100W
150W
200W
240W
CE CB ASS IP65 UFO LED High Bay Light Superior IK10 PC Reflector-Optic For Low Glare Applications PMMA 3
A / mm
Φ253
Φ308
Φ354
Φ405
B / mm
149
155
160
168

CE CB ASS IP65 UFO LED High Bay Light Superior IK10 PC Reflector-Optic For Low Glare Applications PMMA 4

CE CB ASS IP65 UFO LED High Bay Light Superior IK10 PC Reflector-Optic For Low Glare Applications PMMA 5

CE CB ASS IP65 UFO LED High Bay Light Superior IK10 PC Reflector-Optic For Low Glare Applications PMMA 6

CE CB ASS IP65 UFO LED High Bay Light Superior IK10 PC Reflector-Optic For Low Glare Applications PMMA 7

CE CB ASS IP65 UFO LED High Bay Light Superior IK10 PC Reflector-Optic For Low Glare Applications PMMA 8


200W HB4 Pluggable Motion Sensor UFO High Bay 160LPW Efficiency Meanwell HBG ELG HLG Driver Optional 5 Years Warranty
200W HB4 Pluggable Motion Sensor UFO High Bay 160LPW Efficiency Meanwell HBG ELG HLG Driver Optional 5 Years Warranty
200W HB4 Pluggable Motion Sensor UFO High Bay 160LPW Efficiency Meanwell HBG ELG HLG Driver Optional 5 Years Warranty
200W Industrial Warehouse Lighting Pluugable Motion Sensor UFO LED High Bay Light With 5 Years Warranty
200W Industrial Warehouse Lighting Pluugable Motion Sensor UFO LED High Bay Light With 5 Years Warranty

200W Industrial Warehouse Lighting Pluugable Motion Sensor UFO LED High Bay Light With 5 Years Warranty

HB4 UFO LED High Bay Light with Zigbee Wireless Control 1-10V DALI Dimming Motion or Daylight Sensor Emergency Function

HB4 UFO LED High Bay Light with Zigbee Wireless Control 1-10V DALI Dimming Motion or Daylight Sensor Emergency Function

HB4 UFO LED High Bay Light with Zigbee Wireless Control 1-10V DALI Dimming Motion or Daylight Sensor Emergency Function

HB4 UFO LED High Bay Light with Zigbee Wireless Control 1-10V DALI Dimming Motion or Daylight Sensor Emergency Function

HB4 UFO LED High Bay Light with Zigbee Wireless Control 1-10V DALI Dimming Motion or Daylight Sensor Emergency Function

HB4 UFO LED High Bay Light with Zigbee Wireless Control 1-10V DALI Dimming Motion or Daylight Sensor Emergency Function



HB4 UFO LED High Bay Light with Zigbee Wireless Control 1-10V DALI Dimming Motion or Daylight Sensor Emergency Function

200W HB4 Pluggable Motion Sensor UFO High Bay 160LPW Efficiency Meanwell HBG ELG HLG Driver Optional 5 Years Warranty
200W HB4 Pluggable Motion Sensor UFO High Bay 160LPW Efficiency Meanwell HBG ELG HLG Driver Optional 5 Years Warranty

200W HB4 Pluggable Motion Sensor UFO High Bay 160LPW Efficiency Meanwell HBG ELG HLG Driver Optional 5 Years Warranty
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

200W HB4 Pluggable Motion Sensor UFO High Bay 160LPW Efficiency Meanwell HBG ELG HLG Driver Optional 5 Years Warranty
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
