Place of Origin: | Shenzhen,China |
Brand Name: | DUALRAYS |
Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
Model Number: | DR-HB240-EG2 |
Minimum Order Quantity: | 2PCS |
---|---|
Price: | Negotiated |
Packaging Details: | Netural Package/OEM and ODM Package Available |
Delivery Time: | 5-15 Bussiness Day |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100,000PCS/Month |
Power: | 100W,150W,200W,240W | LED Light Source: | LUMILEDS |
---|---|---|---|
CIR: | >80Ra | Material: | Die-cast Aluminum |
CCT: | 3000K,4000K,5000K,5700K | PF: | >0.95 |
Warranty: | 5 Years | Beam Angle: | 60°/120° For Option |
High Light: | led flat panel light fixture,wireless led outdoor flood lights |

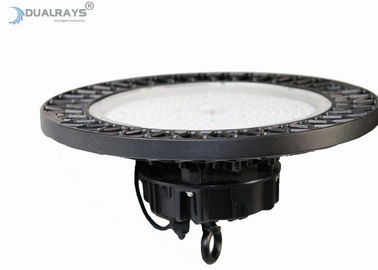

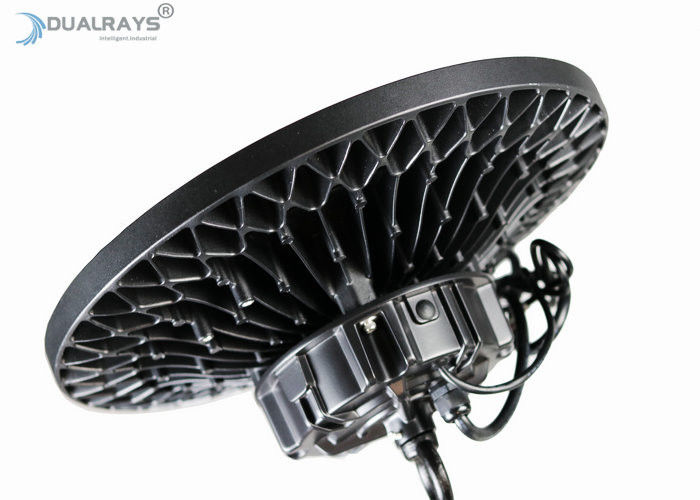

240W IP65 LED UFO High Bay Light High Efficiency 140LPW PIR Sensor
UFO LED High Bay Features:
* Good mechanical strength and heat dissipation;
* CE,RoHS listed,5 years warranty;
* AC100V~277V,50/60Hz input voltage;
* IP65 and IK10 for all industrial areas of application;
* High quality Meanwell/Sosen power supply;
* Die-casting Al for excellent heat dissipation.
Item | Description |
System Efficiency/LPW | 140LPW |
Finishing Color(Optional) | Black RAL9017 / White RAL9016 |
CRI/Ra | >80Ra (>70Ra for Option) |
LED Driver | Meanwell HBG/ELG/HLG,Sosen |
LED Chips | SMD3030 PHILIP LUMILEDS LEDs |
Optic Lens | 60°/90°/110° |
Rated Input Voltage/V | AC100~277V 50/60Hz |
Installaion |
Loop Hanging, Ceiling Mounting, Wall Mounting,pipe mounting; Customized supported for special projects; |
> Shipyards;
> Mines;
> Workshops;
> Warehouse;
> Highway toll stations;
> Gas stations;
> Supermarkets;
> Exhibition center;
Character/Power
|
100W
|
150W
|
200W
|
240W
|
|
A
|
Ø350mm
|
Ø350mm
|
Ø420mm
|
Ø420mm
|
|
B
|
210mm
|
210mm
|
220mm
|
220mm
|
Q1: Do you offer OEM or ODM?
RE: OEM and ODM service with customers is available,various choice as below:
1) We can provide you with our present products with your own label;
2) We can modify our products as your request;
3) We can even develop totally new products based on your design;
Q2: Finished color?
RE: Standard colors: Black / White,other colors can be customized, based on MOQ 50PCS.
Q3: LEDs are more expensive than other lighting options,why ?
RE: LEDs can operate as stand alone devices,but when grouped or clustered they require additional steps to operate properly. LEDs need proper components such as a circuits can be designed rapidly, but to ensure that they operate correctly and for long periods of time they require testing.
Q4.What’s the meaning of “Beam Angle “?
RE: The spread of light from a luminaire. For example: a fitting such as a low bay ,which is closer to the floor,will have a wider beam angle to illuminate a given floor area while a high bay fitting will have a narrower beam.
Q5.How important is IP ?
RE: Classifies and rates the degree of protection provided against intrusion (body parts such as hands and fingers), dust, accident contact, and water by mechanical casing and electrical enclosures.
Q6.What’s LED Chips ?
RE: The light producing semiconductor device that may or may not be incorporated into an LED.
