Place of Origin: | Shenzhen,China |
Brand Name: | DUALRAYS |
Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
Model Number: | DR-HB100-EG2 |
Minimum Order Quantity: | 2PCS |
---|---|
Price: | Negotiated |
Packaging Details: | Netural Package/OEM and ODM Package Available |
Delivery Time: | 5-15 Bussiness Day |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100,000PCS/Month |
Power: | 100W,150W,200W,240W,300W | LED Light Source: | LUMILEDS |
---|---|---|---|
CIR: | >80Ra | Material: | Die-cast Aluminum |
CCT: | 3000K,4000K,5000K,5700K,6500K | PF: | >0.95 |
Warranty: | 5 Years | Installation: | Loop Hanging, Ceiling Mounting, Wall Mounting,pipe Mounting |
High Light: | led flat panel light fixture,high bay led shop lights |

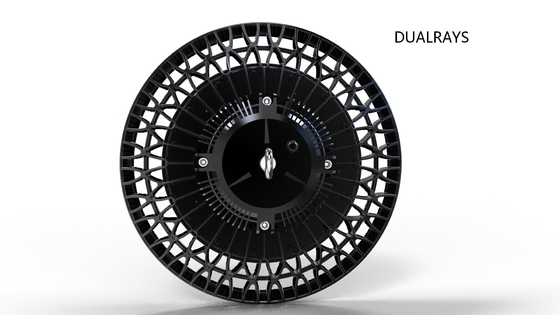

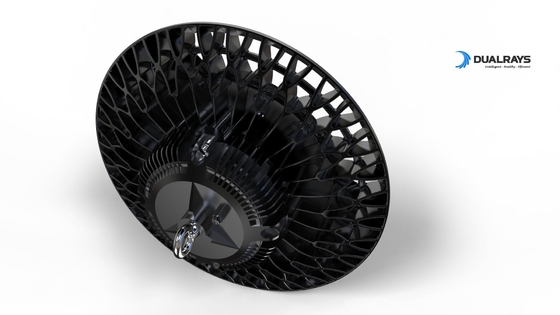

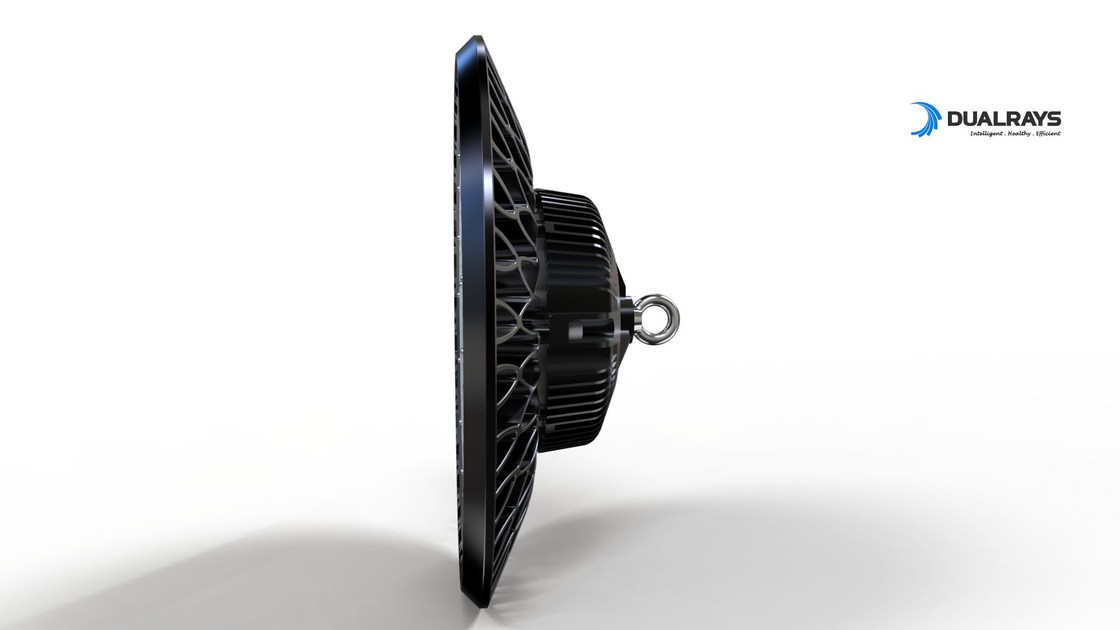

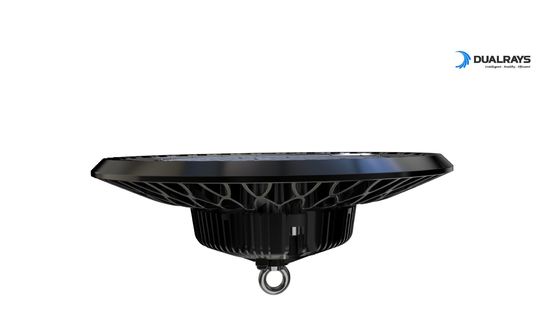

100W IP65 High Bay LED Shop Lights Warehouse Workshop Shipyard Application
UFO LED High Bay Features:
* Superior PC reflector-optic for low glare applications,PMMA,glass cover available;
* With high-strength tempered glass and die-casting Aluminum shell, high shock-proof level IK08;
* Good mechanical strength and heat dissipation;
* L80/B10 @ 50.000h;
* High Color Rendering Index (CRI>80);
* Customized supported for special projects.
Item | Description |
System Efficiency/LPW | 140LPW |
Finishing Color(Optional) | Black RAL9017 / White RAL9016 |
CRI/Ra | >80Ra (>70Ra for Option) |
LED Driver | Meanwell HBG/ELG/HLG,Sosen |
LED Chips | SMD3030 PHILIP LUMILEDS LEDs |
Optic Lens | 60°/90°/110° |
Rated Input Voltage/V | AC100~277V 50/60Hz |
Installaion |
Loop Hanging, Ceiling Mounting, Wall Mounting,pipe mounting; Customized supported for special projects; |
> Shipyards;
> Mines;
> Workshops;
> Warehouse;
> Highway toll stations;
> Gas stations;
> Supermarkets;
> Exhibition center;
Character/Power
|
100W
|
150W
|
200W
|
240W
|
|
A
|
Ø350mm
|
Ø350mm
|
Ø420mm
|
Ø420mm
|
|
B
|
210mm
|
210mm
|
220mm
|
220mm
|
Q1: Do you offer mounting accessories?
RE: Yes, please contact us for details.
Q2: Do you offer OEM or ODM?
RE: OEM and ODM service with customers is available,various choice as below:
1) We can provide you with our present products with your own label;
2) We can modify our products as your request;
3) We can even develop totally new products based on your design;
Q3: Does Dualrays have the ability to do independence and development ?
RE: Our engineer department have 12 people. We have the research and development capability. We also collect regularly each customer feedback. We have product improvement and new product development.
Q4: LEDs are more expensive than other lighting options,why ?
RE: LEDs can operate as stand alone devices,but when grouped or clustered they require additional steps to operate properly. LEDs need proper components such as a circuits can be designed rapidly, but to ensure that they operate correctly and for long periods of time they require testing.
Q5.What’s efficacy about the light ?
RE: The light output of a light source divided by the total electrical power input to that source, expressed in lumens per watt(lm/w).
Q6.How important is IP ?
RE: Classifies and rates the degree of protection provided against intrusion (body parts such as hands and fingers), dust, accident contact, and water by mechanical casing and electrical enclosures.
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
