Name: 100W LED UFO High Bay Light IP65 5 Years Warranty
Brand: DUALRAYS
SKU: DR-HB100-EG1
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (148 reviews)

Home Products UFO LED High Bay Light

100W LED UFO High Bay Light IP65 5 Years Warranty

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB100-EG1

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	Negotiable
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000PCS/Month

Contact Now

Detailed Product Description

Power:	100W,150W,200W,240W,300W	LED Light Source:	SMD3030
CIR:	>80Ra	Material:	Die-cast Aluminum
Beam Angle:	60°/120° For Option	UGR:	<25
High Light:	high bay led shop lights , wireless led outdoor flood lights

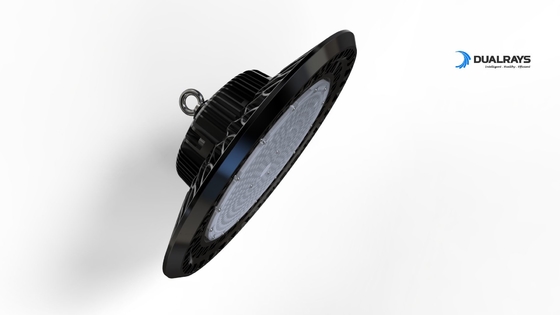

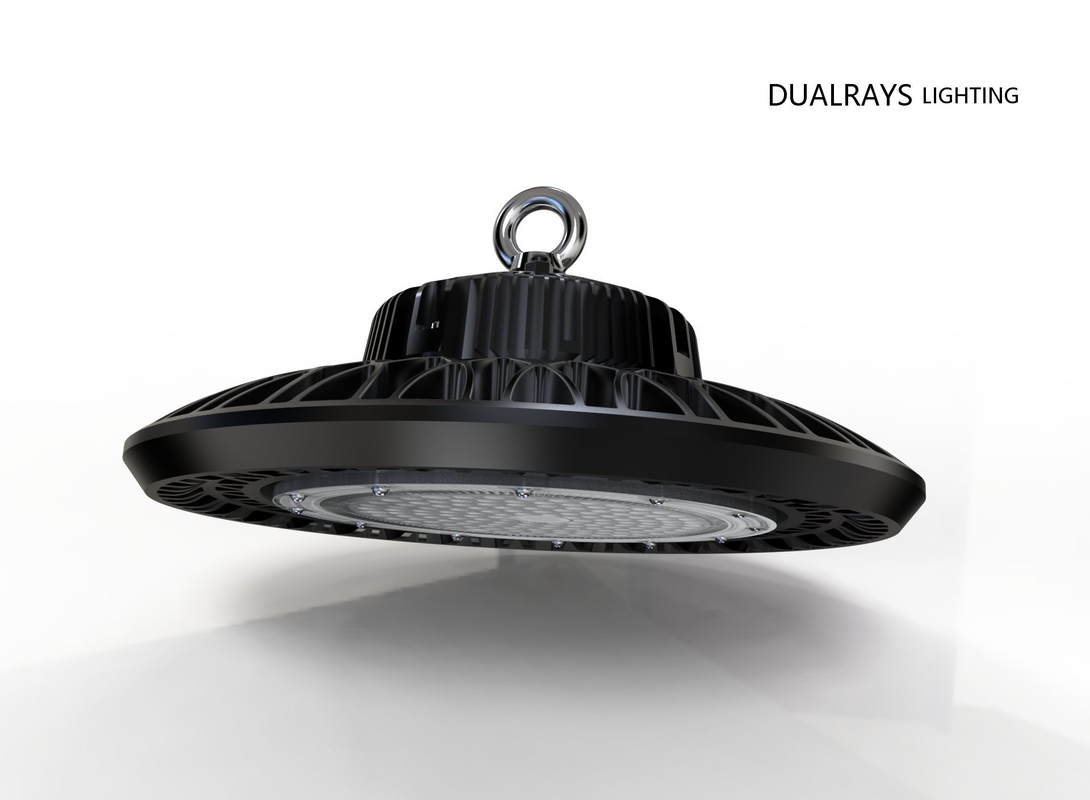

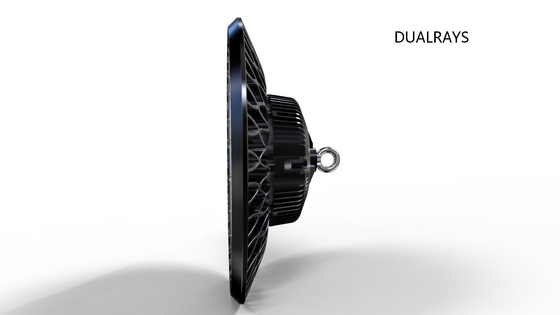

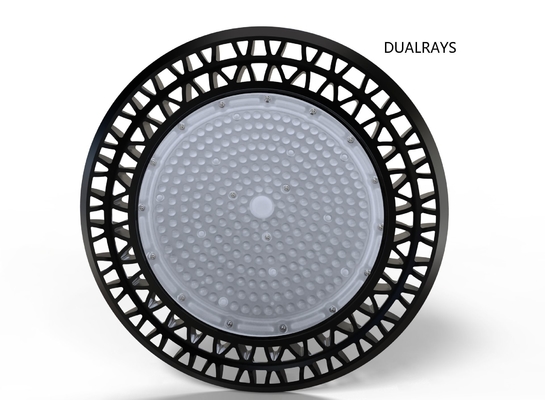

100W LED UFO High Bay Light IP65 5 Years Warranty

UFO LED High Bay Quick details:

* LUMILEDS LUXEON High Brightness SMD3030 LEDs,SOSEN/Meanwell Driver;

* IP65 Protection;

* 60°/90°(with lens)/120°(without lens) beam angle optional;

* IP65 Protection;

* D-Mark tested for the use in paper production,wood processing etc with toughened glass;
* Multiple installations: loop hanging, ceiling mounting, wall mounting,pipe mounting;
* Various intelligent control: 1-10V, DALI, Motion sensor, Daylight sensor,Zigbee and Emergency;
* Customized supported for special projects;

LED Driver	Meanwell/Sosen
Dimming (Optional)	0/1~10V/ DALI/Zigbee
Sensor(Optional)	Pluggable Motion Sensor/ Daylight Sensor
CRI(Ra)	>80Ra(>70Ra for option)
Input Wattage	AC 100~277V 50/60Hz
IP Rating	IP65
System Efficiency/LPW	140LPW
IK Rating	IK10
Systems Wattage	100W

140LPW High Efficiency 100W HB5 UFO LED High Bay Light IP65 5 Years Warranty 100W LED UFO High Bay Light IP65 5 Years Warranty 1

140LPW High Efficiency 100W HB5 UFO LED High Bay Light IP65 5 Years Warranty

> Shipyards;

> Mines;

> Workshops;

> Warehouse;

> Highway toll stations;

> Gas stations;

> Supermarkets;

> Exhibition center;

Character/Power	100W	150W	200W	240W
A	Ø350mm	Ø350mm	Ø420mm	Ø420mm
B	210mm	210mm	220mm	220mm

100W UFO LED High Bay Light Die Cast Aluminum Material 5 Years Guarantee

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

How to explain “Flux/luminous Flux “?

RE: Luminous flux is the measure of the perceived power of light produced by the LED, adjusting to reflect the varying sensitivity of the human eye to different wavelengths of light.

Why we use the high power LED ?

RE: A high power LED, sometimes referred to as a power LED, is one that is driven at current of 350mA or higher.

How to explain “illuminance“?

RE: The intensity of light falling on a surface area. If the area is measured in square feet, the unit of illuminance is footcandles(fc). If measured in square metres, the unit of illuminance is Lux.

What’s efficacy about the light ?

RE: The light output of a light source divided by the total electrical power input to that source, expressed in lumens per watt(lm/w).

How important is IP ?

RE: Classifies and rates the degree of protection provided against intrusion (body parts such as hands and fingers), dust, accident contact, and water by mechanical casing and electrical enclosures.

What’s LED Chips ?

RE: The light producing semiconductor device that may or may not be incorporated into an LED.

Could i tell you what’s LED driver ?

RE: An electronic circuit that converts input power into a current source -a source in which current ramains constant despite fluctuations in voltage fluctuations ,overvoltages, and voltage spikes.

What’s LGP(PMMA)?

RE: A key component to maximize the uniformity of light, to make the backlight slim and to reorient the line or dot light source such as LED to the plate light source.

What’s Lumen?

RE: The international (SI) unit of luminous flux or quantity of light and equals the amount of light that is spread over a square foot of surface by one candle power when all parts of the surface are exactly one foot from the light source.

What’s Power factor ?

RE: The active power divided by the apparent power (i.e product of the rms input voltage and rms input current of a driver.)

What’s Smart Lighting ?

RE: Automated lighting control using sensors and /or scheduling switches.

What’s Watt ?

RE: The unit of electrical power as used by an electrical device during its operation. Many lamps come with rating in watts to indicate their power consumption.

How to explain “ZigBee“ ?

RE: A low -power ,low date rate, local area wireless network; ideal for lighting control.

How to explain “lumen output “ ?

RE: The total lumens emitted of a light source, system, or solution.

How to explain “luminous Efficacy“ ?

RE: A measure of how well a light source products visible light expressed as lumens /Watt.

100W UFO LED High Bay Light Die Cast Aluminum Material 5 Years Guarantee
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
