| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-HB150-EG2 |
| Minimum Order Quantity: | 2PCS |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 Bussiness Day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000PCS/Month |
| Power: | 100W,150W,200W,240W,300W | LED Light Source: | SMD3030 |
|---|---|---|---|
| CIR: | >80Ra | Material: | Die-cast Aluminum |
| CCT: | 3000K,4000K,5000K,5700K,6500K | PF: | >0.95 |
| Warranty: | 5 Years | Beam Angle: | 60°/90°/110° For Option |
| High Light: | high bay led shop lights,wireless led outdoor flood lights |
||

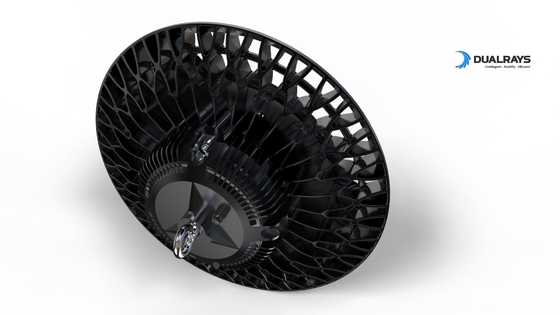

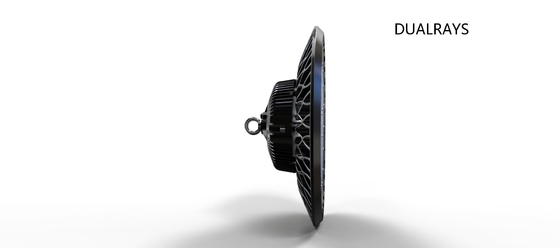

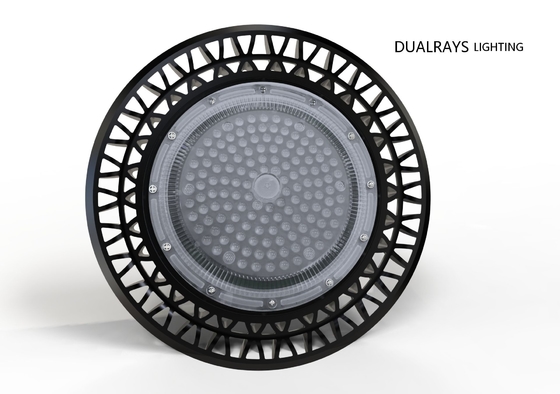

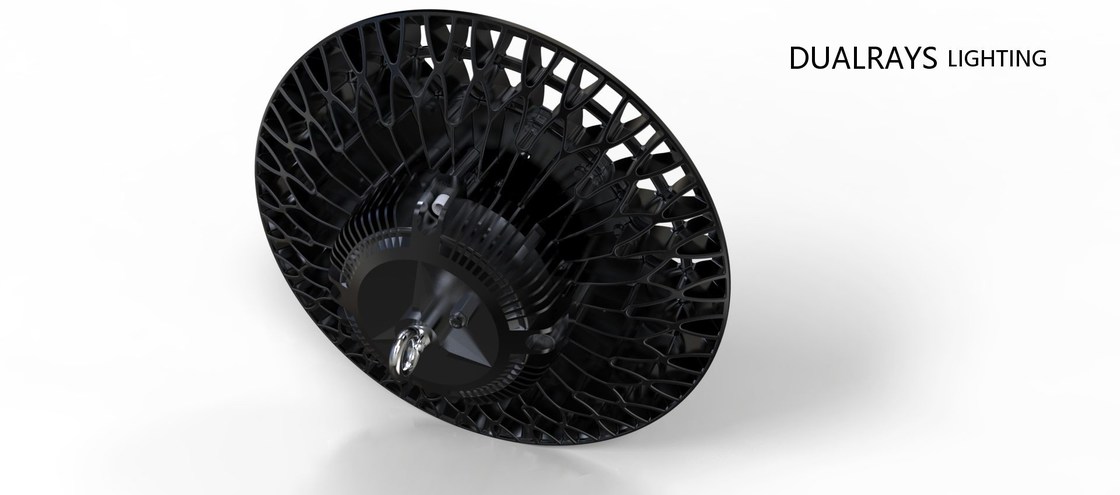

PFC Function UFO LED High Bay Light 150 Watt Die Cast Aluminum Luminaire Body
UFO LED High Bay Features:
* Robust die-cast aluminum luminaire body painted in epoxy powder coating in black;
* High output lighting efficiency 130-140LPW;
* CE,RoHS listed,5 years warranty;
* With high-strength tempered glass and die-casting Aluminum shell, high shock-proof level IK08;
* IP65 and IK10 for all industrial areas of application;
* Adjustable ripple-lens optic with 60°/90°/120° beam angle.
| Item | Description |
| System Efficiency/LPW | 140LPW |
| Finishing Color(Optional) | Black RAL9017 / White RAL9016 |
| CRI/Ra | >80Ra (>70Ra for Option) |
| LED Driver | Meanwell HBG/ELG/HLG,Sosen |
| LED Chips | SMD3030 PHILIP LUMILEDS LEDs |
| Optic Lens | 60°/90°/110° |
| Rated Input Voltage/V | AC100~277V 50/60Hz |
| Installaion |
Loop Hanging, Ceiling Mounting, Wall Mounting,pipe mounting; Customized supported for special projects; |
After-Sales Service
a. Free technical training: integrative and normative technology training is available for free to customers by our technical personnel to ensure they are skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.
b. Telephone investigation: our after-sales team will phone the user every month during the warranty period to follow up the working condition of the products, and to discover and solve problems, if necessary.
c. Software upgrade: lifelong maintenance of controlling system, incessant improvement of the system functions and continuous software upgrades.
d. Site instruction service of installation is available.
> Shipyards;
> Mines;
> Workshops;
> Warehouse;
> Highway toll stations;
> Gas stations;
> Supermarkets;
> Exhibition center;
|
Character/Power
|
100W
|
150W
|
200W
|
240W
|
|
|
A
|
Ø350mm
|
Ø350mm
|
Ø420mm
|
Ø420mm
|
|
|
B
|
210mm
|
210mm
|
220mm
|
220mm
|
Q1: Do you offer OEM or ODM?
RE: OEM and ODM service with customers is available,various choice as below:
1) We can provide you with our present products with your own label;
2) We can modify our products as your request;
3) We can even develop totally new products based on your design;
Q2: Can I have samples to test ?
RE: Yes,sure. Welcome to order samples for evaluation before bulk order.
Q3: LEDs are more expensive than other lighting options,why ?
RE: LEDs can operate as stand alone devices,but when grouped or clustered they require additional steps to operate properly. LEDs need proper components such as a circuits can be designed rapidly, but to ensure that they operate correctly and for long periods of time they require testing.
Q4.What’s CCT(colour temperature) ?
RE: The description used to describe the effect of heating an object until it grows incandescently. The emitted radiation, and apparent colour, changes proportional to the temperature; easily envisioned radiation, and apparent colour, changes proportional to the temperature; easily envisioned ,when considering hot meal in a forge that glows red, then orange, and then white as the temperature increases.
Q5.What’s efficacy about the light ?
RE: The light output of a light source divided by the total electrical power input to that source, expressed in lumens per watt(lm/w).
Q6.How to explain “lumen output “ ?
RE: The total lumens emitted of a light source, system, or solution.
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
