Name: Dualrays Led High Bay Light HB5 Series 200W 140LPW For Highway Toll Stations Industrial
Brand: DUALRAYS
SKU: DR-HB200-EGXP
Price: 1.00 USD
Availability: InStock
Rating: 5 (152 reviews)

Home Products UFO LED High Bay Light

Dualrays Led High Bay Light HB5 Series 200W 140LPW For Highway Toll Stations Industrial

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB200-EGXP

Payment & Shipping Terms:

Minimum Order Quantity:	5PCS
Price:	Please inquire for the latest price
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Input Voltage:	AC100~277V 50/60Hz	PE:	95%
PF:	0.95	Drive:	Meanwell/SOSEN
Life Span:	>50000h	Guarantee:	5 Years
IP Rating:	IP65	CCT:	3000/4000/5000/5700±200K
Operating Temperature:	-40 ~ +55℃	Power:	100W/150W/200W/240W/300W
High Light:	led flat panel light fixture , wireless led outdoor flood lights

Highway Toll Stations Industrial Led High Bay Lighting Dualrays HB5 Series 140LPW

Dualrays Led High Bay Light HB5 Series 200W 140LPW For Highway Toll Stations Industrial 0

DUALRAYS HB3 and HB5 UFO High Bay User Manual.pdf

> Highly brightness LUXEON SMD3030 LEDs,energy efficient - up to 160 lm/w;

> Die-casting Al for excellent heat dissipation;

> Superior PC reflector-optic for low glare applications,PMMA,glass cover available;

> IP65 and IK10 for all industrial areas of application;

> Driver and housing separated by spacers;

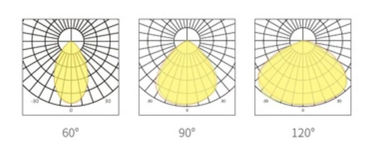

> Adjustable ripple-lens optic with 60°/90°/120° beam angle;

> D-Mark tested for the use in paper production, wood processing etc;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty;

Options:

> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen

> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.

> Reflector: PC reflector with / without cover.pipe mounting.

> Installation: loop hanging, ceiling mounting, wall mounting,

> Customized supported for special projects.

> Factories / Warehouses /Workshops

> Exhibitions & showrooms

> Barns and riding halls

> High rooms and halls

> Traditional lamp replacement

Dualrays Led High Bay Light HB5 Series 200W 140LPW For Highway Toll Stations Industrial 3

Character/Power	100W	150W	200W	240W
A	Ø350mm	Ø350mm	Ø420mm	Ø420mm
B	210mm	210mm	220mm	220mm

Dualrays Led High Bay Light HB5 Series 200W 140LPW For Highway Toll Stations Industrial 5

Dualrays Led High Bay Light HB5 Series 200W 140LPW For Highway Toll Stations Industrial 7

DALI Device
Dualrays Led High Bay Light HB5 Series 200W 140LPW For Highway Toll Stations Industrial 13

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

Dualrays Led High Bay Light HB5 Series 200W 140LPW For Highway Toll Stations Industrial 18

Dualrays Led High Bay Light HB5 Series 200W 140LPW For Highway Toll Stations Industrial 24

Q1: What is the warranty for the HB5 UFO high bay?

RE: For the HB5 Series LED high bay,Dualrays provide 5 years warranty.

Q2: What is the Lead time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q3: Can you do DIAlux Simulation?

RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

Q4: Labeling ?

RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).

Q5: Finish color?

RE: Standard colors: Black / White,other colors can be customized, based on MOQ 50PCS.

Q6: Dimming functions?

RE: DALI,PIR,1-10V diming available,built-in daylight sensor available for intellgent control for option.

Q7:Can we get support if we have our own market position?

RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.

If you want to know more, welcome to contact us freely.
