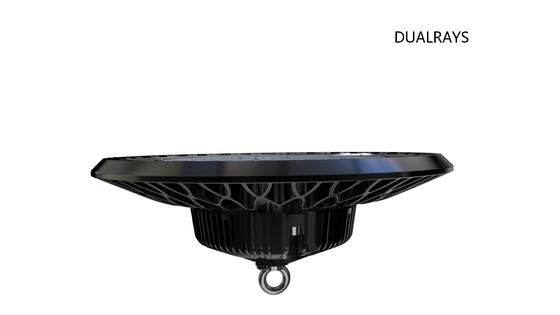

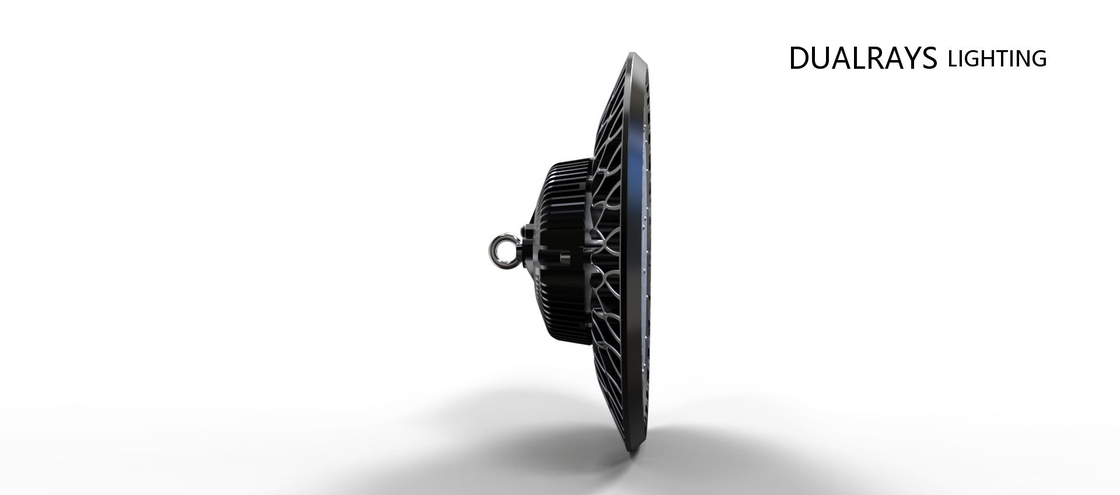

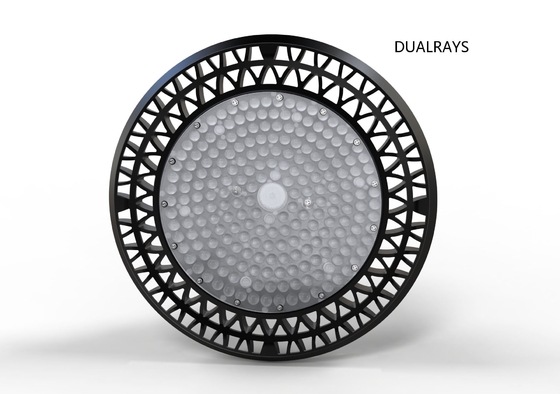

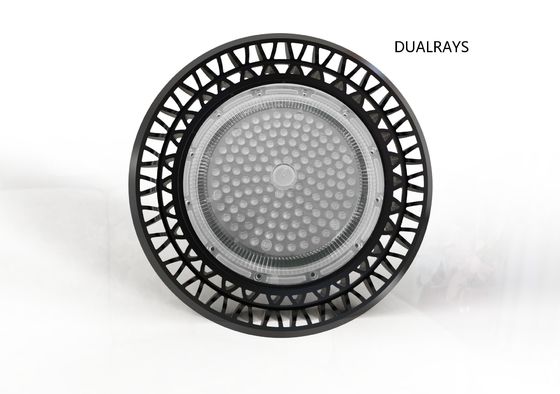

UFO LED High Bay Light 150W 140LPW WF2 Corrotion Prevent Factory Shipyard Mines

UFO LED High Bay Light 150W 140LPW WF2 Corrotion Prevent Factory Shipyard Mines

  • UFO LED High Bay Light 150W 140LPW WF2 Corrotion Prevent Factory Shipyard Mines
  • UFO LED High Bay Light 150W 140LPW WF2 Corrotion Prevent Factory Shipyard Mines
  • UFO LED High Bay Light 150W 140LPW WF2 Corrotion Prevent Factory Shipyard Mines
  • UFO LED High Bay Light 150W 140LPW WF2 Corrotion Prevent Factory Shipyard Mines
UFO LED High Bay Light 150W 140LPW WF2 Corrotion Prevent Factory Shipyard Mines
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS(OEM available)
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-HB150-EGXP
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS for sample welcomed
Price: Please inquire for the latest price
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 Bussiness Day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000PCS/Month
Contact Now
Detailed Product Description
Input Voltage: AC100V~277V 50/60Hz PF: 0.95
Drive: Meanwell/SOSEN CCT: WW:3000±200K NW:4000±200K DW:5000±200K CW:5700±200K
Life Span: >50000h Guarantee: 5 Years
IP Rating: IP65 Efficiency: 140LPW
Material: Aluminium Alloy 6063+PC/toughen Glass Beam Angle: 60°/90°/120°
High Light:

high bay led shop lights

,

wireless led outdoor flood lights

UFO LED High Bay Light 150W 140LPW WF2 Factory/Shipyard / Mines

UFO LED High Bay Light 150W 140LPW WF2 Corrotion Prevent Factory Shipyard Mines 0UFO LED High Bay Light 150W 140LPW WF2 Corrotion Prevent Factory Shipyard Mines 1

> Highly brightness LUXEON SMD3030 LEDs,energy efficient - up to 160 lm/w;
> Die-casting Al for excellent heat dissipation;
> Superior PC reflector-optic for low glare applications,PMMA,glass cover available;
> IP65 and IK10 for all industrial areas of application;
> Driver and housing separated by spacers;
> Adjustable ripple-lens optic with 60°/90°/120° beam angle;
> D-Mark tested for the use in paper production, wood processing etc;
> No UV or IR and completely mercury free;
> L80/B10 @ 50.000h;
> 5 years warranty;

Options:
> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen
> Controls and Dimming
·Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.
> Reflector : PC reflector with / without cover.pipe mounting.
> Installation: loop hanging, ceiling mounting, wall mounting,
> Customized supported for special projects.


Why choosing DUALRAYS:

* Professional team: >10 years experience, own factory, >10 engineers team, powerful production capacity and QC management system, provide both good quality product and service;

* Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;

* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;

* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.

UFO LED High Bay Light 150W 140LPW WF2 Corrotion Prevent Factory Shipyard Mines 2
* Shipyards
* Mines
* Workshops
* Warehouse
* Highway toll stations
* Gas stations
* Supermarkets
* Exhibition center
UFO High Bay Lights 100Watt 140LPW factory/warehouse/indoor sports ground
Character/Power
100W
150W
200W
240W
UFO High Bay Lights 100Watt 140LPW factory/warehouse/indoor sports ground
A
Ø350mm
Ø350mm
Ø420mm
Ø420mm
B
210mm
210mm
220mm
220mm

UFO High Bay Lights 100Watt 140LPW factory/warehouse/indoor sports ground

UFO High Bay Lights 100Watt 140LPW factory/warehouse/indoor sports ground

UFO High Bay Lights 100Watt 140LPW factory/warehouse/indoor sports ground
UFO High Bay Lights 100Watt 140LPW factory/warehouse/indoor sports ground
UFO High Bay Lights 100Watt 140LPW factory/warehouse/indoor sports ground
UFO High Bay Lights 100Watt 140LPW factory/warehouse/indoor sports ground
UFO High Bay Lights 100Watt 140LPW factory/warehouse/indoor sports ground
UFO High Bay Lights 100Watt 140LPW factory/warehouse/indoor sports ground

DALI Device
UFO High Bay Lights 100Watt 140LPW factory/warehouse/indoor sports ground

DALI Intelligent Control Diagram
UFO High Bay Lights 100Watt 140LPW factory/warehouse/indoor sports ground  UFO High Bay Lights 100Watt 140LPW factory/warehouse/indoor sports ground


DALI Intelligent Control Operator Interface
UFO High Bay Lights 100Watt 140LPW factory/warehouse/indoor sports ground

UFO High Bay Lights 100Watt 140LPW factory/warehouse/indoor sports ground
UFO High Bay Lights 100Watt 140LPW factory/warehouse/indoor sports ground
UFO High Bay Lights 100Watt 140LPW factory/warehouse/indoor sports ground
UFO High Bay Lights 100Watt 140LPW factory/warehouse/indoor sports ground
UFO High Bay Lights 100Watt 140LPW factory/warehouse/indoor sports ground
UFO High Bay Lights 100Watt 140LPW factory/warehouse/indoor sports ground
UFO High Bay Lights 100Watt 140LPW factory/warehouse/indoor sports ground

UFO High Bay Lights 100Watt 140LPW factory/warehouse/indoor sports ground
Packaging Information
UFO High Bay Lights 100Watt 140LPW factory/warehouse/indoor sports ground

Shipment
UFO LED High Bay Light 150W 140LPW WF2 Corrotion Prevent Factory Shipyard Mines 26
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

UFO LED High Bay Light 150W 140LPW WF2 Corrotion Prevent Factory Shipyard Mines 27

Q1: What is the warranty? What service do you provide?
RE: 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: Is there a MOQ?
RE: No MOQ, Sample order for testing welcome.

Q3: What is the production time?
RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q4: Can you do DIAlux Simulation?
RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

Q5: Do you offer mounting accessories?
RE: Yes, please contact us for details.

Q6: Does the price include intelligent controller?
RE: The intelligent controller should be purchased separately.

Q7: Labeling ?
RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).

Q8: Finish color?
RE: Standard colors: Black / White,other colors can be customized, based on MOQ 50PCS.

Q9: Dimming functions?
RE: DALI,PIR,1-10V diming available,built-in daylight sensor available for intellgent control for option.

Welcome to contact us if any more you want to know.


UFO LED High Bay Light 150W 140LPW WF2 Corrotion Prevent Factory Shipyard Mines 28
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!



Tag words: Driverless LED flood light , UFO LED high bay , LED troffer , LED area light , LED street light, Dualrays Optoelectronics, Shenzhen Dualrays Optoelectronics Co.,LIMITED
