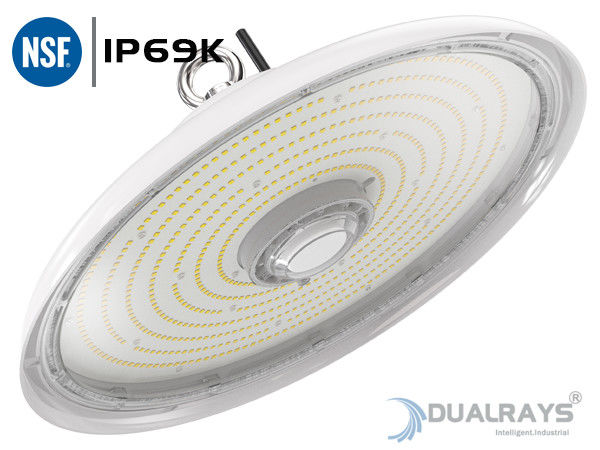

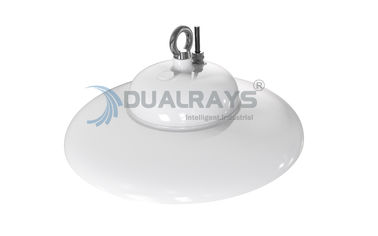

Strong White Housing 100W UFO LED High Bay Light IP69K IK10 140LPW Food Industry

Strong White Housing 100W UFO LED High Bay Light IP69K IK10 140LPW Food Industry

    • Strong White Housing 100W UFO LED High Bay Light IP69K IK10 140LPW Food Industry
    • Strong White Housing 100W UFO LED High Bay Light IP69K IK10 140LPW Food Industry
    • Strong White Housing 100W UFO LED High Bay Light IP69K IK10 140LPW Food Industry
  • Strong White Housing 100W UFO LED High Bay Light IP69K IK10 140LPW Food Industry

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: DUALRAYS(OEM available)
    Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
    Model Number: DR-HB100-GGXP

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Price: Please inquire for the latest price
    Packaging Details: Netural Package/OEM and ODM Package Available
    Delivery Time: 5-15 Bussiness Day
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 50000PCS/Month
    Contact Now
    Detailed Product Description
    Input Voltage: AC90V~305V UGR: <25
    PF: 0.95 Driver: Meanwell/SOSEN
    LED Source: SMD3030 CCT: WW:3000±200K NW:4000±200K DW:5000±200K CW:5700±200K
    Guarantee: 5 Years Protection: IP69K; IK10
    Color: Black RAL9017/White RAL9016 Installation Methods: Loop Hanging
    High Light:

    high bay led shop lights

    ,

    wireless led outdoor flood lights

    Strong Housing 100 Watt UFO LED High Bay Light IP69K IK10 140LPW Food Industry



    Dualrays NSF IP69K IK10 UFO High Bay Light For Food Industry
    Dualrays NSF IP69K IK10 UFO High Bay Light For Food Industry

    > High brightness LUXEON SMD3030 LEDs,energy efficient up to 140 lm/w;
    > Die-casting Al housing for excellent heat dissipation;
    > Superior PC reflector-optic for low glare applications,PMMA,glass cover available;
    > NSF standard,IP66/IP69K and IK10 especially designed for food industry;
    > Driver and housing separated by spacers;
    > Adjustable ripple-lens optic with 60°/90°/120° beam angle;
    > D-Mark tested for the use in paper production, wood processing etc;
    > Smooth surface easily to clean;
    > No UV or IR and completely mercury free;
    > L80/B10 @ 50.000h;
    > 5 years warranty;

    Options:
    > Driver: Meanwell ELG/HLG(Retangle),Sosen(Retangle)
    > Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.
    > Reflector : PC reflector with / without cover.pipe mounting.
    > Installation: loop hanging;
    > Customized supported for special projects.
    Dualrays NSF IP69K IK10 UFO High Bay Light For Food Industry
    > Food Processing Factory,Farm,Supermarket
    > Factories / Warehouses /Workshops
    > Exhibitions & showrooms
    > Barns and riding halls
    > High rooms and halls
    > Traditional lamp replacement
    Dualrays NSF IP69K IK10 UFO High Bay Light For Food Industry
    Character/Power
    100W
    150W
    200W

    Dualrays NSF IP69K IK10 UFO High Bay Light For Food Industry
    A
    Ø400mm
    Ø400mm
    Ø400mm

    B
    182mm
    182mm
    182mm


    Dualrays NSF IP69K IK10 UFO High Bay Light For Food Industry

    Dualrays NSF IP69K IK10 UFO High Bay Light For Food Industry

    Dualrays NSF IP69K IK10 UFO High Bay Light For Food Industry
    Dualrays NSF IP69K IK10 UFO High Bay Light For Food Industry
    Dualrays NSF IP69K IK10 UFO High Bay Light For Food Industry
    Dualrays NSF IP69K IK10 UFO High Bay Light For Food Industry
    Dualrays NSF IP69K IK10 UFO High Bay Light For Food Industry

    DALI Device
    Dualrays NSF IP69K IK10 UFO High Bay Light For Food Industry

    DALI Intelligent Control Diagram
    Dualrays NSF IP69K IK10 UFO High Bay Light For Food Industry Dualrays NSF IP69K IK10 UFO High Bay Light For Food Industry


    DALI Intelligent Control Operator Interface
    Dualrays NSF IP69K IK10 UFO High Bay Light For Food Industry

    Dualrays NSF IP69K IK10 UFO High Bay Light For Food Industry
    Dualrays NSF IP69K IK10 UFO High Bay Light For Food Industry
    Dualrays NSF IP69K IK10 UFO High Bay Light For Food Industry
    Dualrays NSF IP69K IK10 UFO High Bay Light For Food Industry
    Dualrays NSF IP69K IK10 UFO High Bay Light For Food Industry
    Dualrays NSF IP69K IK10 UFO High Bay Light For Food Industry

    Dualrays NSF IP69K IK10 UFO High Bay Light For Food Industry
    Packaging Information
    Dualrays NSF IP69K IK10 UFO High Bay Light For Food Industry



    Shipment

    100W HB3 Eco Built-in Driver Slim Version UFO LED High Bay 5 Year Warranty
    Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
    time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

    100W HB3 Eco Built-in Driver Slim Version UFO LED High Bay 5 Year Warranty

    Q1: What is the warranty for the NSF UFO high bay light?
    RE: 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

    Q2: What’s the payment methods you can accept ?
    RE: We can accept multi payment routes in order to be more flexible and convenient for our customers all over the world,Western Union,Paypal,T/T,L/C.But generally the standard payment method is T/T for bulk orders,30% T/T in advance,balance 70% before shipment The bank information is written in the PI.

    Q3: What’s your shipping method ?
    RE: UPS, DHL, Fedex, TNT or Shipping by Air,by train(for Europe) or by sea for option.

    Q4:  Can I only buy the housing separately?
    RE:Sorry. We only supply the whole luminaire fixture.

    Q5:Is there cheap shipping cost to import to our country?
    RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent orders,we suggest via air to airport plus
    our ship partner send to your door.

    Q6:Can we get support if we have our own market position?
    RE: Please inform us your detailed mind on your market, demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.

    Q7: Dimming functions?
    RE: DALI,PIR,1-10V diming available,built-in daylight sensor available for intellgent control for option.

    Q8:Does the price include intelligent device?
    RE: The intelligent device should be purchased separately.

    Q9: What's the application of your NSF UFO high bay light?
    RE: Our NSF UFO high bay light can be applied in
    >Food Processing Factory,Farm,Supermarket
    > Factories / Warehouses /Workshops
    > Exhibitions & showrooms
    > Barns and riding halls
    > High rooms and halls
    > Traditional lamp replacement, etc.

    Welcome to contact us for more information.

    Let's meet DUALRAYS from below pictures!


    100W HB3 Eco Built-in Driver Slim Version UFO LED High Bay 5 Year Warranty

    100W HB3 Eco Built-in Driver Slim Version UFO LED High Bay 5 Year Warranty

    100W HB3 Eco Built-in Driver Slim Version UFO LED High Bay 5 Year Warranty

    100W HB3 Eco Built-in Driver Slim Version UFO LED High Bay 5 Year Warranty

    100W HB3 Eco Built-in Driver Slim Version UFO LED High Bay 5 Year Warranty

    100W HB3 Eco Built-in Driver Slim Version UFO LED High Bay 5 Year Warranty

    100W HB3 Eco Built-in Driver Slim Version UFO LED High Bay 5 Year Warranty

    100W HB3 Eco Built-in Driver Slim Version UFO LED High Bay 5 Year Warranty

    Why DUALRAYS?

    Professional team: >10 years experience, own factory, >10 engineers team, powerful production capacity and QC management system, provide both good quality product and service;

    * Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;

    Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;

    All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.
