Name: Flicker Free UFO LED High Bay Light IK08 Meanwell LUXEON 100W 140LPW IP65
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-HB100-EGXP
Availability: InStock

Home Products HB2.5 UFO LED High Bay

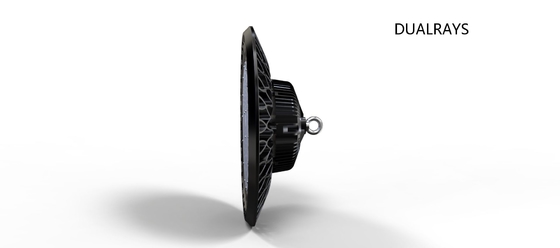

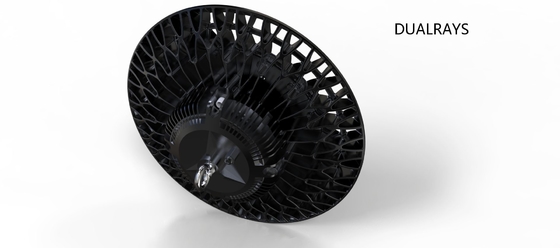

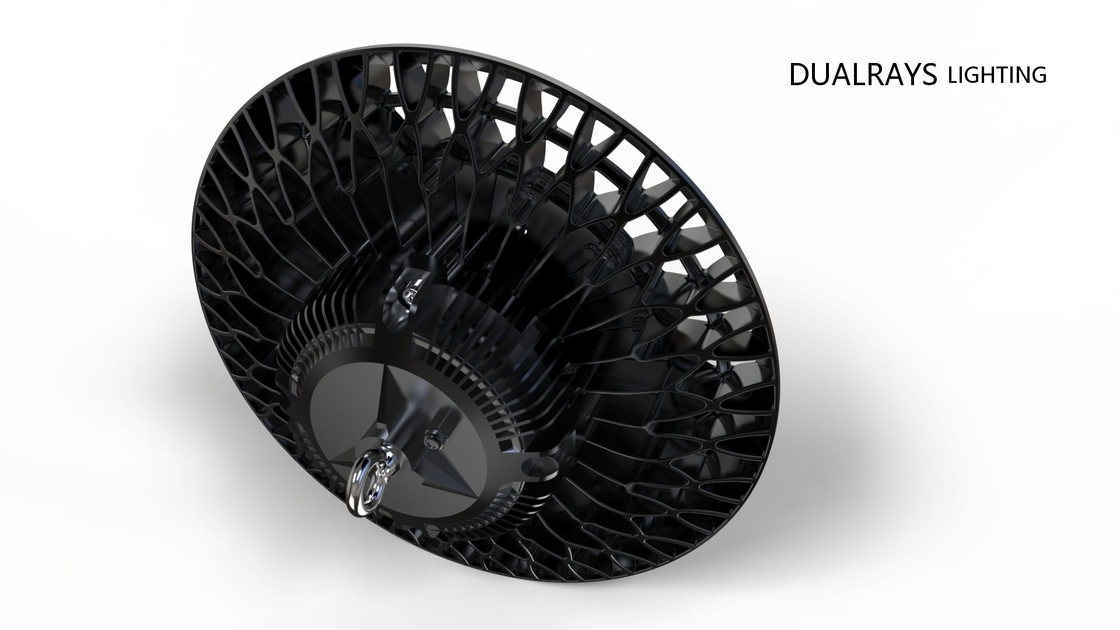

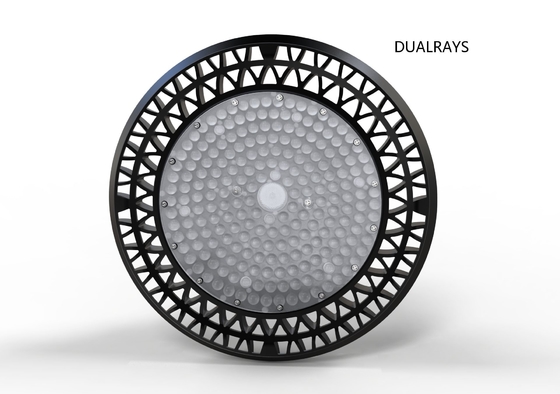

Flicker Free UFO LED High Bay Light IK08 Meanwell LUXEON 100W 140LPW IP65

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS(OEM available)
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB100-EGXP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Please inquiry for latest price
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Input Voltage:	AC100~277v 50/60Hz	Driver:	Meanwell/Sosen
LED Source:	SMD3030	CCT:	WW:3000±200K NW: 4000±200K DW:5700±200K CW: 6500±200K
Life Span:	50,000 Hours	Warranty:	5 Years
Material:	Aluminium Alloy 6063+PC	UGR:	<25
Installation Height:	6-20 Meters	Europe Warehouse:	Netherlands
Highlight:	high bay led shop lights , wireless led outdoor flood lights

Dualrays HB5 Series 100W UFO LED High Bay 140LPW Efficiency 5 Years Warranty
Flicker Free UFO LED High Bay Light IK08 Meanwell LUXEON 100W 140LPW IP65 0

> Highly brightness LUXEON SMD3030 LEDs,energy efficient - up to 160 lm/w;

> Die-casting Al for excellent heat dissipation;

> With high-strength tempered glass and die-casting Aluminum shell, high shock-proof level IK08;

> IP65 and IK10 for all industrial areas of application;

> Driver and housing separated by spacers;

> Optic lens with 60°/120° optional,with >90% efficiency reduces light significantly;

> D-Mark tested for the use in paper production, wood processing etc;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty;

Options:

> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen

> Controls and Dimming

> Rod mounting, hook with chain mounting and heavy duty steel yoke mounting are available;

·Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.

> Reflector : PC reflector with / without cover.pipe mounting.

> Installation: loop hanging, ceiling mounting, wall mounting,

> Customized supported for special projects.

Why choosing DUALRAYS:

* Professional team: >10 years experience, own factory, >10 engineers team, powerful production capacity and QC management system, provide both good quality product and service;

* Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;

* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;

* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.

> Factories / Warehouses /Workshops

> Exhibitions & showrooms

> Barns and riding halls

> High rooms and halls

> Traditional lamp replacement

Flicker Free UFO LED High Bay Light IK08 Meanwell LUXEON 100W 140LPW IP65 3

Character/Power	100W	150W	200W	240W
A	Ø350mm	Ø350mm	Ø420mm	Ø420mm
B	210mm	210mm	220mm	220mm

Flicker Free UFO LED High Bay Light IK08 Meanwell LUXEON 100W 140LPW IP65 5

Flicker Free UFO LED High Bay Light IK08 Meanwell LUXEON 100W 140LPW IP65 7

DALI Device
Flicker Free UFO LED High Bay Light IK08 Meanwell LUXEON 100W 140LPW IP65 13

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

Flicker Free UFO LED High Bay Light IK08 Meanwell LUXEON 100W 140LPW IP65 17

Flicker Free UFO LED High Bay Light IK08 Meanwell LUXEON 100W 140LPW IP65 24
Packaging Information

Shipment
Flicker Free UFO LED High Bay Light IK08 Meanwell LUXEON 100W 140LPW IP65 26
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Flicker Free UFO LED High Bay Light IK08 Meanwell LUXEON 100W 140LPW IP65 27

Q1: What is the warranty?

RE: For the HB5 Series LED high bay,Dualrays provide 5 years warranty.

Q2: Can I start with 1pcs?

RE: Yes. Sample order for testing welcome.

Q3: What is the Lead time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q4: Do you offer mounting accessories?

RE: Yes, please contact us for details.

Q5: Labeling ?

RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).

Q6: Finish color?

RE: Standard colors: Black / White,other colors can be customized, based on MOQ 50PCS.

Q7:Do you offer OEM or ODM?

RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:

1. We can provide you with our present products with your own label;

2. We can modify our products as your request;

3. We can even develop totally new products based on your design;

Q8: What’s your shipping method ?

RE: UPS, DHL, Fedex, TNT or Shipping by Air,by train(for Europe) or by sea for option.

Q9: What is CRI?

RE: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.For LED tubes,the CRI is mostly >80Ra,and 90Ra with higher cost.

Welcome to contact us freely to get more information.

Flicker Free UFO LED High Bay Light IK08 Meanwell LUXEON 100W 140LPW IP65 28

Flicker Free UFO LED High Bay Light IK08 Meanwell LUXEON 100W 140LPW IP65 29

Flicker Free UFO LED High Bay Light IK08 Meanwell LUXEON 100W 140LPW IP65 31

Flicker Free UFO LED High Bay Light IK08 Meanwell LUXEON 100W 140LPW IP65 32

Flicker Free UFO LED High Bay Light IK08 Meanwell LUXEON 100W 140LPW IP65 33

Flicker Free UFO LED High Bay Light IK08 Meanwell LUXEON 100W 140LPW IP65 34

Flicker Free UFO LED High Bay Light IK08 Meanwell LUXEON 100W 140LPW IP65 35
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
