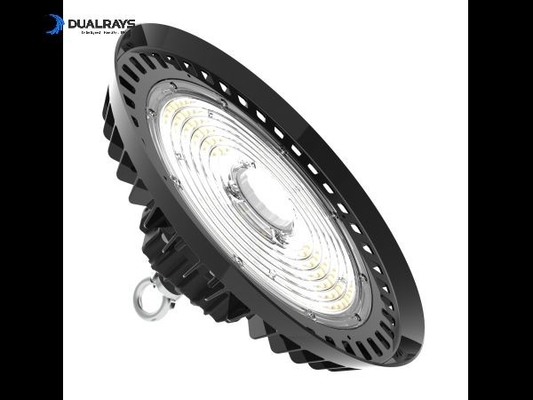

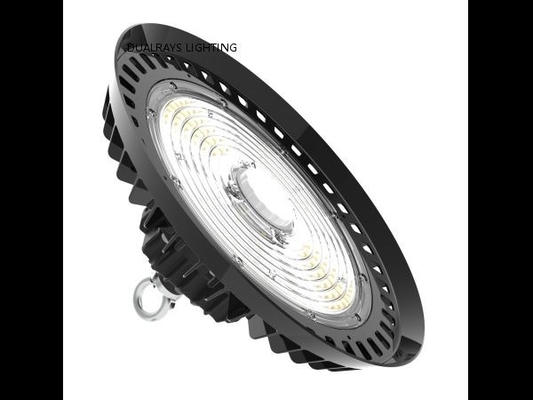

Emergency LED UFO High Bay Light Bell Light 140LPW 200W For Supermarkets Factory

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS(OEM available)
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB200-DGXP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Please inquiry for latest price
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Input Voltage:	AC100~277v 50/60Hz	Driver:	BOKE
CRI:	>70Ra/>80Ra	Power Factor:	0.95
CCT:	WW:3000±200K NW: 4000±200K DW:5700±200K CW: 6500±200K	Guarantee:	5 Years
Applications:	Factory/Warehouse/Workshop/Exhibition Center...	Installation Methods:	Loop Hanging, Ceiling Mounting, Wall Mounting,Pipe Mounting
Package:	Normal Export Carton Box	Optional Sensor:	Plugable Motion Sensor/Daylight Sensor
High Light:	high bay led shop lights , wireless led outdoor flood lights

Emergency LED UFO High Bay Light Bell Light 140LPW 200W For Supermarkets Factory

> Highly brightness LUXEON SMD3030 LEDs,energy efficient - up to 160 lm/w;

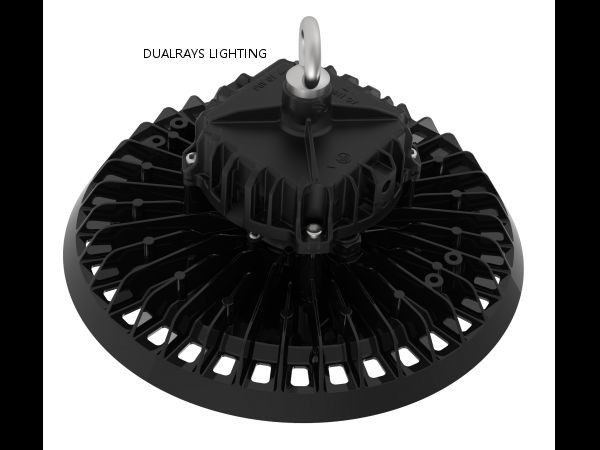

> Die-casting Al for excellent heat dissipation;

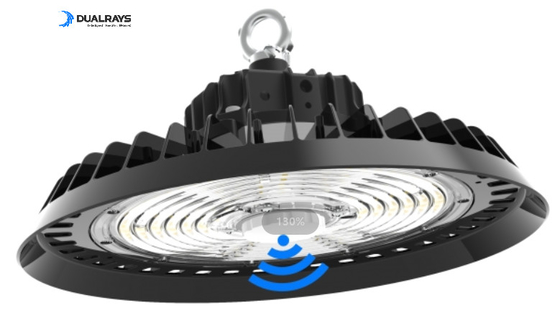

> Pluggable built-in radar motion sensor,plug and play;

> Superior PC reflector-optic for low glare applications,PMMA,glass cover available;

> IP65 and IK10 for all industrial areas of application;

> Driver and housing separated by spacers;

> Adjustable ripple-lens optic with 60°/90°/120° beam angle;

> D-Mark tested for the use in paper production, wood processing etc;

Options:

> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen

> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.

> Reflector : PC reflector with / without cover.pipe mounting.

> Installation: loop hanging, ceiling mounting, wall mounting,

> Customized supported for special projects.

> Factories / Warehouses /Workshops

> Exhibitions & showrooms

> Barns and riding halls

> High rooms and halls

> Traditional lamp replacement
AC90V~305V 200 Watt Led High Bay Light 140LPW Meanwell Optic Lens 60Ã‚Â°/90Ã‚Â°/120Ã‚Â° Optional

Character/Power	100W	150W	200W	240W
A	Ø320mm	Ø320mm	Ø390mm	Ø390mm
B	200mm	200mm	205mm	205mm

AC90V~305V 200 Watt Led High Bay Light 140LPW Meanwell Optic Lens 60Ã‚Â°/90Ã‚Â°/120Ã‚Â° Optional

DALI Device
AC90V~305V 200 Watt Led High Bay Light 140LPW Meanwell Optic Lens 60Ã‚Â°/90Ã‚Â°/120Ã‚Â° Optional

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

AC90V~305V 200 Watt Led High Bay Light 140LPW Meanwell Optic Lens 60Ã‚Â°/90Ã‚Â°/120Ã‚Â° Optional

Emergency LED UFO High Bay Light Bell Light 140LPW 200W For Supermarkets Factory 17

Character/Power	100W	150W	200W	240W
A / mm	Φ253	Φ308	Φ354	Φ405
B / mm	149	155	160	168

Emergency LED UFO High Bay Light Bell Light 140LPW 200W For Supermarkets Factory 19

Emergency LED UFO High Bay Light Bell Light 140LPW 200W For Supermarkets Factory 20

Emergency LED UFO High Bay Light Bell Light 140LPW 200W For Supermarkets Factory 21

Emergency LED UFO High Bay Light Bell Light 140LPW 200W For Supermarkets Factory 22

Emergency LED UFO High Bay Light Bell Light 140LPW 200W For Supermarkets Factory 23

AC90V~305V 200 Watt Led High Bay Light 140LPW Meanwell Optic Lens 60Ã‚Â°/90Ã‚Â°/120Ã‚Â° Optional

Packaging Information

Shipment

100W HB3 Eco Built-in Driver Slim Version UFO LED High Bay 5 Year Warranty
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

100W HB3 Eco Built-in Driver Slim Version UFO LED High Bay 5 Year Warranty

Q1: Finishing color?

RE: Black RAL9017 / White RAL9016, Other color can be customized, please contact for details.

Q2: What’s your shipping method ?
RE: UPS, DHL, Fedex, TNT or Shipping by Air,by train(for Europe) or by sea for option.

Q3: Can I only buy the housing separately?
RE:Sorry. We only supply the whole luminaire fixture..

Q4: How many days are the production if I order now?

RE: 3-5 days for small samples, 10-15 days for bulk orders.

Q5:How long for the delivery time?

RE: 3 to 5 working days for samples, massive orders is within 10-15 working days according to the quantity.30 days for customized products with opening new mold.Urgent delivery time requirement is available,we will try our best to help you.

Q6:Can we get support if we have our own market position?

RE: Please inform us your detailed mind on your market, demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.

Q7: Dimming functions?

RE: DALI,PIR,1-10V diming available,built-in daylight sensor available for intellgent control for option.

Q8: What’s the payment methods you can accept ?
RE: We can accept multi payment routes in order to be more flexible and convenient for our customers all over the world,Western Union,Paypal,T/T,L/C.But generally the standard payment method is T/T for bulk orders,30% T/T in advance,balance 70% before shipment The bank information is written in the PI.

Q9: How long is your warranty? What service can I get?

RE: 5 years. We take on the delivery cost and replacement if any quality problem occurred.

Welcome to contact us for more information.

Let's meet DUALRAYS from below pictures!

100W HB3 Eco Built-in Driver Slim Version UFO LED High Bay 5 Year Warranty

Why DUALRAYS?

* Professional team: Over 10 years experience, own factory, more than 10 engineers team, powerful production capacity and QC management system, provide both good quality product and service;

* Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;

* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;

* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.

* We always take customers benifit and product quality on our most important possition

Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
