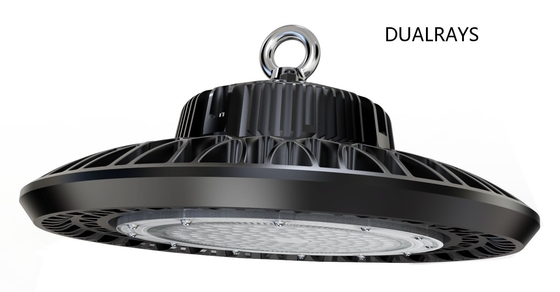

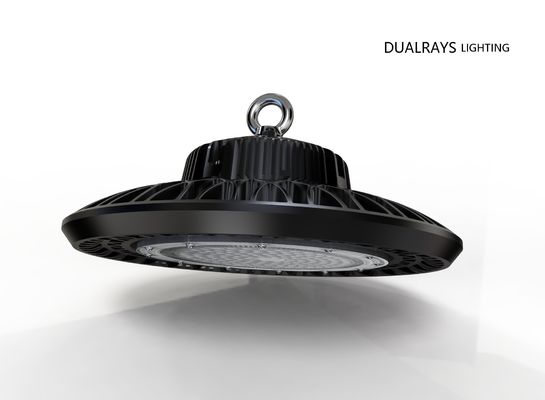

33600lm Flux UFO LED High Bay Light Bell 240W 140LPW IP65 Strong Housing

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS(OEM available)
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB240-EGXP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Please inquiry for latest price
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Input Voltage:	AC100~277v 50/60Hz	Driver:	Meanwell/Sosen
LED Source:	SMD3030	Power Efficiency:	95%
Power Factor:	0.95	CCT:	WW:3000±200K NW: 4000±200K DW:5700±200K CW: 6500±200K
Life Span:	50,000 Hours	Warranty:	5 Years
Power:	100W/150W/200W/240W/300W	Efficiency:	140LPW
High Light:	high bay led shop lights , wireless led outdoor flood lights

100 Watts UFO LED High Bay Light With Meanwell/SOSEN Power Supply in Holland Warehouse

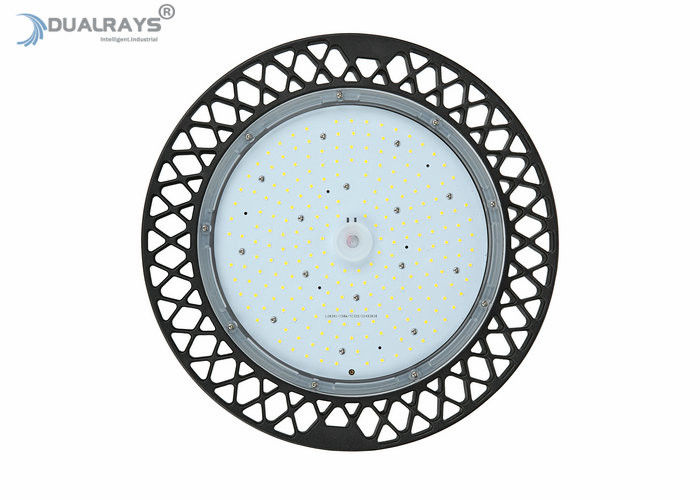

> Highly brightness LUXEON SMD3030 LEDs,energy efficient - up to 160 lm/w;

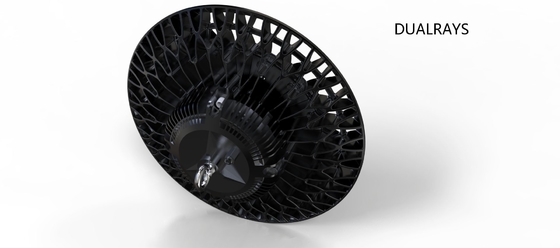

> Die-casting Al for excellent heat dissipation;

> Superior PC reflector-optic for low glare applications,PMMA,glass cover available;

> IP65 and IK10 for all industrial areas of application;

> Driver and housing separated by spacers;

> Adjustable ripple-lens optic with 60°/90°/120° beam angle;

> D-Mark tested for the use in paper production, wood processing etc;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty;

Options:

> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen

> Controls and Dimming

·Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.

> Reflector : PC reflector with / without cover.pipe mounting.

> Installation: loop hanging, ceiling mounting, wall mounting,

> Customized supported for special projects.

Why DUALRAYS:

* Professional team: >10 years experience, own factory, >10 engineers team, powerful production capacity and QC management system, provide both good quality product and service;

* Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;

* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;

* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.

* Warehouse

* Highway toll stations

* Gas stations

* Supermarkets

* Exhibition center

33600lm Flux UFO LED High Bay Light Bell 240W 140LPW IP65 Strong Housing 3

Character/Power	100W	150W	200W	240W
A	Ø350mm	Ø350mm	Ø420mm	Ø420mm
B	210mm	210mm	220mm	220mm

33600lm Flux UFO LED High Bay Light Bell 240W 140LPW IP65 Strong Housing 5

33600lm Flux UFO LED High Bay Light Bell 240W 140LPW IP65 Strong Housing 7

DALI Device
33600lm Flux UFO LED High Bay Light Bell 240W 140LPW IP65 Strong Housing 13

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

33600lm Flux UFO LED High Bay Light Bell 240W 140LPW IP65 Strong Housing 18

Packaging Information

Shipment
100 Watts UFO LED High Bay Light With Meanwell / MOSO Power Supply in Holland Warehouse
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

100 Watts UFO LED High Bay Light With Meanwell / MOSO Power Supply in Holland Warehouse

Q1: What is the warranty for the HB5 UFO high bay?

RE: For the HB5 Series LED high bay,Dualrays provide 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: Is there a MOQ?

RE: No MOQ, Sample order for testing welcome.

Q3: What is the Lead time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q4: Can you do DIAlux Simulation?

RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

Q5: Do you offer mounting accessories?

RE: Yes, please contact us for details.

More you want to know, welcome to contact us freely.

100W HB3 Eco Built-in Driver Slim Version UFO LED High Bay 5 Year Warranty

100 Watts UFO LED High Bay Light With Meanwell / MOSO Power Supply in Holland Warehouse
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!

Tag words: Driverless LED flood light , UFO LED high bay , LED troffer , LED area light , LED street light, Dualrays,Dualrays Optoelectronics, Shenzhen Dualrays Optoelectronics Co.,LIMITED
