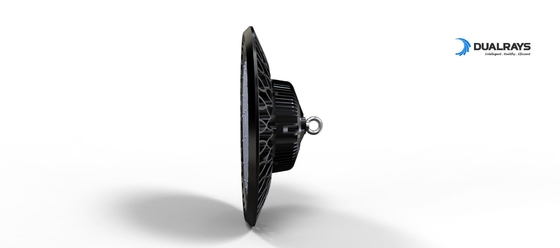

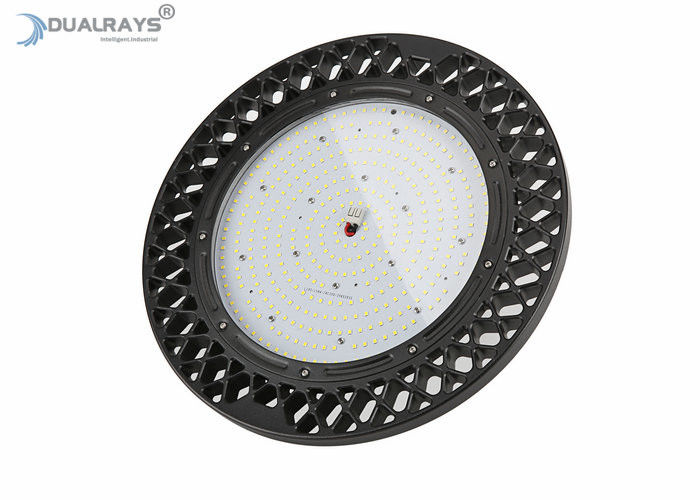

Name: 100W 140LPW UFO High Bay Light Bell IP65 IK08 Die Cast AL Great Dissipation
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-HB100-EGXP
Availability: InStock

Home Products HB2.5 UFO LED High Bay

100W 140LPW UFO High Bay Light Bell IP65 IK08 Die Cast AL Great Dissipation

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS(OEM available)
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB100-EGXP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Please inquiry for latest price
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Input Voltage:	AC100~277v 50/60Hz	Driver:	Meanwell/Sosen
LED Source:	SMD3030	Efficiency:	140LPW
Power Factor:	0.95	CCT:	WW:3000±200K NW: 4000±200K DW:5700±200K CW: 6500±200K
Warranty:	5 Years	Package:	Normal Export Carton Box
Applications:	Factory/Warehouse/Workshop/Exhibition Center...	Installation Methods:	Loop Hanging, Ceiling Mounting, Wall Mounting,
Highlight:	led flat panel light fixture , wireless led outdoor flood lights

Dualrays HB5 Series 100W UFO LED High Bay 140LPW Efficiency 5 Years Warranty

> Highly brightness LUXEON SMD3030 LEDs,energy efficient - up to 160 lm/w;

> Die-casting Al for excellent heat dissipation;

> Superior PC reflector-optic for low glare applications,PMMA,glass cover available;

> IP65 and IK10 for all industrial areas of application;

> Driver and housing separated by spacers;

> Adjustable ripple-lens optic with 60°/90°/120° beam angle;

> D-Mark tested for the use in paper production, wood processing etc;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty;

Options:

> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen

> Controls and Dimming

·Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.

> Reflector : PC reflector with / without cover.pipe mounting.

> Installation: loop hanging, ceiling mounting, wall mounting,

> Customized supported for special projects.

Why choosing DUALRAYS:

* Professional team: >10 years experience, own factory, >10 engineers team, powerful production capacity and QC management system, provide both good quality product and service;

* Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;

* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;

* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.

> Factories / Warehouses /Workshops

> Exhibitions & showrooms

> Barns and riding halls

> High rooms and halls

> Traditional lamp replacement

100W 140LPW UFO High Bay Light Bell IP65 IK08 Die Cast AL Great Dissipation 3

Character/Power	100W	150W	200W	240W
A	Ø350mm	Ø350mm	Ø420mm	Ø420mm
B	210mm	210mm	220mm	220mm

100W 140LPW UFO High Bay Light Bell IP65 IK08 Die Cast AL Great Dissipation 5

100W 140LPW UFO High Bay Light Bell IP65 IK08 Die Cast AL Great Dissipation 7

DALI Device
100W 140LPW UFO High Bay Light Bell IP65 IK08 Die Cast AL Great Dissipation 13

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

100W 140LPW UFO High Bay Light Bell IP65 IK08 Die Cast AL Great Dissipation 17

Packaging Information

Shipment
100W 140LPW UFO High Bay Light Bell IP65 IK08 Die Cast AL Great Dissipation 26
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

100W 140LPW UFO High Bay Light Bell IP65 IK08 Die Cast AL Great Dissipation 27

Q1: What is the warranty?

RE: 5 years warranty.

Q2: Is there a MOQ?

RE: No MOQ, Sample order for testing welcome.

Q3: What is the production time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q4: Do you offer mounting accessories?

RE: Yes, please contact us for details.

Q5: Labeling ?

RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).

Q6: Finish color?

RE: Standard colors: Black / White,other colors can be customized, based on MOQ 50PCS.

Q7:Can we get support if we have our own market position?

RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.

Q8: What’s the payment methods you can accept ?

RE: We can accept multi payment routes in order to be more flexible and convenient for our customers all over the world,Western Union,Paypal,T/T,L/C.But generally the standard payment method is T/T for bulk orders,30% T/T in advance,balance 70% before shipment The bank information is written in the PI.

Welcome to contact us freely to get more information.

100W 140LPW UFO High Bay Light Bell IP65 IK08 Die Cast AL Great Dissipation 28

100W 140LPW UFO High Bay Light Bell IP65 IK08 Die Cast AL Great Dissipation 29

100W 140LPW UFO High Bay Light Bell IP65 IK08 Die Cast AL Great Dissipation 30
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
