| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-HB200-DGXP |
| Minimum Order Quantity: | 2PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 Bussiness Day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000PCS/Month |
| Input Voltage: | AC100~277V 50/60Hz | Finishing Color(Optional): | Black RAL9017; White RAL9016 |
|---|---|---|---|
| Material: | Aluminum + PC | Temp℃: | -40℃~+50℃ |
| Life Span: | >50,000 Hrs | Guarantee: | 5 Years |
| High Light: | high bay led shop lights,wireless led outdoor flood lights |
||

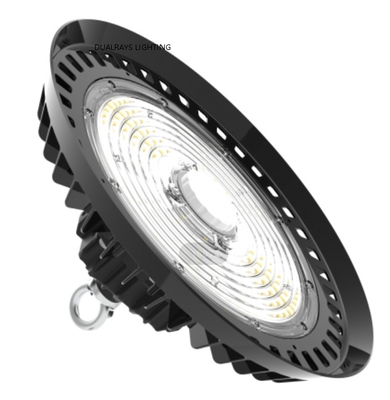

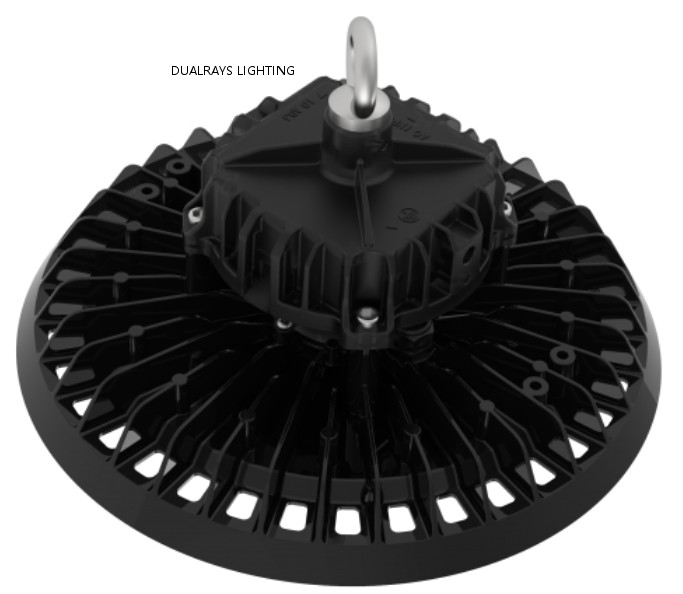

5 Years Warranty UFO LED Bay Light Pluggable Built-In Radar Motion Sensor With 200W
UFO LED High Bay Light Production Adantage:

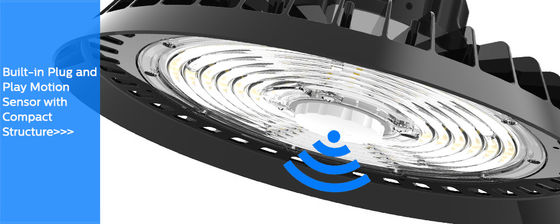

> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.
> D-Mark tested for the use in paper production, wood processing etc;
4. Why choosing DUALRAYS?
* Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;
* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;
* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.
| Model No. | DR-HB100-DGXP | DR-HB150-DGXP | DR-HB200-DGXP | DR-HB240-DGXP |
| System Watts/W | 100W | 150W | 200W | 240W |
| System Efficiency/LPW | 140LPW | |||
| Lumen Output/lm | 14.000±5% | 21.000±5% | 28.000±5% | 33.600±5% |
| IK Rating | IK10 | |||
| IP Rating | IP65 | |||
| CCT/K | 3000~6500K | |||
| CRI(Ra) | >80Ra(>70Ra For Option) | |||
| Factory Power | >0.95 | |||
| UGR | <25 | |||
| Beam Angle | 60/90/110 Degree | |||
| Material | Aluminum + PC | |||
|
Character/Power
|
100W
|
150W
|
200W
|
240W
|
|
|
A / mm
|
Φ253
|
Φ308
|
Φ354
|
Φ405
|
|
|
B / mm
|
149
|
155
|
160
|
168
|
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
