| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-FL100-CG1 |
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | Please inquiry for laterst price |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 Bussiness Day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000PCS/Month |
| CRI: | >80 | CCT: | 3000K~6500K |
|---|---|---|---|
| Life Span: | >50000h | Warranty: | 5 Years |
| Installation Height: | 12 Meters | Driver: | DUALRAYS |
| High Light: | high bay led shop lights,wireless led outdoor flood lights |
||

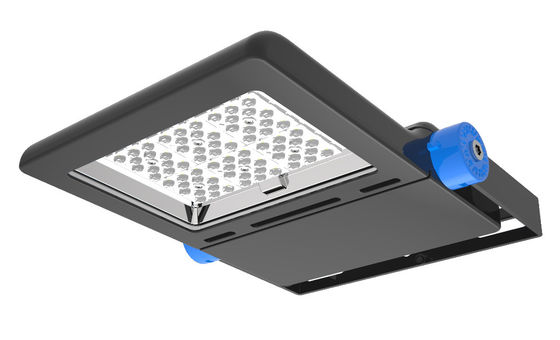

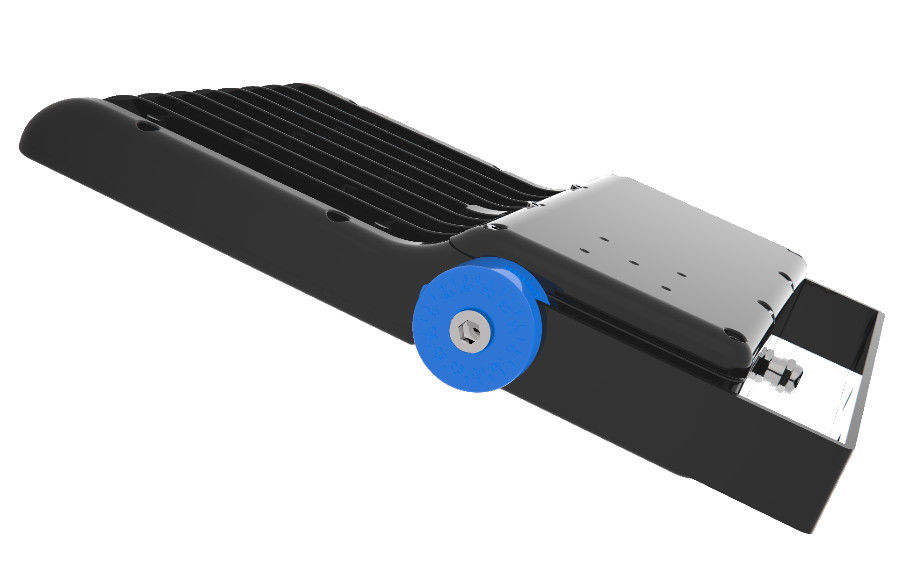

Economic Solution LED Flood Light Budget Saving Floodlight
> 100W LED Flood Light Flat 13500LM for Outdoor Security and Decoration

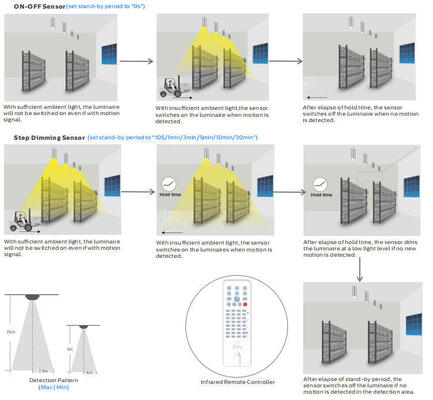

> Built-in Plug and Play Motion Sensor with Compact Structure;
> L70/B20(25℃)65.000h;
| Model No. | DR-FL050-CGX | DR-FL100-CGX | DR-FL150-CGX | DR-FL200-CGX | DR-FL300-CGX |
| System Watts/W | 50W | 100W | 150W | 200W | 300W |
| System Efficiency/LPW | 6.800±5% | 13.500±5% | 20.000±5% | 27.000±5% | 33.200±5% |
| Efficiency/ lm/w | 135LM/W | ||||
| Rated Input Voltage/V | AC100~277V 50/60Hz | ||||
| LEDs Light Source | SMD3030 | ||||
| SDCM | <5 | ||||
| CCT/K | 3000K/4000K/5000K/5700K/6500K | ||||
| CRI/Ra | >80Ra (>70Ra for Option) | ||||
| Power Factor | >0.95 | ||||
| THD | <10% | ||||

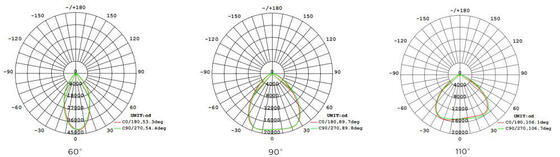

| Beam Angle(Optional) | 30° / 60° / 90° / 120° | ||||
| UGR | <25 | ||||
| Surge Protection | 6~10KV SPD built in Driver,Exterior SPD 10KV() or 20KV Meanwell Optional | ||||
| LED Driver | Sosen, Meanwell ELG/ HLG | ||||
| IP Rating | IP65 | ||||
| Dimming(Optional) | 0/1-10V/DALI/Zigbee | ||||
| Emergency(Optional) | Available | ||||
| Protection Class | ClassⅠ | ||||
| Material | Aluminum+PC | ||||
| Lifespan/hrs | >62.000 Hrs (Ta=30℃@L70) | ||||
| Operation Temp/℃ | -40°C to + 50°C(-40°F to 122°F) | ||||
| Storage Temp/℃ | -40°C to + 65°C(-40°F to 149°F) | ||||
| Installation(Optional) | Ceiling Mounting, Wall Mounting, Ground Mounting | ||||
| Certificate | CE(EMC+LVD), RoHS, TUV/GS, D-Mark, SAA, RCM Available; | ||||
|
Character/Power
|
100W
|
150W
|
200W
|
240W
|
300W
|
|
|
A / mm
|
389
|
389
|
437
|
493
|
582
|
|
|
B / mm
|
297
|
297
|
346
|
379
|
444
|
|
|
C / mm
|
57
|
57
|
57
|
57
|
60
|
|
Model No.
|
Net Weight/Kg
|
Outer Carton Size/mm
|
Gross Weight/Kg
|
QTY”/CTN
|
|
DR-FL050-CGXX
|
3.6
|
355*350*165
|
4.5
|
1PCS/CTN
|
|
DR-FL100-CGXX
|
3.8
|
355*350*165
|
4.7
|
1PCS/CTN
|
|
DR-FL150-CGXX
|
4.5
|
415*410*175
|
5.8
|
1PCS/CTN
|
|
DR-FL200-CGXX
|
5.7
|
475*470*195
|
7.3
|
1PCS/CTN
|
|
DR-FL300-CGXX
|
9.3
|
475*470*195
|
11.5
|
1PCS/CTN
|
In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
