| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-HB100-EGXP |
| Minimum Order Quantity: | 2PCS |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 Bussiness Day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000PCS/Month |
| Warranty: | 5 Years | Efficiency: | 140LPW |
|---|---|---|---|
| Power Factor: | >0.95 | Power: | 100W/150W/200W/240W/300W |
| CCT/K: | 3000K,4000K,5000K,5700K | Dimension/mm: | Φ350*210mm |
| High Light: | led flat panel light fixture,wireless led outdoor flood lights |
||

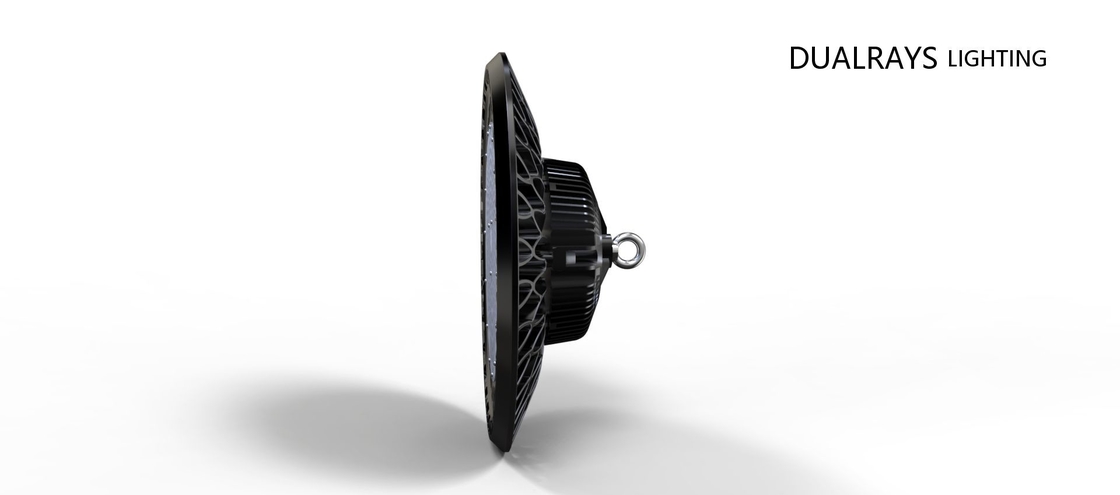

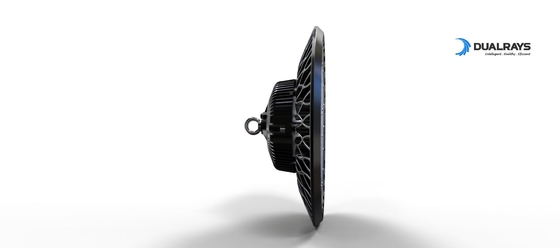

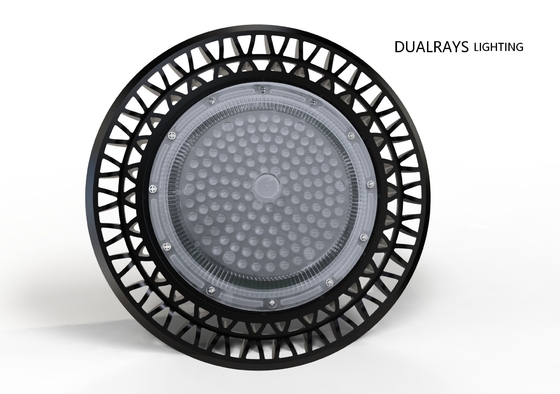

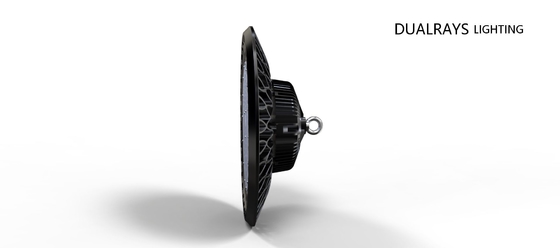

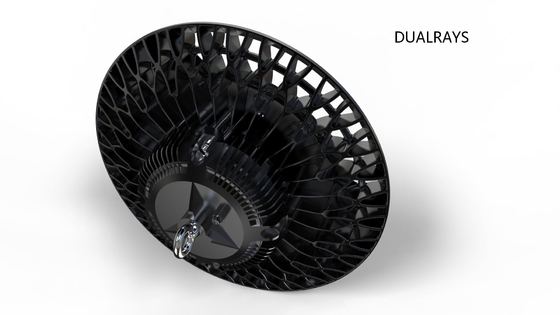

100W/IP65 Warehouse UFO LED High Bay Light,140LPW high efficiency, DALI,PIR
UFO LED High Bay Features:
* High anti-corrosion grade WF2, can be used indoor and outdoor prevent corrosion environment;
* CE,RoHS listed,5 years warranty;
* Superior PC reflector-optic for low glare applications,PMMA,glass cover available;
* Adjustable ripple-lens optic with 60°/90°/120° beam angle;
* Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Motion sensor/ Emergency / DALI control / Daylight sensor;
* Customized supported for special projects;
Advantages:
* Build strategic partnership with international top brands such as CREE, LUMILEDS, NICHIA, MEANWELL,etc.
* Excellent experience for distributors, wholesales and contractor from Western Europe and Oceania;
* OEM/ODM is available. We supply customized service for our customers to meet their marketing;
* HB3 series UFO high bay is our private module, more competitive and higher quality;
| Item | Description |
| THD | <10% |
| System Efficiency/LPW | 140 |
| CRI/Ra | >80Ra (>70Ra for Option) |
| LED Driver | Meanwell HBG/ELG/HLG,Sosen |
| Protection Class | ClassⅠ |
| Optic Lens | 60°/90°/110° |
| Rated Input Voltage/V | AC100~277V 50/60Hz |
| CCT/K |
3000K/4000K/5000K/5700K/6500K |
> Shipyards;
> Mines;
> Workshops;
> Warehouse;
> Highway toll stations;
> Gas stations;
> Supermarkets;
> Exhibition center;
|
Character/Power
|
100W
|
150W
|
200W
|
240W
|
|
|
A
|
Ø350mm
|
Ø350mm
|
Ø420mm
|
Ø420mm
|
|
|
B
|
210mm
|
210mm
|
220mm
|
220mm
|
Q1: Can we get support if we have our own market position?
RE: Please inform us your detailed mind on your market demand. We will discuss and propose helpful suggestion for you to find the best solution for you.
Q2: What’s your shipping method ?
RE: UPS, DHL, Fedex, TNT or Shipping by Air,by train(for Europe) or by sea for option.
Q3.What’s the meaning of “Beam Angle “?
RE: The spread of light from a luminaire. For example: a fitting such as a low bay ,which is closer to the floor,will have a wider beam angle to illuminate a given floor area while a high bay fitting will have a narrower beam.
Q4.What’s the fire rating categories ?
RE: VO-Burning stops within 10 seconds on vertical specimen; drips of particles allowed as long as they are not inflamed.
HB-Slow burning on a horizonal specimen’s burning rate <76mm /min thickness <3mm or burning stops before 100mm.
TP(b)-Slow burning rate <50mm / min for thickness <3mm.
TP(a)-Self extinguishes and flaming and afterglow should not exceed 5 seconds once source the source of flame is removed.
Q5.What’s efficacy about the light ?
RE: The light output of a light source divided by the total electrical power input to that source, expressed in lumens per watt(lm/w).
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
