| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-HB100-EG1 |
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 Bussiness Day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000PCS/Month |
| Life Span: | >50000h | CCT: | 3000k~5700k |
|---|---|---|---|
| Power Factor: | >0.95 | Beam Angle: | 60°/120, For Option |
| High Light: | high bay led shop lights,wireless led outdoor flood lights |
||

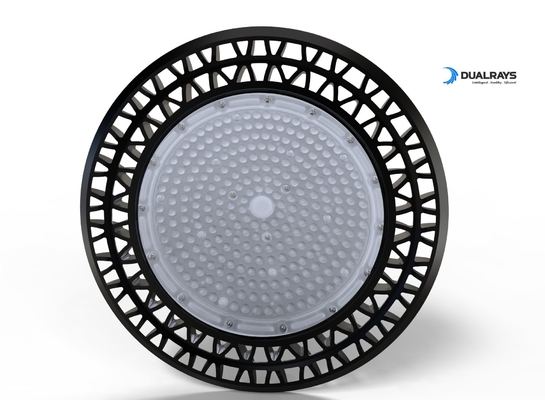

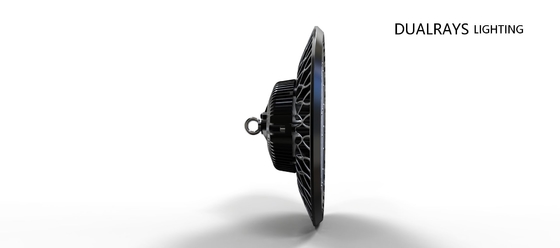

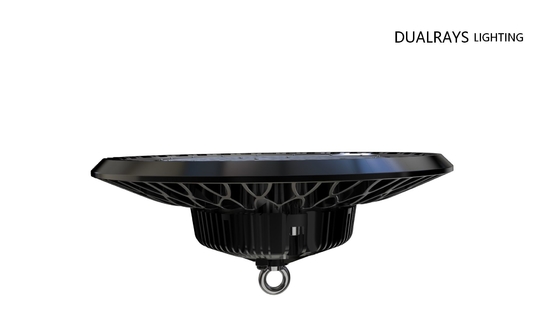

UFO LED High Bay Features:
* The luminaire assembly meets dust and moisture rating of IP65 per IEC60529 and impact protection of IK08 per EN62262, ensure long life and protection from the environment;
* Optic lens with 60°/90°/120° optional;
* High quality Meanwell/Sosen power supply;
* IP65 and IK10 for all industrial areas of application;
* D-Mark tested for the use in paper production, wood processing etc;
* No UV or IR and completely mercury free.
Advantages:
* Build strategic partnership with international top brands such as CREE, LUMILEDS, NICHIA, MEANWELL,etc.
* Our service and products are recognized from famous enterprises such as Jalasoft, Mercedes-Benz, Rewe, Nahkauf, Hagebau,etc.
* OEM/ODM is available. We supply customized service for our customers to meet their marketing;
* HB3 series UFO high bay is our private module, more competitive and higher quality;
|
Item No.
|
DR-HB100-EG2
|
Housing color
|
Black
|
|
Input Voltage
|
AC90-305V 50/60HZ
|
CRI
|
>80
|
|
Power
|
100W
|
IP Ranking
|
IP65
|
|
Working Temp
|
-40 to +50℃
|
Power Factor (PF)
|
＞0.9
|
|
Luminous Flux
|
14,000lm
|
Material
|
Die-Casting Aluminum
|
|
LED QTY
|
161PCS
|
Light Source
|
SMD3030
|
|
Beam Angle
|
120º
|
LED Efficiency
|
140lm/W
|
|
CCT
|
2700-6500K
|
Certificate
|
CE, RoHS,
|
|
Dimension
|
ø260*190mm
|
Warranty
|
5 years
|
|
Chip Brand
|
Osram
|
Driving Brand
|
Meanwell/MOSO
|
> Shipyards;
> Mines;
> Workshops;
> Warehouse;
> Highway toll stations;
> Gas stations;
> Supermarkets;
> Exhibition center;
|
Character/Power
|
100W
|
150W
|
200W
|
240W
|
|
|
A
|
Ø350mm
|
Ø350mm
|
Ø420mm
|
Ø420mm
|
|
|
B
|
210mm
|
210mm
|
220mm
|
220mm
|
Q1: Can you do DIAlux Simulation?
RE: We have professional DIAlux team to support you, IES files also can be downloaded from our Website(www.dualrays.com).
Q2: What’s your main product line is made ?
RE: 5 product lines.We focus on intelligent industrial LED luminaires,so our main products includes LED flood light,LED high bay,LED tri-proof light,LED street light,LED Linear trunking rail system.
Q3.What’s the fire rating categories ?
RE: VO-Burning stops within 10 seconds on vertical specimen; drips of particles allowed as long as they are not inflamed.
HB-Slow burning on a horizonal specimen’s burning rate <76mm /min thickness <3mm or burning stops before 100mm.
TP(b)-Slow burning rate <50mm / min for thickness <3mm.
TP(a)-Self extinguishes and flaming and afterglow should not exceed 5 seconds once source the source of flame is removed.
Q4.What’s Watt ?
RE: The unit of electrical power as used by an electrical device during its operation. Many lamps come with rating in watts to indicate their power consumption.
Q5. How many engineers of your R&D team?
RE: 10-15 R&D staffs with more than 10 years experience in LED luminaires industry
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
