| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-HB100-EG2 |
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 Bussiness Day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000PCS/Month |
| Warranty: | 5 Years | Material: | Aluminium Alloy |
|---|---|---|---|
| CCT: | 3000/4000/5000/5700K±300K | Package: | Standard Neutral Export Carton Box,private Carton Box Is Avaiolable For Total Quantity Above 1.000PCS With Each Order |
| Shipment Term: | Ex-Works For Order Value＜ 50,000USD,FOB Shenzhen For Order Value ≥ 50,000 USD | OEM Service: | Private Label Free Of Charge For Quantity Above 100PCS Per Model |
| High Light: | high bay led shop lights,wireless led outdoor flood lights |
||

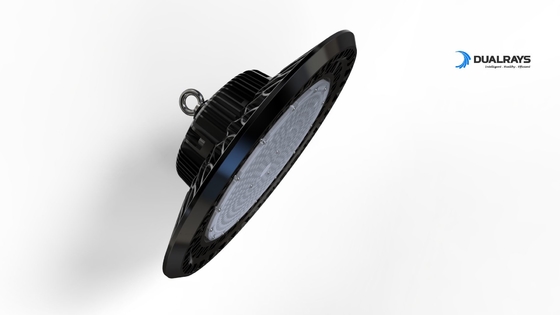

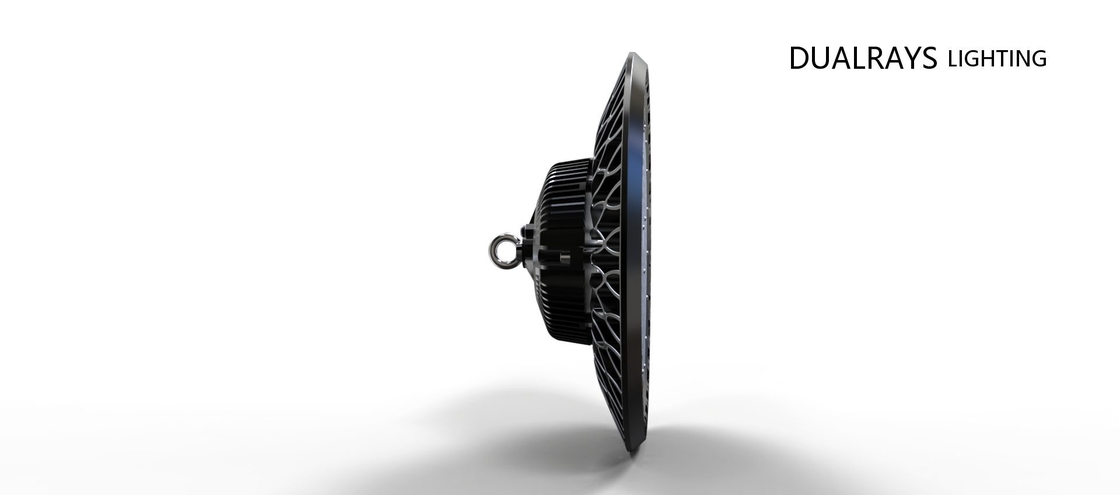

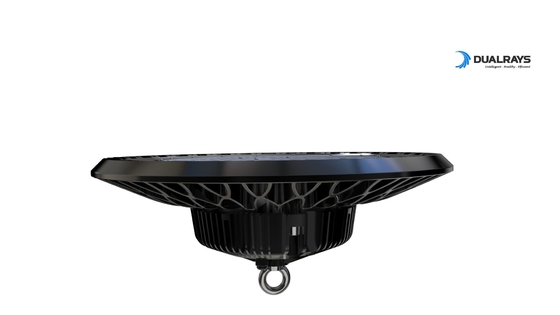

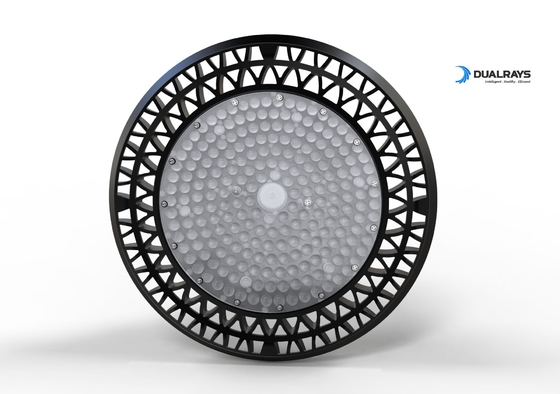

UFO LED High Bay Features:
* High output lighting efficiency 130-140LPW;
* Surface anti-corrosion coating processing;
* CE,RoHS listed,5 years warranty;
* Highly brightness LUXEON SMD3030 LEDs,energy efficient - up to 160LPW;
* Adjustable ripple-lens optic with 60°/90°/120° beam angle.
Advantages:
* Build strategic partnership with international top brands such as CREE, LUMILEDS, NICHIA, MEANWELL,etc.
* Provide Dialux software for lighting design project for our customers;
* Our service and products are recognized from famous enterprises such as Jalasoft, Mercedes-Benz, Rewe, Nahkauf, Hagebau,etc.
* HB3 series UFO high bay is our private module, more competitive and higher quality;
|
Item No.
|
DR-HB100-EG2
|
Housing color
|
Silver, Black, Grey etc
|
|
Input Voltage
|
AC100-277V 50/60HZ
|
CRI
|
>80
|
|
Power
|
100W
|
IP Ranking
|
IP65
|
|
Working Temp
|
-40 to +50℃
|
Power Factor (PF)
|
＞0.95
|
|
Luminous Flux
|
14000lm
|
Material
|
AL+PMMA
|
|
Driving Brand
|
Meanwell/Sosen
|
Light Source
|
SMD3030
|
> Shipyards;
> Mines;
> Workshops;
> Warehouse;
> Highway toll stations;
> Gas stations;
> Supermarkets;
> Exhibition center;
|
Character/Power
|
100W
|
150W
|
200W
|
240W
|
|
|
A
|
Ø350mm
|
Ø350mm
|
Ø420mm
|
Ø420mm
|
|
|
B
|
210mm
|
210mm
|
220mm
|
220mm
|
Q1.What’s Lumen?
RE: The international (SI) unit of luminous flux or quantity of light and equals the amount of light that is spread over a square foot of surface by one candle power when all parts of the surface are exactly one foot from the light source.
Q2.What’s Smart Lighting ?
RE: Automated lighting control using sensors and /or scheduling switches.
Q3.How to explain “ZigBee“ ?
RE: A low -power ,low date rate, local area wireless network; ideal for lighting control.
Q4.How to explain “luminous Efficacy“ ?
RE: A measure of how well a light source products visible light expressed as lumens /Watt.
Q5. What are your main markets?
RE: We focus on European market and Oceania market.
Q6. What are the certificates you have currently?
RE: All of our LED luminaires comply with CE,RoHS standards,and for the leading products,it is also TUV,ENEC,VDE,SAA,C-Tick,LM79,LM80,CB listed
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
