Place of Origin: | Shenzhen,China |
Brand Name: | DUALRAYS |
Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
Model Number: | DR-HB240-EGXP |
Minimum Order Quantity: | 2pcs |
---|---|
Price: | Negotiated |
Packaging Details: | Netural Package/OEM and ODM Package Available |
Delivery Time: | 5-15 Bussiness Day |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100,000PCS/Month |
CRI: | >80 | Life Span: | >50000h |
---|---|---|---|
Beam Angle: | 60°/120° For Option | ||
High Light: | led flat panel light fixture,wireless led outdoor flood lights |

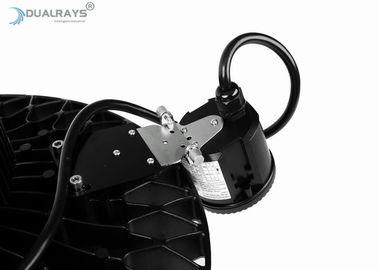

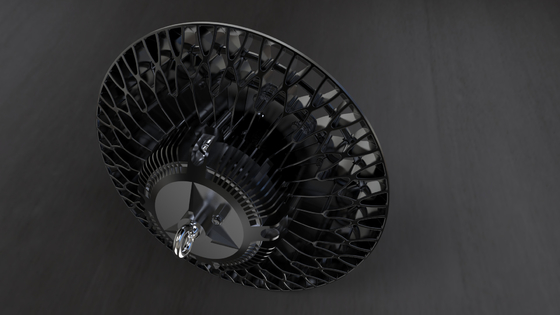

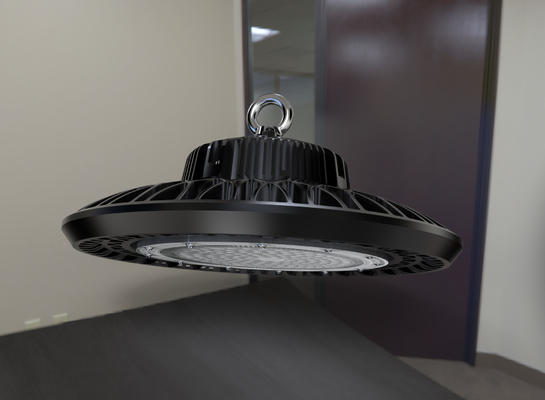

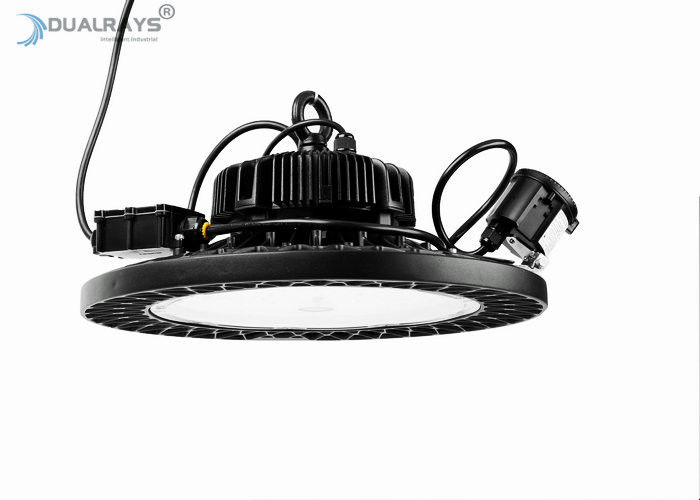

Durable 240 Watt UFO LED High Bay Light 8-15 Meters High Installation Height
UFO LED High Bay Features:
* Robust die-cast aluminum luminaire body painted in epoxy powder coating in black;
* High output lighting efficiency 130-140LPW;
* CE,RoHS listed,5 years warranty;
* With high-strength tempered glass and die-casting Aluminum shell, high shock-proof level IK08;
* IP65 and IK10 for all industrial areas of application;
* Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen.
Advantages:
* Powerful production capacity and QC management system;
* Excellent experience for distributors, wholesales and contractor from Western Europe and Oceania;
* Our service and products are recognized from famous enterprises such as Jalasoft, Mercedes-Benz, Rewe, Nahkauf, Hagebau,etc.
* All products comply at least 3 years;
Item No.
|
DR-HB240-EG1
|
Housing color
|
Black
|
Input Voltage
|
AC90-305V 50/60HZ
|
CRI
|
>80
|
Power
|
240W
|
IP Ranking
|
IP65
|
Working Temp
|
-40 to +50℃
|
Power Factor (PF)
|
>0.95
|
Luminous Flux
|
33,600lm
|
Material
|
Die-Casting Aluminum
|
> Shipyards;
> Mines;
> Workshops;
> Warehouse;
> Highway toll stations;
> Gas stations;
> Supermarkets;
> Exhibition center;
Character/Power
|
100W
|
150W
|
200W
|
240W
|
|
A
|
Ø350mm
|
Ø350mm
|
Ø420mm
|
Ø420mm
|
|
B
|
210mm
|
210mm
|
220mm
|
220mm
|
Q1.What’s the meaning of “Beam Angle “?
RE: The spread of light from a luminaire. For example: a fitting such as a low bay ,which is closer to the floor,will have a wider beam angle to illuminate a given floor area while a high bay fitting will have a narrower beam.
Q2.How to explain “Flux/luminous Flux “?
RE: Luminous flux is the measure of the perceived power of light produced by the LED, adjusting to reflect the varying sensitivity of the human eye to different wavelengths of light.
Q3.What’s efficacy about the light ?
RE: The light output of a light source divided by the total electrical power input to that source, expressed in lumens per watt(lm/w).
Q4.What’s LGP(PMMA)?
RE: A key component to maximize the uniformity of light, to make the backlight slim and to reorient the line or dot light source such as LED to the plate light source.
Q5.How to explain “ZigBee“ ?
RE: A low -power ,low date rate, local area wireless network; ideal for lighting control.
Q6. What are the certificates you have currently?
RE: All of our LED luminaires comply with CE,RoHS standards,and for the leading products,it is also TUV,ENEC,VDE,SAA,C-Tick,LM79,LM80,CB listed
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
