| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-SPL300-DGX |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 Bussiness Day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000PCS/Month |
| Rated Wattage: | 300W | Chips: | Lumileds 3030 |
|---|---|---|---|
| PF: | >0.96 | Life Span: | 50000Hrs |
| Housing: | Die-Casting Al | IP Grade: | IP66 |
| High Light: | outdoor led flood lights,waterproof led flood lights |
||

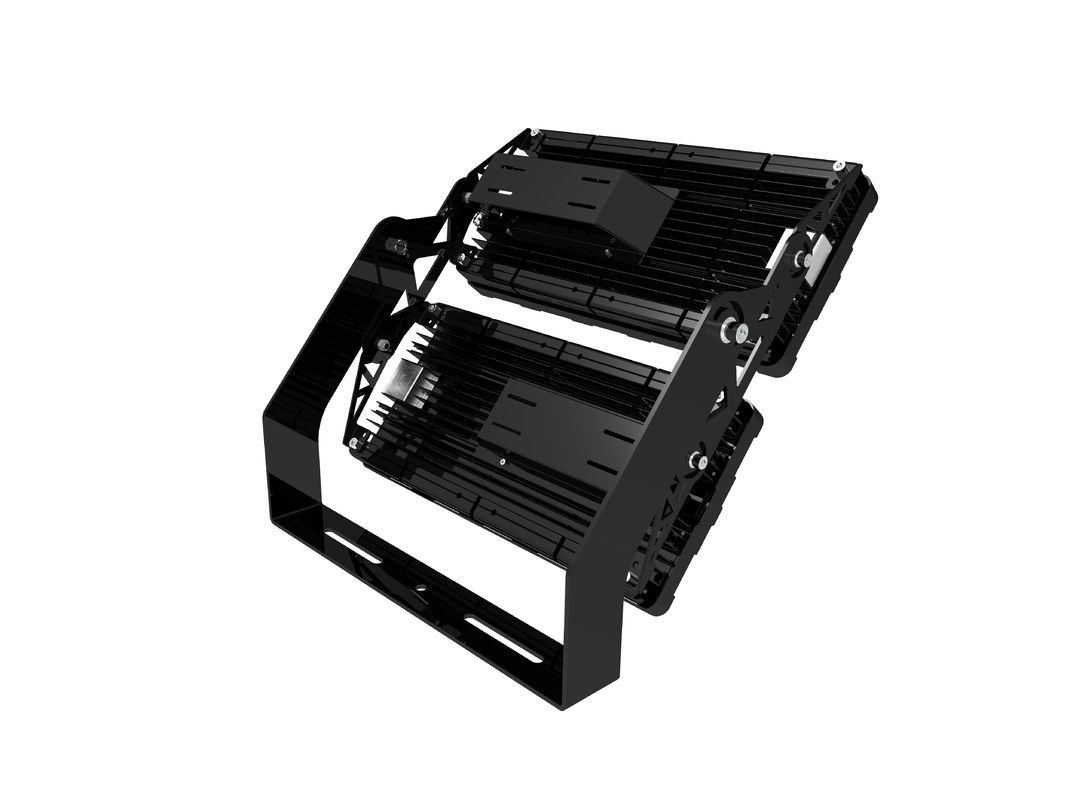

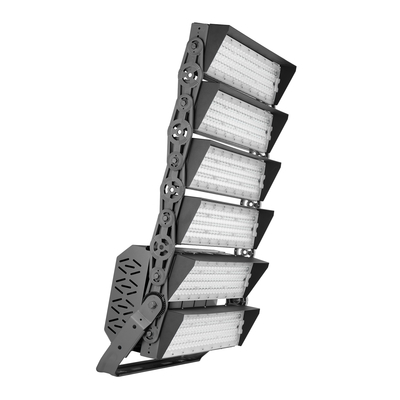

300 Watt Led Outdoor Sports Lighting Led Modular Flood lights For Tennis Courts
|
Model No.
|
DR-SPL300-DGXX | DR-SPL600-DGXX | DR-SPL900-DGXX | DR-SPL1200-DGXX | DR-SPL1500-DGXX | DR-SPL1800-DGXX |
|
System Watts/W
|
300W | 600W | 900W | 1200W | 1500W |
1800W
|
|
System Efficiency/LPW
|
130~140LPW / 150~160LPW Optional | |||||
|
Lumen Output (Max) /lm
|
48.000±5% | 96.000±5% | 144.000±5% | 192.000±5% | 240.000±5% | 288.000±5% |
|
Rated Input Voltage/V
|
AC200~240V, 50/60Hz | |||||
|
LEDs Light Source
|
SMD3030 / SMD5050 | |||||
|
SDCM
|
<5 | |||||
|
CCT/K
|
5000K for Standard (3000K/4000K/5700K/6500K Optional) | |||||
|
CRI/Ra
|
>70Ra (>80Ra for Option) | |||||
|
Power Factor
|
>0.95 | |||||
|
THD
|
<10% | |||||
|
Beam Angle(Optional)
|
Symmetrical 25°/40°/50°/90° beam angle optional | |||||
|
UGR
|
<25 | |||||
|
Surge Protection
|
4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional | |||||
|
LED Driver
|
Meanwell ELG/HLG | |||||
|
IP Rating
|
IP65 | |||||
|
Dimming(Optional)
|
1-10V, DALI,PWM,Zigbee | |||||
| Safety Protection | Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection | |||||
| Start Time | 0.5s | |||||
|
Protection Class
|
ClassⅠ | |||||
|
Finishing Color(Optional)
|
Black RAL9017(Standard) / White RAL9016 Optional | |||||
|
Material
|
Aluminum+PC | |||||
|
Lifespan/hrs
|
70.000 Hrs (Ta=30℃@L70) | |||||
|
Operation Temp/℃
|
40°C to + 50°C(-40°F to 122°F) | |||||
|
Storage Temp/℃
|
- 40°C to + 65°C(-40°F to 149°F) | |||||
| Switching Cycles | 100,000 Times | |||||
|
Certificate
|
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available | |||||
|
Model No.
|
Net Weight/Kg
|
Outer Carton Size/mm
|
Gross Weight/Kg
|
QTY”/CTN
|
|
DR-SPL300-DGXX
|
8.5
|
585*315*260
|
9.7
|
1PCS/CTN
|
|
DR-SPL600-DGXX
|
17.4
|
625*620*260
|
18.8
|
1PCS/CTN
|
|
DR-SPL900-DGXX
|
26.1
|
625*820*260
|
28.2
|
1PCS/CTN
|
|
DR-SPL1200-DGXX
|
34.2
|
625*1150*260
|
36.5
|
1PCS/CTN
|
|
DR-SPL1500-DGXX
|
39.3
|
790*1240*260
|
42.5
|
1PCS/CTN
|
|
DR-SPL1800-DGXX
|
42.1
|
790*1240*260
|
46.3
|
1PCS/CTN
|
