Dualrays HB3 200W 2020 Hot Sale IP65 Rating UFO LED High Bay Light 140 LPW Efficiency For Highway Toll Stations

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB200-CG2

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	Negotiable
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

IP/Rating:	IP65	PF:	PF>0.95
Warranty:	5 Years	CCT/K:	3000K-6500K
Degree:	60°/90°/120º	Efficiency:	140 LPW
High Light:	led flat panel light fixture , wireless led outdoor flood lights

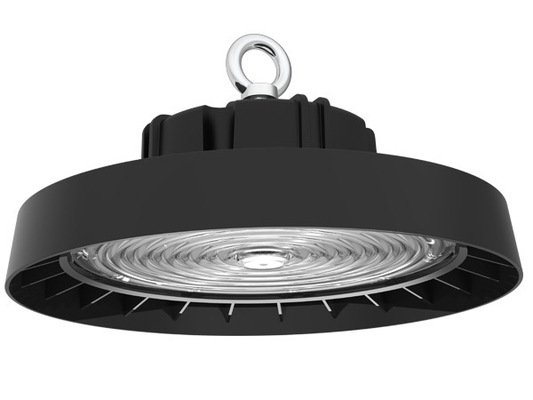

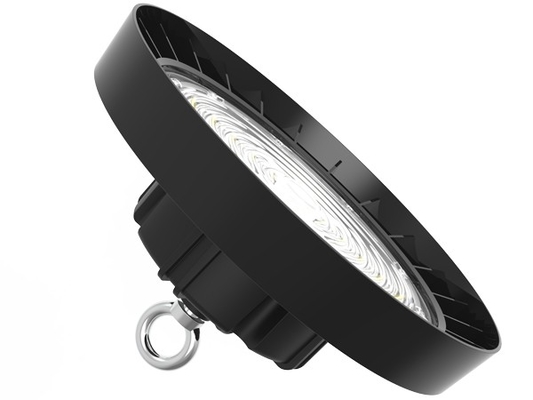

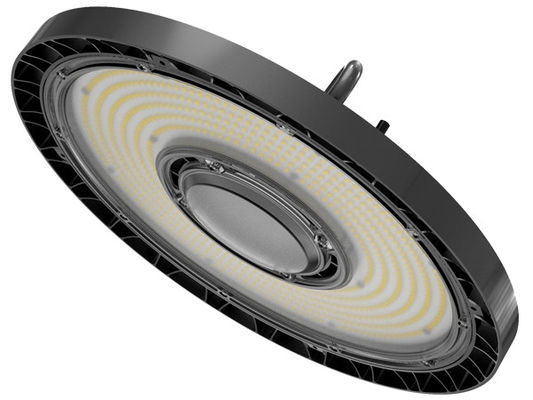

Dualrays HB3 200W 2020 Hot Sale IP65 Rating UFO LED High Bay Light 140 LPW Efficiency For Highway Toll Stations

Dualrays HB3 200W 2020 Hot Sale IP65 Rating UFO LED High Bay Light 140 LPW Efficiency For Highway Toll Stations 1

Dualrays HB3 200W UFO LED High Bay Light--Data Sheet

Item No.	DR-HB200-CG2	Driving Brand	Meanwell/Sosen
Input Voltage	AC100-277V 50/60HZ	CRI	>80
Power	200W	IP Ranking	IP65
Working Temp	-40 to +50℃	Power Factor (PF)	＞0.9
Warranty	5 years	Material	AL+PMMA
LED QTY	364PCS	Light Source	SMD3030
CCT	2700-6500K	Certificate	CE, RoHS,

Dualrays HB3 200W UFO LED High Bay Light-- Feature:

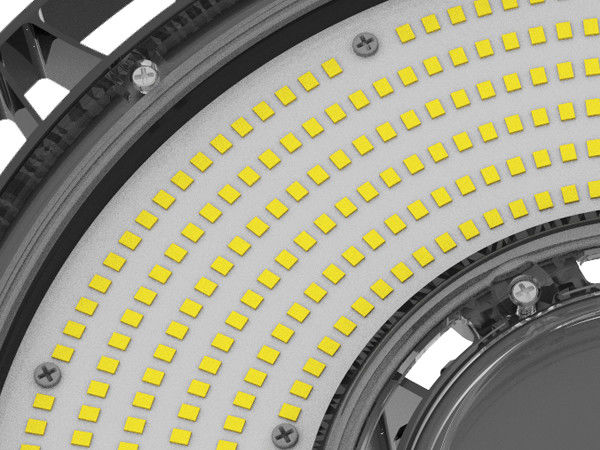

> Highly brightness SAN‘AN SMD3030 LEDs,energy efficient - up to 140 lm/w;

> Die-casting Al for excellent heat dissipation;

> Superior PC reflector-optic for low glare applications;

> IP65 and IK08 for all industrial areas of application;

> DUALRAYS own-developed built-in driver,slim design,compact and durable;

> D-Mark tested for the use in paper production, wood processing etc;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

Dualrays HB3 200W UFO LED High Bay Light--Options:

> Driver: DUALRAYS Own-developed built-in driver,slim design,durable and compact.

> Controls and Dimming

·Zigbee wireless control / 1-10V Dimming / Daylight sensor.

> Reflector : PC reflector with / without cover.pipe mounting.

> Installation: loop hanging, ceiling mounting, wall mounting,

> Customized supported for special projects.

> Factories / Warehouses /Workshops

> Exhibitions & showrooms

> Barns and riding halls

> High rooms and halls

> Traditional lamp replacement

Character/Power	100W	150W	200W
A	Ø322mm	Ø322mm	Ø322mm
B	128mm	128mm	128mm

DALI Device
Dualrays HB3 200W 2020 Hot Sale IP65 Rating UFO LED High Bay Light 140 LPW Efficiency For Highway Toll Stations 16

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

Dualrays 50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
