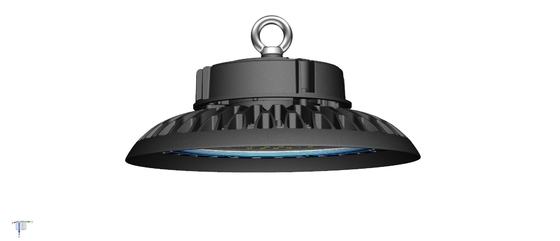

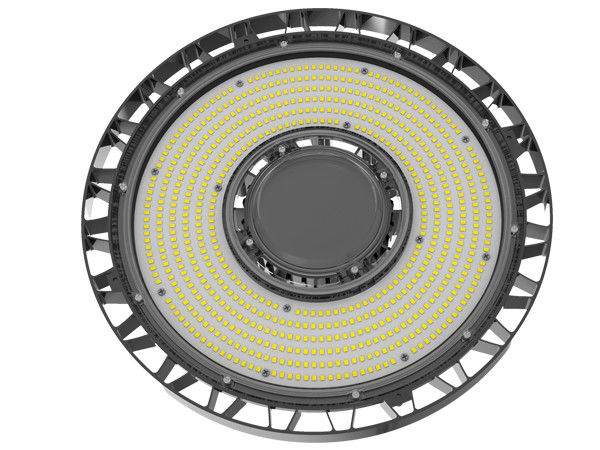

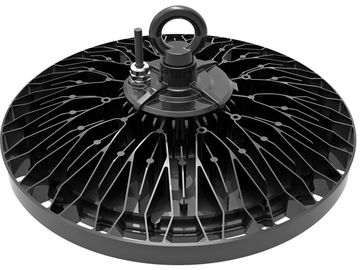

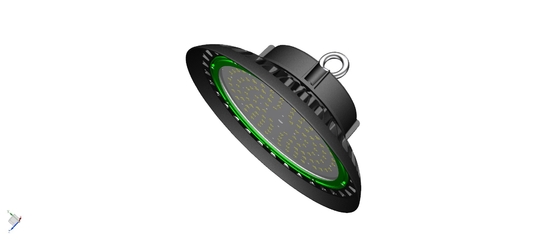

Dualrays 200W HB3 LED UFO High Bay Light Eco Built in Driver 5 Years Warranty

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB200-CG2

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	Negotiated
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Power:	200W	Beam Angle:	60°/90°/120º
Warranty:	5 Years	Operation Temperature:	-40 ~ +55℃
Dimming Function:	1-10VDC /DALI / PIR Sensor	Driver:	DUALRAYS Own-developed Built-in Driver
High Light:	led flat panel light fixture , wireless led outdoor flood lights

Dualrays 200W HB3 LED UFO High Bay Light Eco Built-in Driver 5 Years Warranty

Dualrays 200W HB3 LED UFO High Bay Light Eco Built in Driver 5 Years Warranty 1

Dualrays 200W HB3 UFO LED High Bay Light--Data Sheet

Item No.	DR-HB200-CG2	LED Driving	DUALRAYS own-developed built-in driver
Input Voltage	AC100-277V 50/60HZ	CRI	>80
Power	200W	IP Ranking	IP65
Working Temp	-40 to +50℃	Power Factor (PF)	＞0.9
Warranty	5 years	Material	AL+PMMA
Beam Angle	60°/90°/120º	LED Efficiency	140LPW
CCT	2700-6500K	Certificate	CE, RoHS

Dualrays 200W HB3 UFO LED High Bay Light-- Feature:

> Highly brightness SAN‘AN SMD3030 LEDs,energy efficient - up to 140 lm/w;

> Die-casting Al for excellent heat dissipation;

> Superior PC reflector-optic for low glare applications;

> IP65 and IK08 for all industrial areas of application;

> DUALRAYS own-developed built-in driver,slim design,compact and durable;

> Adjustable ripple-lens optic with 60°/90°/120° beam angle;

> D-Mark tested for the use in paper production, wood processing etc;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty;

Dualrays 200W HB3 UFO LED High Bay Light--Options:

> Driver: DUALRAYS Own-developed built-in driver,slim design,durable and compact.

> Controls and Dimming Zigbee wireless control / 1-10V Dimming / Daylight sensor.

> Reflector : PC reflector with / without cover.pipe mounting.

> Installation: loop hanging, ceiling mounting, wall mounting,

> Customized supported for special projects.

> Factories / Warehouses /Workshops

> Exhibitions & showrooms

> Barns and riding halls

> High rooms and halls

> Traditional lamp replacement

Character/Power	100W	150W	200W
A	Ø322mm	Ø322mm	Ø322mm
B	128mm	128mm	128mm

DALI Device
Dualrays 200W HB3 LED UFO High Bay Light Eco Built in Driver 5 Years Warranty 16

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface
