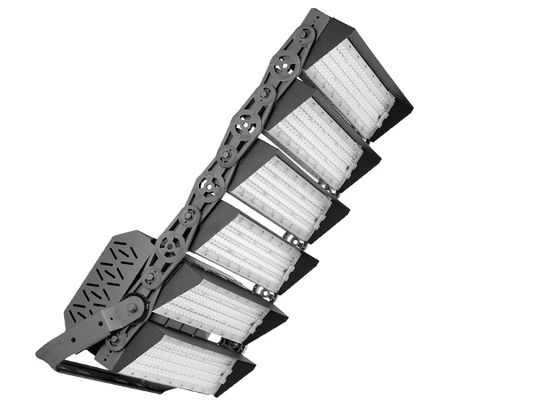

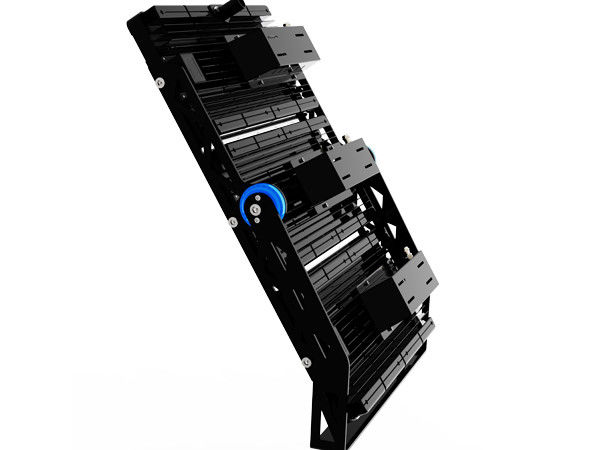

Name: Ip66 1500W High Mast LED Flood Lights Salt Mist Resitant SAA,RCM CE ROHS SMD5050
Brand: DUALRAYS
SKU: DR-FL1200-EG1
Price: 1.00 USD
Availability: InStock
Rating: 5 (108 reviews)

Home Products LED Sports Ground Floodlights

Ip66 1500W High Mast LED Flood Lights Salt Mist Resitant SAA,RCM CE ROHS SMD5050

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-FL1200-EG1

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiable

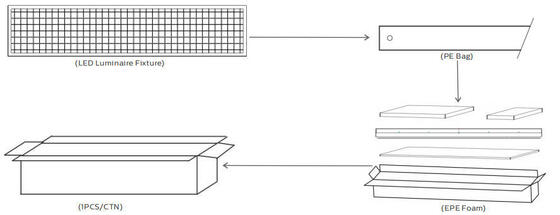

Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Rated Input Voltage/V:	AC100~277V, 50/60Hz	IP Grade:	IP66
PF:	>0.96	Driver:	Meanwell/SoSen
CRI:	>80Ra	Installation:	Bracket
LEDs Light Source:	SMD5050	CCT/K:	5000K For Standard (3000K/4000K/5700K/6500K Optional)
Beam Angle(Optional):	20°/40°/60°/90°/140*60° Optional
High Light:	industrial high bay led lighting , led stadium floodlights

Ip66 1500W High Mast LED Flood Lights Salt Mist Resitant SAA,RCM CE ROHS SMD5050

Options:

> Driver: Meanwell ELG/HLG driver;

> Controls and Dimming: 1-10V, DALI,PWM,Zigbee;

> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;

> Lens : Symmetrical 25°/40°/50°/90°;
> Efficiency : 130~140LPW,150~160LPW

> Aiming Device: Laser Pointer;
> Light Glare: Shield;

> Multiple and multipurpose sports facilities and arenas

> Stadiums and Racing tracks

> Public squares

> Outdoor arenas

> Indoor sports arenas and halls

Model No.	DR-SPL300-DGXX	DR-SPL600-DGXX	DR-SPL900-DGXX	DR-SPL1200-DGXX	DR-SPL1500-DGXX	DR-SPL1800-DGXX
System Watts/W	300W	600W	900W	1200W	1500W	1800W
System Efficiency/LPW	130~140LPW / 150~160LPW Optional
Lumen Output (Max) /lm	48.000±5%	96.000±5%	144.000±5%	192.000±5%	240.000±5%	288.000±5%
Rated Input Voltage/V	AC200~240V, 50/60Hz
LEDs Light Source	SMD3030 / SMD5050
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%

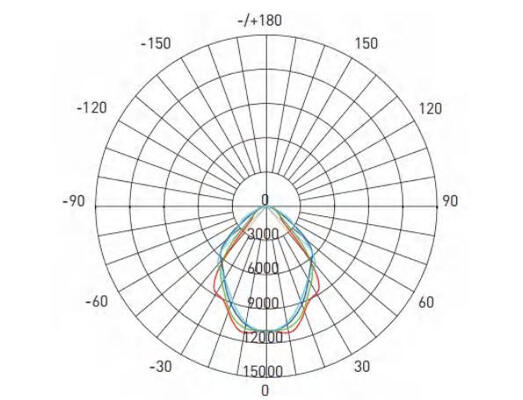

Beam Angle(Optional)	Symmetrical 25°/40°/50°/90° beam angle optional
UGR	<25
Surge Protection	4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Meanwell ELG/HLG
IP Rating	IP65
Dimming(Optional)	1-10V, DALI,PWM,Zigbee
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time	0.5s
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC
Lifespan/hrs	70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	100,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-SPL300-DGXX	8.5	585315260	9.7	1PCS/CTN
DR-SPL600-DGXX	17.4	625620260	18.8	1PCS/CTN
DR-SPL900-DGXX	26.1	625820260	28.2	1PCS/CTN
DR-SPL1200-DGXX	34.2	6251150260	36.5	1PCS/CTN
DR-SPL1500-DGXX	39.3	7901240260	42.5	1PCS/CTN
DR-SPL1800-DGXX	42.1	7901240260	46.3	1PCS/CTN
