Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-SPL300-FG2
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiable
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 Bussiness Day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000PCS/Month
Contact Now
Detailed Product Description
Rated Wattage: 300W Input: AC90~305V
Efficiency: 140lm/W Life Span: 50 000hrs
Beam: 30°/60°/90° CCT: 3000-6500K
High Light:

outdoor led flood lights

,

led yard flood lights

300W Outdoor Tennis Courts Led Flood Lights IP 65 Waterproof High Output Lighting Efficiency



Outdoor Soccer Field LED Stadium Floodlights Playground Lighting 500W 150LPW Efficiency

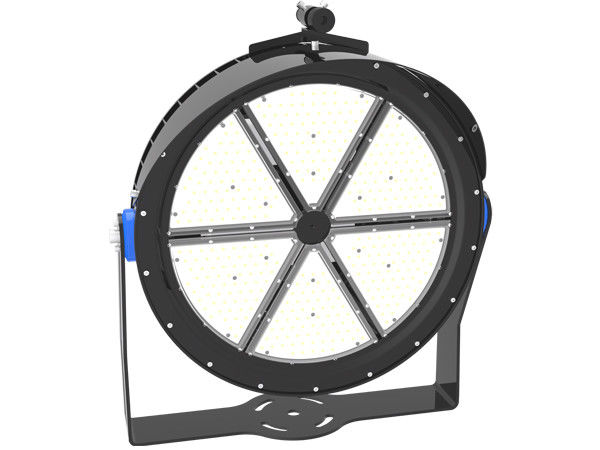

Private Modular LED Sports Ground Flood Lights Laser Pointer 5 Years Warranty With CE ROHS SAA 1
* Aiming device Laser Pointer;
* 30°/60°/90° beam angle for options;
* 400W 45000lm, for 800W MHL equivalent;
* ±360° adjustable bracket;
* TM21(L80>50000hrs);

Outdoor Soccer Field LED Stadium Floodlights Playground Lighting 500W 150LPW Efficiency
Model No. DR-SPL300-FGXP DR-SPL400-FGXP DR-SPL600-FGXP DR-SPL800-FGXP
System Watts/W 300W 400W 600W 800W
System Efficiency/LPW 150LPW
Lumen Output/lm 45.000±5% 60.000±5% 90.000±5% 120.000±5%
Rated Input Voltage/V AC100~277V, 50/60Hz
LEDs Light Source SMD5050
SDCM <5
CCT/K 5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra >70Ra (>80Ra for Option)
Power Factor >0.95
THD <10%
Beam Angle(Optional) 30°/60°/90°
UGR <25
Surge Protection 4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver Meanwell ELG / HLG Optional
IP Rating IP65
Dimming(Optional) 1-10V, DALI,PWM,Zigbee for Option
Safety Protection Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time 0.5s
Protection Class ClassⅠ
Finishing Color(Optional) Black RAL9017(Standard) / White RAL9016 Optional
Material Aluminum+PC
Lifespan/hrs 70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃ 40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃ - 40°C to + 65°C(-40°F to 149°F)
Switching Cycles 100,000 Times
Certificate CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available
Outdoor Soccer Field LED Stadium Floodlights Playground Lighting 500W 150LPW Efficiency
Character/Power
300W
400W
600W
800W
Private Modular LED Sports Ground Flood Lights Laser Pointer 5 Years Warranty With CE ROHS SAA 4Private Modular LED Sports Ground Flood Lights Laser Pointer 5 Years Warranty With CE ROHS SAA 5
A / mm
Ø445
Ø445
Ø537
Ø537
B / mm
321
321
373
373

400 Watt Led Outdoor Sports Lighting Led Modular Flood lights For Tennis Courts
Private Modular LED Sports Ground Flood Lights Laser Pointer 5 Years Warranty With CE ROHS SAA 7


400 Watt Led Outdoor Sports Lighting Led Modular Flood lights For Tennis Courts
Private Modular LED Sports Ground Flood Lights Laser Pointer 5 Years Warranty With CE ROHS SAA 9
400 Watt Led Outdoor Sports Lighting Led Modular Flood lights For Tennis Courts

400 Watt Led Outdoor Sports Lighting Led Modular Flood lights For Tennis Courts
Private Modular LED Sports Ground Flood Lights Laser Pointer 5 Years Warranty With CE ROHS SAA 12

Private Modular LED Sports Ground Flood Lights Laser Pointer 5 Years Warranty With CE ROHS SAA 13

Private Modular LED Sports Ground Flood Lights Laser Pointer 5 Years Warranty With CE ROHS SAA 14

Private Modular LED Sports Ground Flood Lights Laser Pointer 5 Years Warranty With CE ROHS SAA 15

Model No.
Net Weight/Kg
Outer Carton Size/mm
Gross Weight/Kg
QTY”/CTN
DR-SPL300-FGXP
12.4
610*510*250
13.8
1PCS/CTN
DR-SPL400-FGXP
12.9
610*510*250
14.7
1PCS/CTN
DR-SPL600-FGXP
25.3
890*710*275
27.6
1PCS/CTN
DR-SPL800-FGXP 25.9 890*710*275 28.8
1PCS/CTN


Private Modular LED Sports Ground Flood Lights Laser Pointer 5 Years Warranty With CE ROHS SAA 16
Private Modular LED Sports Ground Flood Lights Laser Pointer 5 Years Warranty With CE ROHS SAA 17

Private Modular LED Sports Ground Flood Lights Laser Pointer 5 Years Warranty With CE ROHS SAA 18


Private Modular LED Sports Ground Flood Lights Laser Pointer 5 Years Warranty With CE ROHS SAA 19
